etasolution

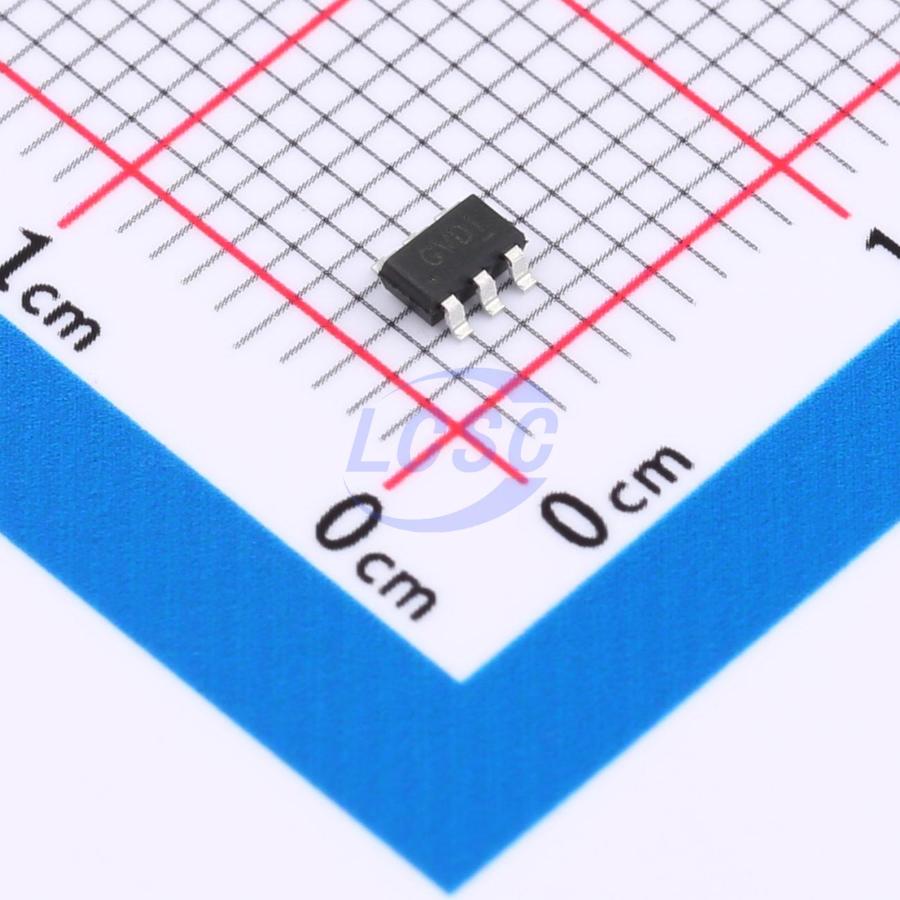

ETA1611S2G

1MHz Boost Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS CompliantActive

High Efficiency 2A 22V Step-Up Regulator

Manufacturer: etasolution
Manufacturer part #: ETA1611S2G
Store part #: C22362740
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,925 in stock

#C22362740

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹22.82	₹114.10
50+	₹18.10	₹905.00
150+	₹16.07	₹2,410.50
500+	₹13.54	₹6,770.00
3,000+	₹12.42	₹37,260.00
6,000+	₹11.74	₹70,440.00

Quantity (min 5, multiples of 5)

5 × ₹22.82

₹114.10

excl. GST

₹134.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA1611S2G

₹114.10 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
Frequency - Switching: 1MHz
Function: Boost
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.7V~6V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 250uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.052 g

Overview

The ETA1611 is a high efficiency step-up converter with an internally integrated 22V power MOSEFT. It runs with an optimal 1MHz frequency that enables the use of small external components while still providing the best efficiency. It can drive up to 2A output current. The incorporated true PWM-Diming feature through EN pin enable one further digitally program the output voltage lower. For maximum protection, the ETA1611 has an OVP protection feature that prevents the output voltage exceeding the maximum rating of the ETA1611 and the output cap during open conditions. ETA1611 is available in a space-saving SOT23-6 package.
