etasolution

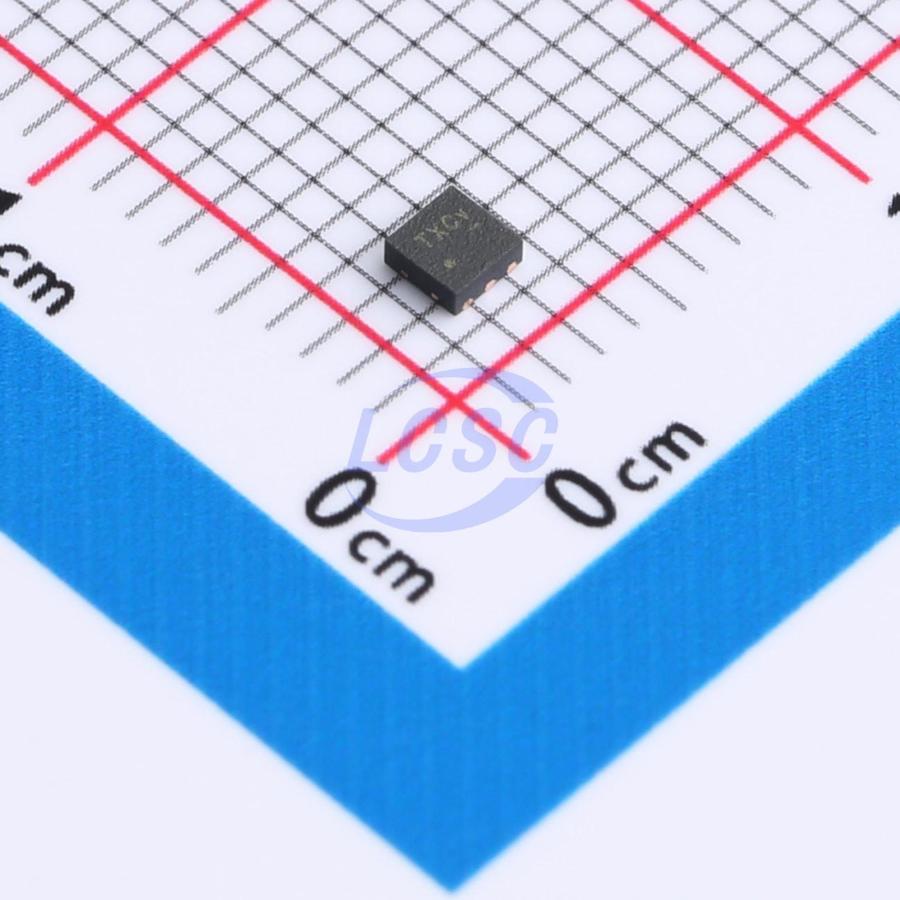

ETA1656D2G

600kHz Step-down type Adjustable 600mV~5V 5A DFN-6(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-6(2x2)ROHS CompliantActive

18V, 5A, High Efficiency Synchronous Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA1656D2G
Store part #: C22362749
Package / case: DFN-6(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,465 in stock

#C22362749

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹76.43	₹76.43
10+	₹61.32	₹613.20
30+	₹53.98	₹1,619.40
100+	₹46.64	₹4,664.00
500+	₹42.10	₹21,050.00
1,000+	₹39.73	₹39,730.00

Quantity (min 1)

1 × ₹76.43

₹76.43

excl. GST

₹90.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA1656D2G

₹76.43 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 600kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5V
Output Current: 5A
Quiescent Current: 230uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

ETA1656 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 5A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load. During light load, ETA1656 goes into a PFM mode that saves switching loss achieving high efficiency. The adaptive COT control also maintains a constant switching frequency across line and load. An OVP function protects the IC itself and its downstream system against input voltage surges. ETA1656 is available in a DFN2x2-6 package.
