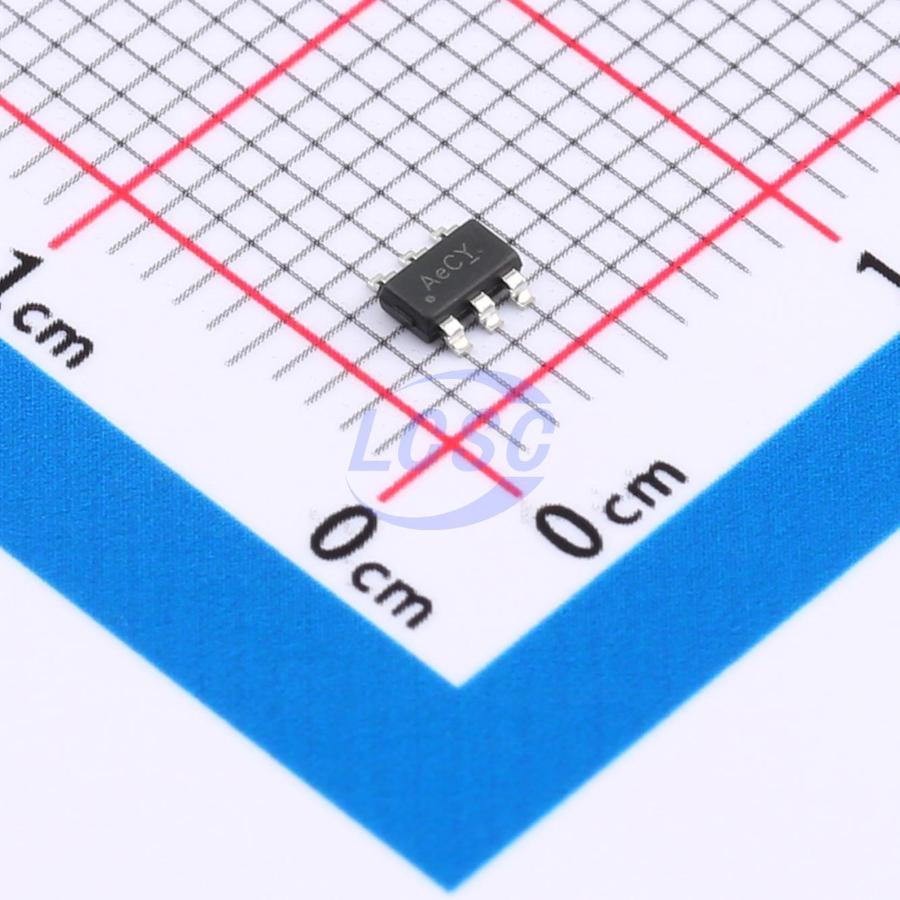

ETA2807FT2G
250kHz Step-down type Adjustable 800mV~35V 3A FCTSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
FCTSOT-23-6ROHS CompliantActive
35V/3A Synchronous Step-Down Converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA2807FT2G
- Store part #
- C22362744
- Package / case
- FCTSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,186 in stock
#C22362744
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.79 | ₹57.79 |
| 10+ | ₹45.15 | ₹451.50 |
| 30+ | ₹39.73 | ₹1,191.90 |
| 100+ | ₹32.87 | ₹3,287.00 |
| 500+ | ₹29.99 | ₹14,995.00 |
| 1,000+ | ₹28.17 | ₹28,170.00 |
1 × ₹57.79
₹57.79
excl. GST
₹68.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA2807FT2G
₹57.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 250kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Cable compensation;Cycle-by-cycle current limiting;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.6V~35V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~35V
- Output Current
- 3A
- Quiescent Current
- 460uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The ETA2807 is a high-efficiency DC-to-DC step-down switching regulator that is capable of delivering up to 3A of output current. The device operates with wide input voltage range from 4.6V to 35V, making it ideal for high voltage USB charging applications. The ETA2807 uses a constant current mode architecture. It includes constant current(CC)/ constant voltage(CV) output regulation and output cord compensation, making it a perfect solution for car charger application. ETA2807 is available in FCTSOT23-6 package.
Applications
- Car Chargers
- Industrial Applications
- Automotive Applications
Key features
- Wide Input Voltage Range: 4.6V - 35V
- 40V Input Standoff Voltage
- High Efficiency PFM Mode at Light Load
- Capable of Delivering 3A Output Current
- 100% Duty Cycle
- Support CC/CV Output
- Cord Compensation Function
- Current Mode Control
- Thermal Shutdown and UVLO
- Available in FCTSOT23-6 Package
