etasolution

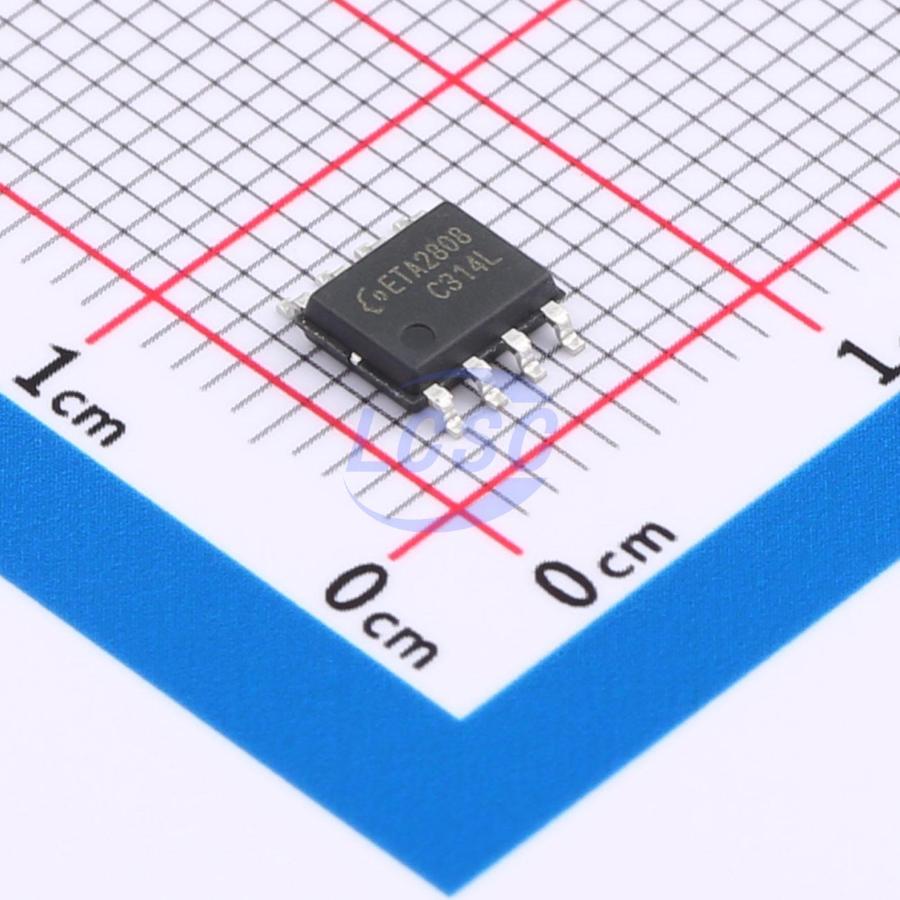

ETA2808E8A

Step-down type Adjustable 800mV~35V 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS

ESOP-8ROHS CompliantActive

35V/3A Synchronous Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA2808E8A
Store part #: C7465557
Package / case: ESOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17,498 in stock

#C7465557

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹61.22	₹61.22
10+	₹48.41	₹484.10
30+	₹42.76	₹1,282.80
100+	₹35.81	₹3,581.00
500+	₹32.78	₹16,390.00
1,000+	₹31.04	₹31,040.00

Quantity (min 1)

1 × ₹61.22

₹61.22

excl. GST

₹72.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

ETA2808E8A

₹61.22 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 250kHz;300kHz;500kHz
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Cable compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.6V~35V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~35V
Output Current: 3A
Quiescent Current: 500uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.166 g

Overview

The ETA2808 is a high-efficiency DC-to-DC step-down switching regulator that is capable of delivering up to 3A of output current. The device operates with wide input voltage range from 4.6V to 35V, making it ideal for high voltage USB charging applications. The ETA2808 uses a constant current mode architecture. It includes constant current (CC)/ constant voltage (CV) output regulation and output cord compensation. It also includes external programmable switching frequency for EMI optimization and external adjustable CC current limit setting, making it a perfect solution for car charger application. ETA2808 is available in ESOP8 package.
