etasolution

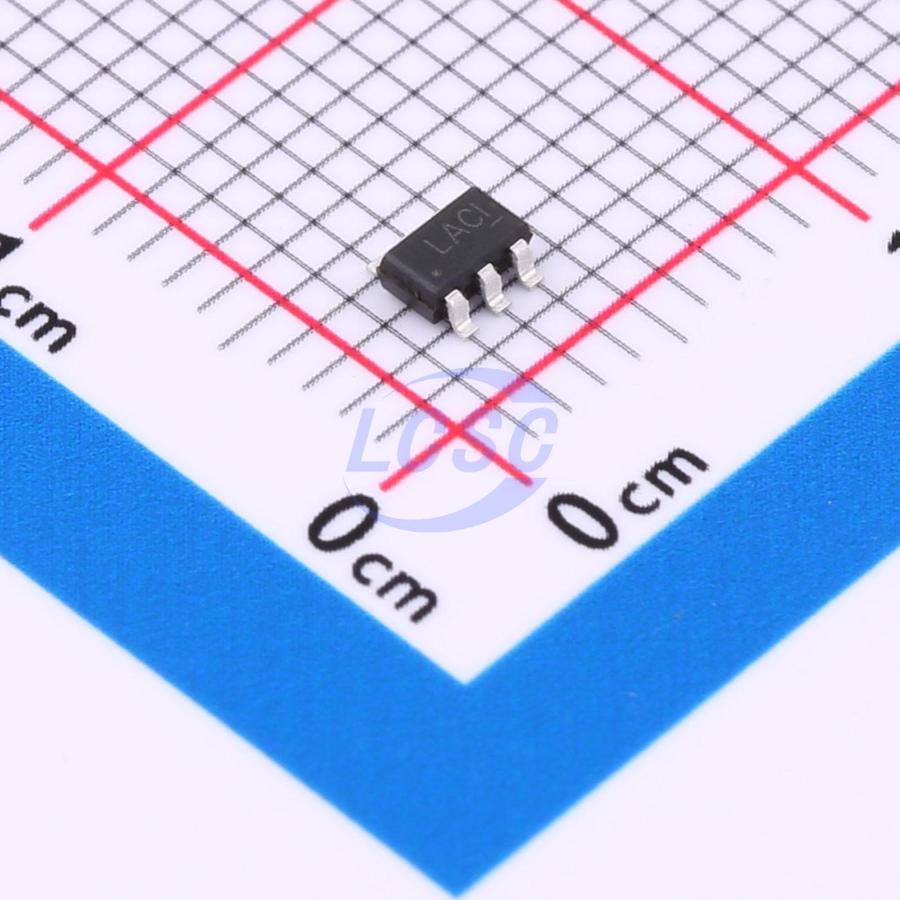

ETA2845S2G

700kHz Step-down type Adjustable 400mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS CompliantActive

Wide Input Range High-Efficiency Synchronous Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA2845S2G
Store part #: C22362741
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,925 in stock

#C22362741

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.73	₹118.65
50+	₹18.81	₹940.50
150+	₹16.71	₹2,506.50
500+	₹14.08	₹7,040.00
3,000+	₹12.91	₹38,730.00
6,000+	₹12.20	₹73,200.00

Quantity (min 5, multiples of 5)

5 × ₹23.73

₹118.65

excl. GST

₹140.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA2845S2G

₹118.65 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 700kHz
Function: Step-down type
Number of Outputs: 1
Features: Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 5V~38V
Switch tube (built-in/external): Built-in
Output Current: 400mA
Quiescent Current: 420uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

The ETA2845 is a wide input range, high-efficiency, synchronous step-down switching regulator, capable of delivering up to 0.4A of output current. With a fixed switching frequency of 700KHz, this current mode PWM controlled converter allows the use of small external components, such as ceramic input and output caps, as well as small inductors. ETA2845 also employs a proprietary control scheme that switches the device into a power save mode during light load, thereby extending the range of high efficiency operation. An OVP function protects the IC itself and its downstream system against input voltage surges. With this OVP function, the IC can stand off input voltage as high as 42V, making it an ideal solution for industrial applications such as smart meters as well as automotive applications.
