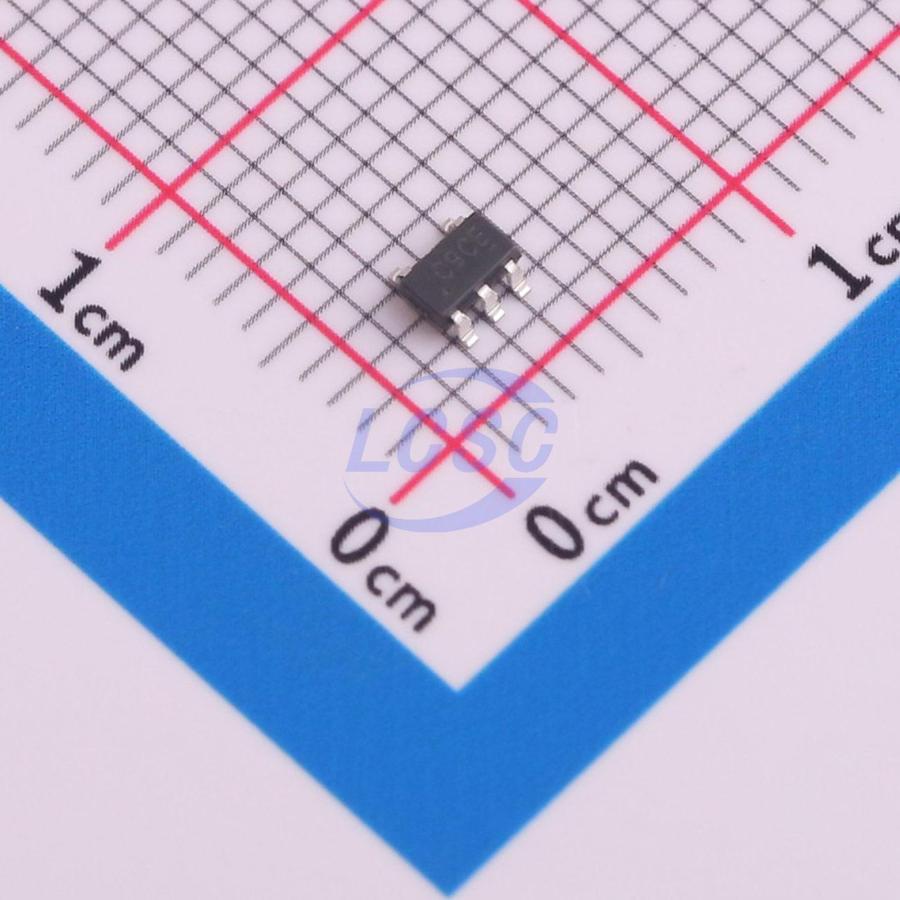

ETA3413S2F

The ETA3413 is a high-efficiency, DC-to-DC step-down switching regulator, work in force PWM mode, capable of delivering up to 2A of output current. The devices operate from an input voltage range of 2.6V to 5.5V and provide output voltages from 0.6V to VIN, making the ETA3413 ideal for low voltage power conversions. Running at a fixed frequency of 3MHz allows the use of small inductance value and low DCR inductors, thereby achieving higher eficiencies. Other external components, such as ceramic input and output caps, can also be small due to higher switching frequency, while maintaining exceptional low noise output voltages. Built-in EMI reduction circuitry makes this converter ideal power supply for RF applications. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protection improves design reliability The ETA3413 high effciencyswithing regulatorisasmall simle,DCto-DCste-down converer, work inforce PWM mode, capable f delivering up to 2A of output current. The device operates in pulse-width modulation (PWM) at 3MHz from a 2.6V to 5.5V input voltage and provides an output voltage from 0.6V toVIN,maing thTA341dealforon-board post-regulationapplicationsnnteynchr rectifier improves effciency and eliminates the typical Schottky free-wheeling diode. Using the on resistance of the internal high-side MOSFET to sense switching currents eliminates current-sense resistors, further improving efficiency and cost.

Applications

• USB ports/Hubs
• Portable Devices
• Cellphones
• Tablet PC
• Set Top Boxes

Key features

• Upto 96% Efficiency
• Force PWM mode
• Up to 2A Max output current
• 3MHz Frequency
• Internal Compensation
• Clock Dithering
• Tiny SOT23-5 Package
