etasolutionDatasheet (PDF)

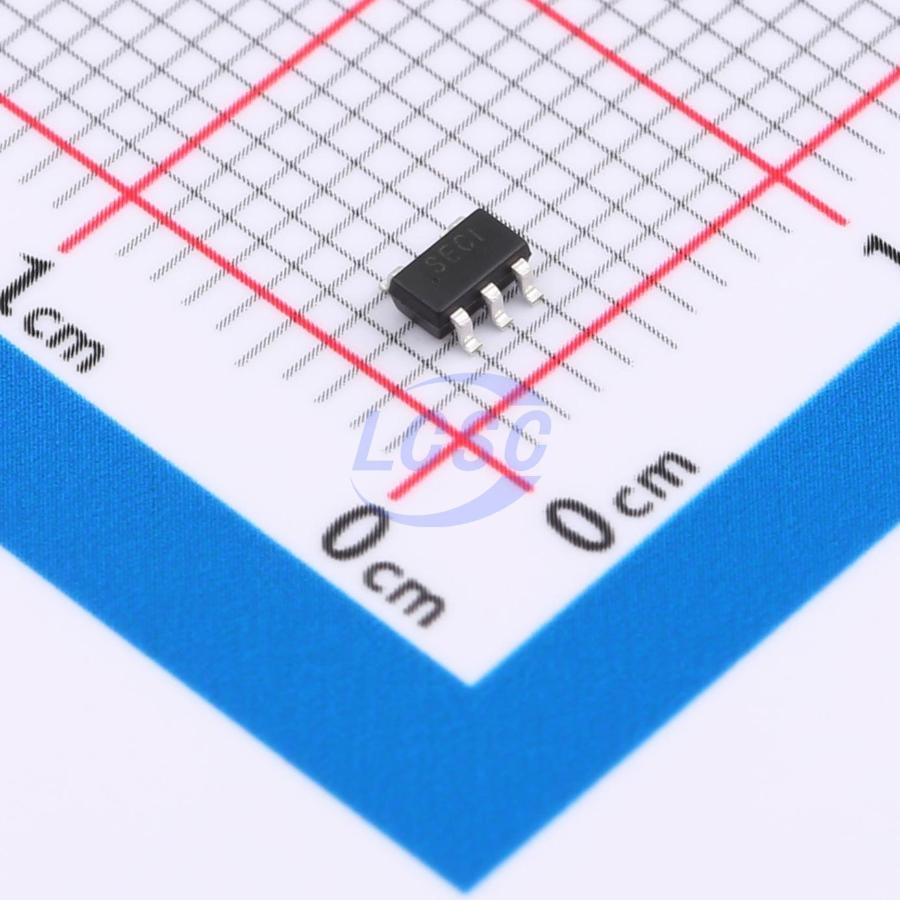

ETA3417S2F
Step-down type 3MHz Adjustable 600mV~7V 2.5A SOT23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT23-5ROHS CompliantActive
2.5A Continuous, 3A Peak, 3MHz Step-Down Converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA3417S2F
- Store part #
- C7465507
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45,920 in stock
#C7465507
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.09 | ₹80.45 |
| 50+ | ₹12.79 | ₹639.50 |
| 150+ | ₹11.14 | ₹1,671.00 |
| 500+ | ₹9.91 | ₹4,955.00 |
| 3,000+ | ₹8.92 | ₹26,760.00 |
| 6,000+ | ₹8.41 | ₹50,460.00 |
5 × ₹16.09
₹80.45
excl. GST
₹94.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA3417S2F
₹80.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 3MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;EMI optimization (spread spectrum)
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.6V~7V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~7V
- Output Current
- 2.5A
- Quiescent Current
- 32uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The ETA3417 high efficiency switching regulator is a DC-to-DC step-down converter, capable of delivering up to 2.5A of output current. The device operates in pulse-width modulation (PWM) at 3MHz from a 2.6V to 7.0V input voltage and provides an output voltage from 0.6V to VIN, making the ETA3417 ideal for on-board post-regulation applications. An internal synchronous rectifier improves efficiency and eliminates the typical Schottky free-wheeling diode. Using the on resistance of the internal high-side MOSFET to sense switching currents eliminates current-sense resistors, further improving efficiency and cost.
Applications
- LCD TV
- Set Top Box
- Telecom Devices
Key features
- Up to 96% Efficiency
- Up to 2.5A Continuous Output Current
- 3A Peak Output Current
- 3MHz Switching Frequency
- Light Load Operation
- Internal Compensation
- Tiny SOT23-5L Package
- Short-Circuit Protection
- Over-Temperature Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA3409S2F#C7465553etasolution · SOT23-5 | etasolution | SOT23-5 | 1,03,985 | ₹15.80 · 1,03,985 in stock | View |
 | ETA3418S2F#C7435411etasolution · SOT-23-5 | etasolution | SOT-23-5 | On request | Price on request | Quote |
