etasolution

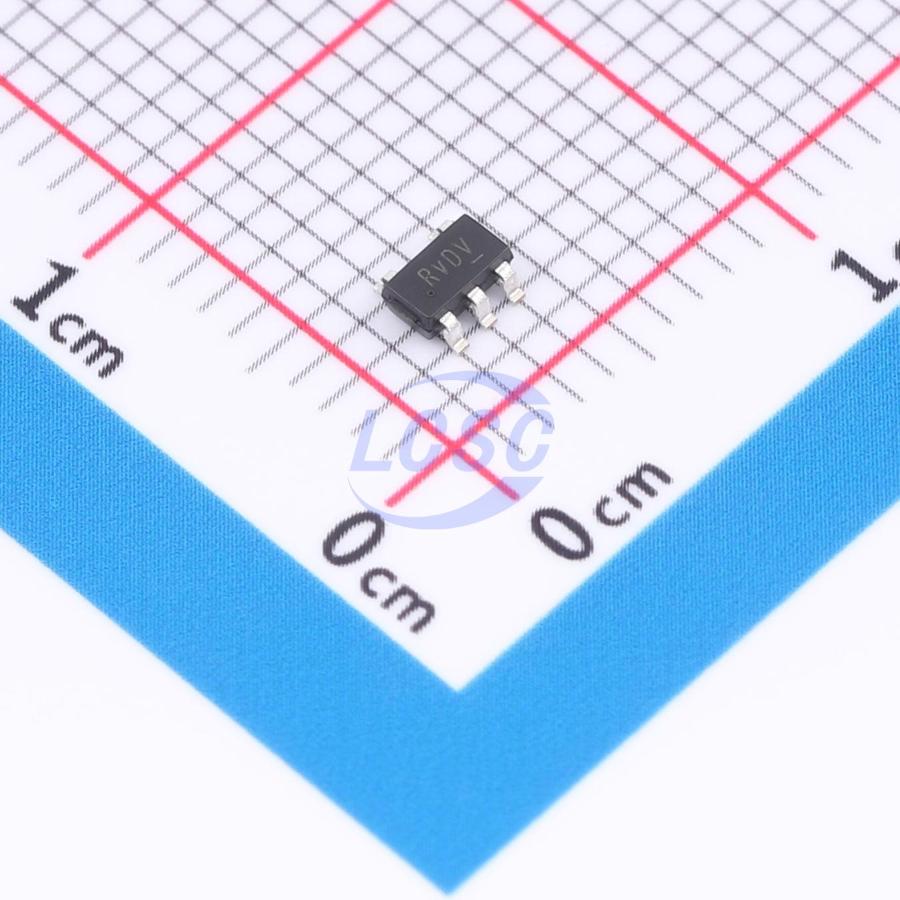

ETA3421BS2F

LED Driver IC DC-DC Buck PWM Dimming 1A SOT-23-5

SOT-23-5ROHS CompliantActive

1A, 1.5MHz Step-Down Constant Current, High Efficiency LED Driver

Manufacturer: etasolution
Manufacturer part #: ETA3421BS2F
Store part #: C46598158
Package / case: SOT-23-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,295 in stock

#C46598158

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.22	₹91.10
50+	₹14.37	₹718.50
150+	₹12.44	₹1,866.00
500+	₹10.99	₹5,495.00
3,000+	₹9.83	₹29,490.00
6,000+	₹9.25	₹55,500.00

Quantity (min 5, multiples of 5)

5 × ₹18.22

₹91.10

excl. GST

₹107.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA3421BS2F

₹91.10 for 5 + GST

Specifications

Frequency - Switching: 1.5MHz
Features: Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over Voltage Protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Topology: Buck
Type: DC-DC
Output Current: 1A
Voltage - Input(DC): 3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

ETA3421B is a high-efficiency DC-DC buck constant-current LED driver capable of delivering up to 1A output current. The device operates over an input voltage range of 3V to 5.5V and uses a 0.1V FB voltage for high efficiency. It operates at a fixed frequency of 1.5MHz, allowing the use of small inductance values and low DCR inductors for higher efficiency. Due to the higher switching frequency, other external components such as ceramic input and output capacitors can also use smaller sizes. A 20–100KHz true PWM dimming function via the EN pin enables digital programming of LED current. An internal soft-start control circuit reduces inrush current. Short-circuit and open-circuit LED protection improves design reliability. The ETA3421B is available in a compact SOT23-5 package.
