etasolution

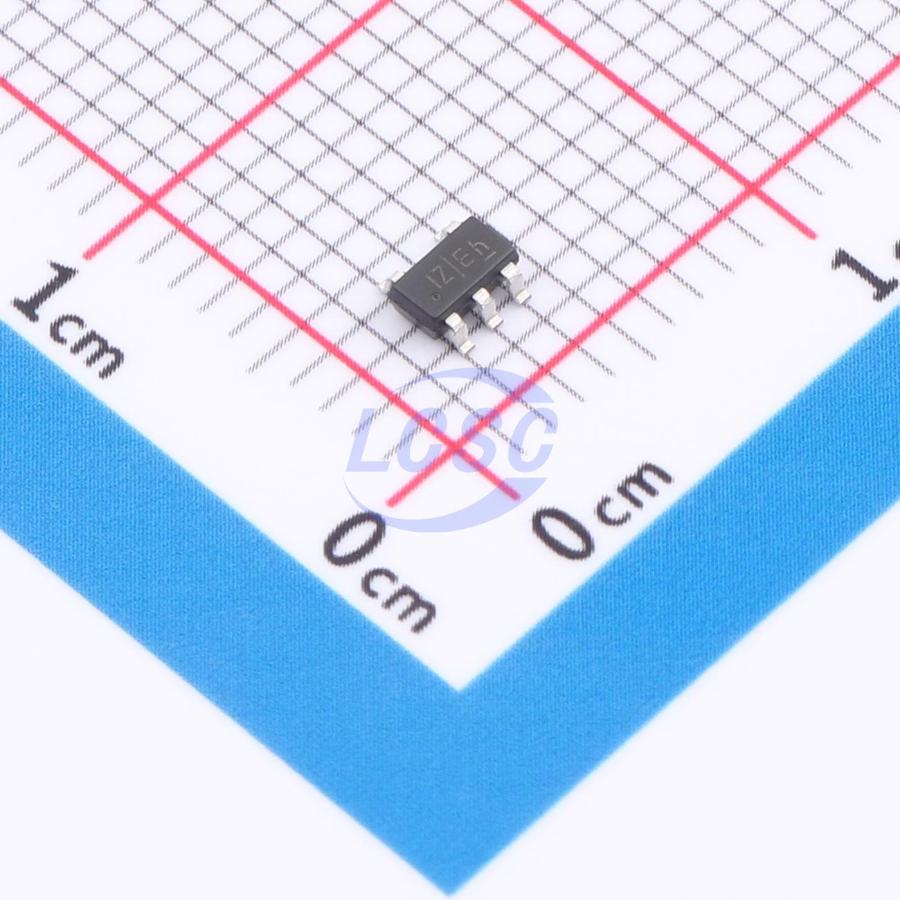

ETA3421S2F

1.5MHz Buck 1 DC-DC 700mA 3.3V~5.5V SOT23-5 LED Drivers ICs RoHS

SOT23-5ROHS CompliantActive

0.7A, 1.5MHz Step-Down Constant Current, High Efficiency LED Driver

Manufacturer: etasolution
Manufacturer part #: ETA3421S2F
Store part #: C7465558
Package / case: SOT23-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,760 in stock

#C7465558

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.78	₹143.90
50+	₹22.77	₹1,138.50
150+	₹20.19	₹3,028.50
500+	₹16.97	₹8,485.00
3,000+	₹15.55	₹46,650.00
6,000+	₹14.69	₹88,140.00

Quantity (min 5, multiples of 5)

5 × ₹28.78

₹143.90

excl. GST

₹169.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA3421S2F

₹143.90 for 5 + GST

Specifications

Features: Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over Voltage Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1.5MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 700mA
Voltage - Input(DC): 3.3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

The ETA3421 is a high-efficiency, DC-to-DC step-down constant current LED driver, capable of delivering up to 0.7A of output current. The device supports the input voltage range of 3.3V to 5.5V and FB voltage is only 0.1V to achieve high efficiency. The LED driver features 20 - 100KHz true PWM-Dimming by using EN pin to program the LED current digitally. The internal soft-start control circuitry reduces inrush current. Thermal shutdown, UVLO, short and open LED protection can ensure the reliability of design.
