etasolutionDatasheet (PDF)

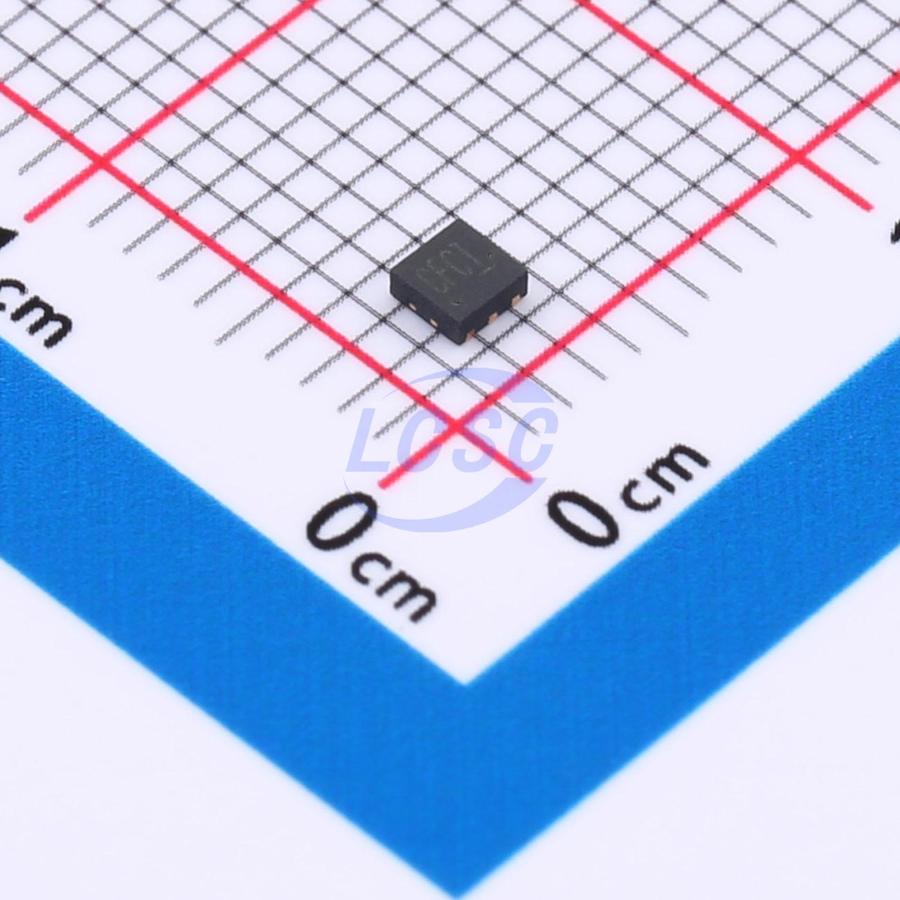

ETA3425D2G
Step-down type 1.4MHz Adjustable 1.11V~7V 600mA DFN2x2-6 Voltage Regulators - DC DC Switching Regulators RoHS
DFN2x2-6ROHS CompliantActive
1uA Ultra-Low Quiescent Current, 0.6A Output Synchronous BUCK
- Manufacturer
- etasolution
- Manufacturer part #
- ETA3425D2G
- Store part #
- C7465549
- Package / case
- DFN2x2-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C7465549
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.68 | ₹253.40 |
| 50+ | ₹39.73 | ₹1,986.50 |
| 150+ | ₹35.03 | ₹5,254.50 |
| 500+ | ₹29.17 | ₹14,585.00 |
| 3,000+ | ₹26.57 | ₹79,710.00 |
| 6,000+ | ₹25.00 | ₹1,50,000.00 |
5 × ₹50.68
₹253.40
excl. GST
₹299.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA3425D2G
₹253.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 1.4MHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.6V~7V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.11V~7V
- Output Current
- 600mA
- Quiescent Current
- 1.8uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
The ETA3425 is a high-efficiency, DC-to-DC stepdown switching regulator, capable of delivering up to 0.6A of output current. It has an ultra-low quiescent current 1uA when there is no load. Running at a fixed frequency of 1.4MHz allows the use of small inductance value and low DCR inductors, thereby achieving higher efficiencies. Other external components, such as ceramic input and output caps, can also be small due to higher switching frequency, while maintaining exceptional low noise output voltages. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protection improves design reliability.
Applications
- Wearable IOT
- Energy Harvest
- Battery powered devices
Key features
- Ultra low 1uA Iq, and 1 - 3uA at standby
- Up to 96% Efficiency
- Up to 600mA Max Output Current
- 1.4MHz Frequency
- Light Load operation
- Internal Compensation
- Tiny Package
