etasolutionDatasheet (PDF)

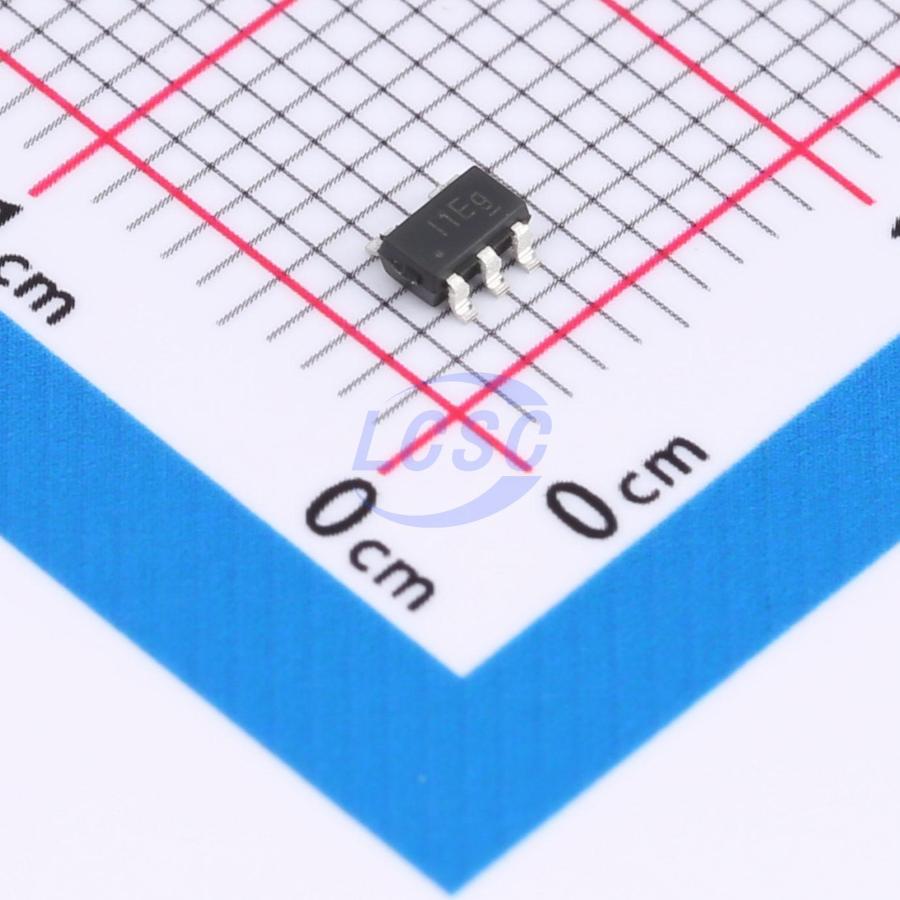

ETA3427S2F
Buck Switching Regulator IC Adjustable 1 Output 1.2A SOT-23-5
SOT-23-5ROHS CompliantActive
Ultra-low quiescent current, 1.2A output synchronous step-down converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA3427S2F
- Store part #
- C22384465
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,630 in stock
#C22384465
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.44 | ₹43.44 |
| 10+ | ₹34.39 | ₹343.90 |
| 30+ | ₹30.40 | ₹912.00 |
| 100+ | ₹25.71 | ₹2,571.00 |
| 500+ | ₹23.53 | ₹11,765.00 |
| 1,000+ | ₹22.09 | ₹22,090.00 |
1 × ₹43.44
₹43.44
excl. GST
₹51.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA3427S2F
₹43.44 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.05MHz~1.75MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.6V~7V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 2uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
ETA3427 is a high-efficiency DC-DC buck switching regulator capable of delivering up to 1.2A output current. It features an ultra-low quiescent current of 2uA at no load. The fixed 1.4MHz operating frequency allows the use of small inductance values with low DCR inductors, achieving higher efficiency. The high switching frequency also enables miniaturization of other external components — such as ceramic input and output capacitors — while maintaining excellent low-noise output voltage. An internal soft-start control circuit reduces inrush current. Short-circuit and thermal overload protection enhance design reliability. The ETA3427 is available in compact SOT23-5 and DFN2x2-6 packages.
Applications
- Wearable devices
- IoT
- Energy harvesting
- Battery-powered devices
Key features
- Switchless standby current 2uA
- Efficiency up to 96%
- Maximum output current up to 1.2A
- Operating frequency 1.4MHz
- Light load operation
- Internal compensation
- Compact SOT23-5 and DFN2x2-6 packages
- RoHS compliant
