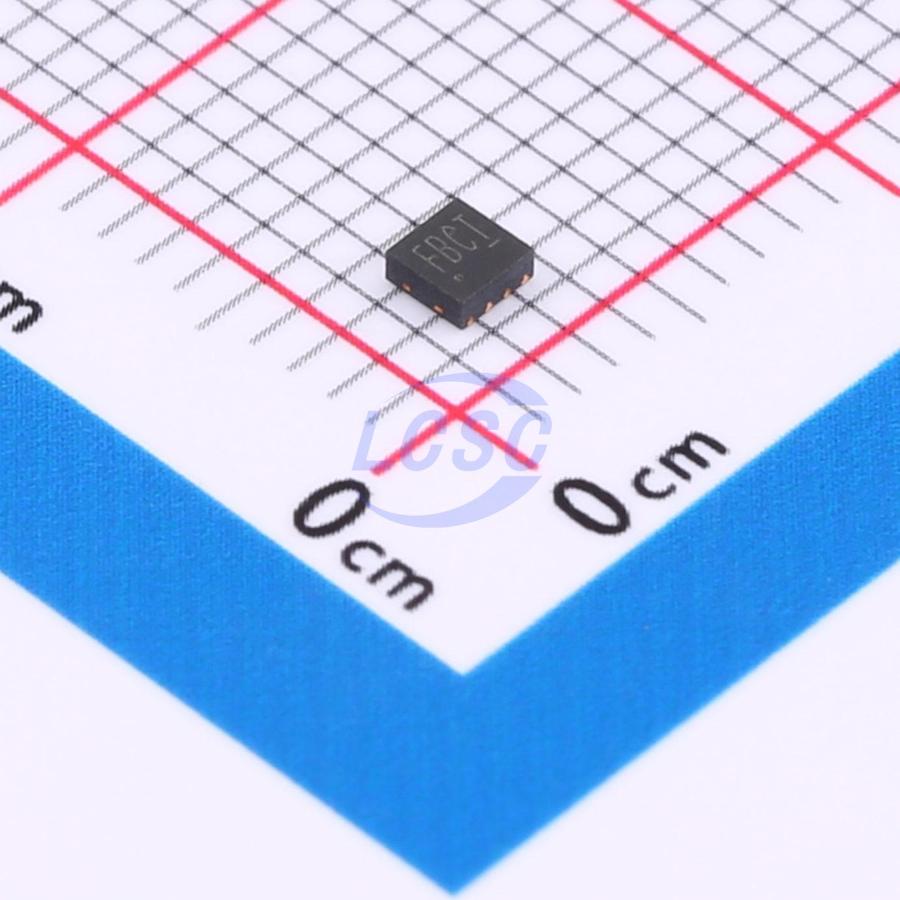

ETA3451D2I

Step-down type 1.5MHz Adjustable 450mV~5.5V 3.5A DFN-8L(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-8L(2x2)ROHS CompliantActive

6V/3.5A, Fast Response, Adaptive COT Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA3451D2I
Store part #: C7433888
Package / case: DFN-8L(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,610 in stock

#C7433888

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹33.04	₹165.20
50+	₹25.89	₹1,294.50
150+	₹22.83	₹3,424.50
500+	₹19.02	₹9,510.00
3,000+	₹17.32	₹51,960.00
6,000+	₹16.30	₹97,800.00

Quantity (min 5, multiples of 5)

5 × ₹33.04

₹165.20

excl. GST

₹194.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA3451D2I

₹165.20 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.6V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 450mV~5.5V
Output Current: 3.5A
Quiescent Current: 50uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

ETA3451 belongs to a new breed of high frequency synchronous Step-Down converter that combines the advantages of voltage mode control and Constant-On-Time control. Its adaptive ConstantOn-Time control dynamically changes switch on time to achieve a constant switching frequency. It does not have the minimum on-time constrain normally a fixed-frequency current mode Step-down requires, allowing it to go down to very low duty ratio without affecting loop stability. The voltage mode nature of ETA3451 also provides a more superior load transient response and a seamless transition from PFM to PWM modes. ETA3451 is capable of supplying output with current up to 3.5A at 1.2V output. All these features make ETA3451 an excellent choice for ARM based CPU power supply. ETA3451 is in a tiny DFN2x2-8 package.
