etasolution

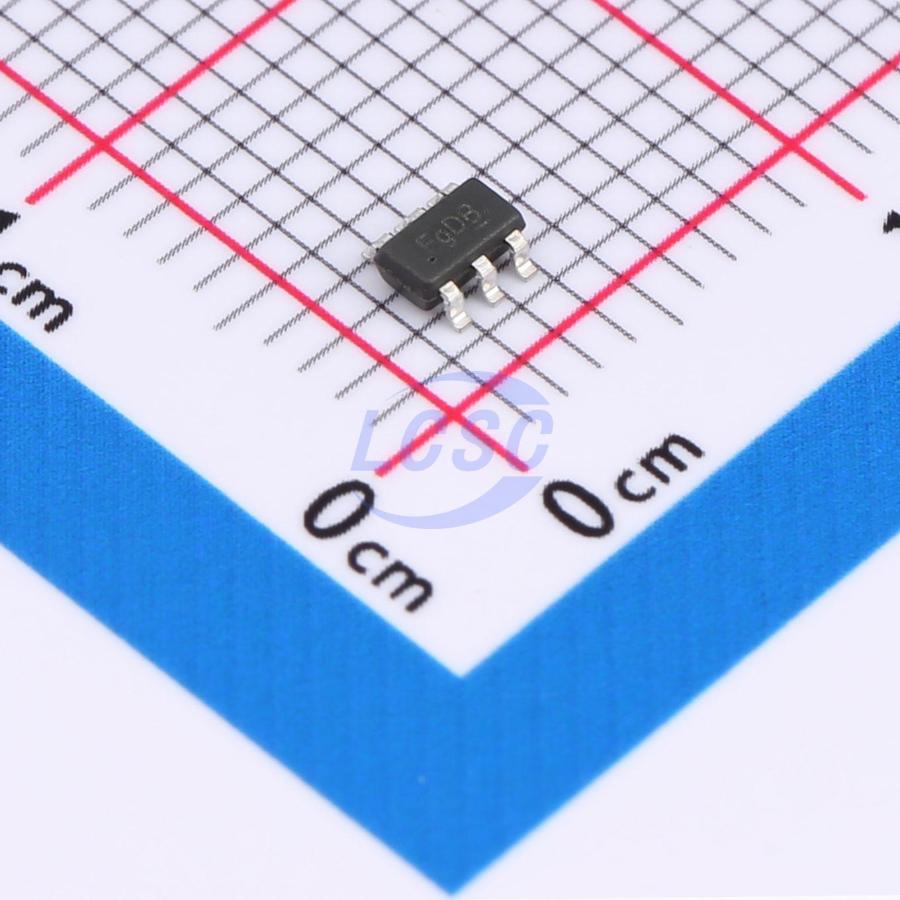

ETA8123S2G

Buck Switching Regulator IC Adjustable 3A SOT-23-6

SOT-23-6ROHS CompliantActive

18V, 3A, High Efficiency Synchronous Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA8123S2G
Store part #: C42459402
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,360 in stock

#C42459402

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹26.18	₹130.90
50+	₹20.60	₹1,030.00
150+	₹17.81	₹2,671.50
500+	₹15.72	₹7,860.00
2,500+	₹14.04	₹35,100.00
5,000+	₹13.20	₹66,000.00

Quantity (min 5, multiples of 5)

5 × ₹26.18

₹130.90

excl. GST

₹154.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA8123S2G

₹130.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 600kHz
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4V~18V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 230uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

ETA8123 is a wide input range, high efficiency, high frequency DC-DC step-down switching regulator capable of delivering up to 3A output current. It employs an adaptive constant on-time control scheme to achieve ultra-fast transient response and provides very smooth transitions as the output load changes from light to heavy. The adaptive constant on-time control also maintains a constant switching frequency over variations in input voltage and load. Its overvoltage protection feature protects both the IC itself and its downstream systems from input voltage surges. With this overvoltage protection capability, the IC can withstand input voltages up to 19V, making it an ideal solution for industrial applications such as LCD TVs, set-top boxes, and portable televisions. ETA8123 is available in a SOT23-6 package.
