etasolutionDatasheet (PDF)

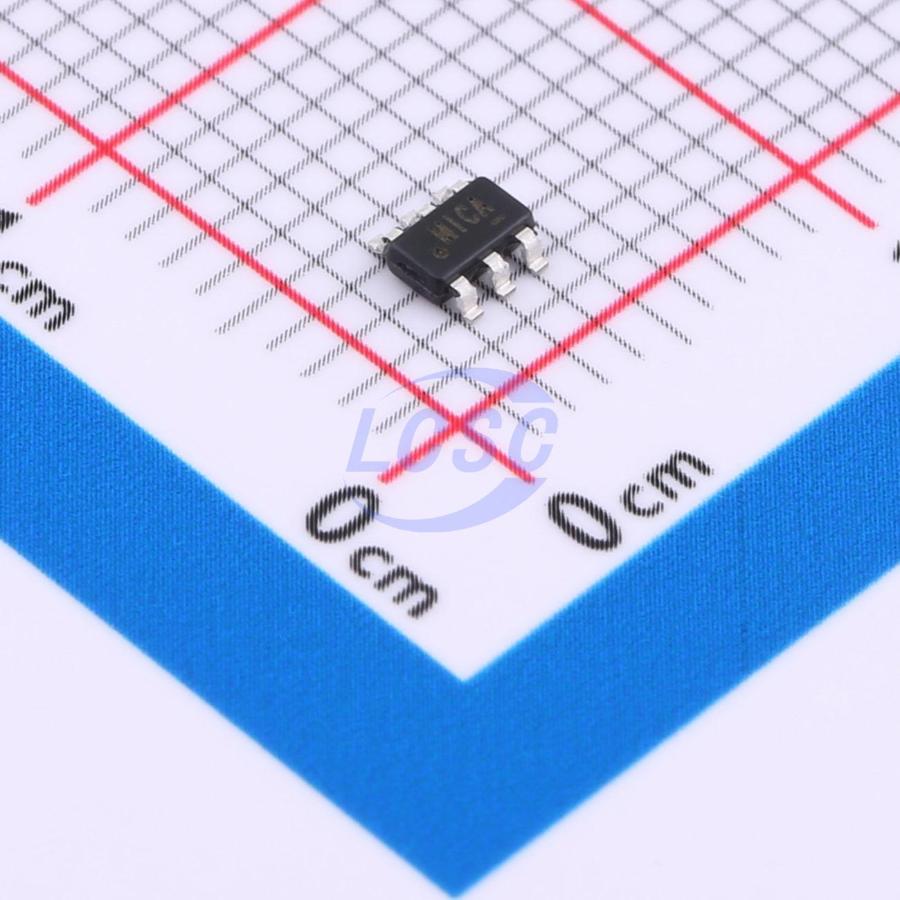

ETA8156FT2G
550kHz Step-down type Adjustable 6A FCTSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
FCTSOT-23-6ROHS CompliantActive
17V/6A High Efficiency Synchronous Step-Down Converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA8156FT2G
- Store part #
- C7465556
- Package / case
- FCTSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,830 in stock
#C7465556
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.96 | ₹264.80 |
| 50+ | ₹41.90 | ₹2,095.00 |
| 150+ | ₹37.34 | ₹5,601.00 |
| 500+ | ₹31.47 | ₹15,735.00 |
| 3,000+ | ₹28.87 | ₹86,610.00 |
| 6,000+ | ₹27.13 | ₹1,62,780.00 |
5 × ₹52.96
₹264.80
excl. GST
₹312.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA8156FT2G
₹264.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 550kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Light load efficient mode;Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 6A
- Quiescent Current
- 230uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
ETA8156 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 6A output current. It adopts an adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load. During light load, ETA8156 goes into a PFM mode that saves switching loss achieving high efficiency. An OVP function protects the IC itself and its downstream system against input voltage surges.
Applications
- LCD TV
- Set Top Box
- DSL Modem
Key features
- Wide Input Range: 4.5V - 17V
- Adaptive COT Control
- Ultra-fast Load Transient Response
- High Efficiency PFM Mode at Light Load
- Low RDS(ON) Internal Power FETs
- Capable of Delivering Up to 6A
- No External Compensation Needed
- Thermal Shutdown and UVLO
- Output Auto-discharge Function
- Available in FCTSOT23-6 Package RoHS compliant
