EUTECHDatasheet (PDF)

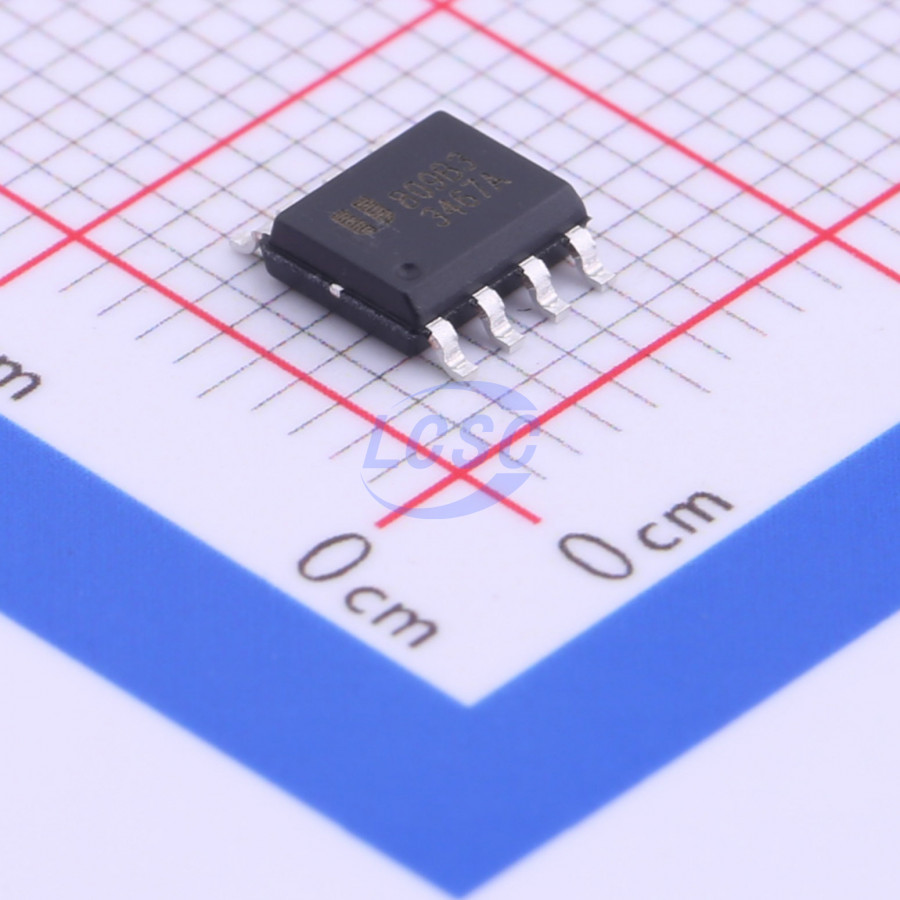

EUP3467AWIR1
120kHz Step-down type Adjustable 5A SOP-8-EP Voltage Regulators - DC DC Switching Regulators
SOP-8-EPRoHSActive
5A, CC/CV Mode Step-Down Converter
- Manufacturer
- EUTECH
- Manufacturer part #
- EUP3467AWIR1
- Store part #
- C370735
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C370735
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.50 | ₹66.50 |
| 10+ | ₹54.02 | ₹540.20 |
| 30+ | ₹48.61 | ₹1,458.30 |
| 100+ | ₹41.92 | ₹4,192.00 |
| 500+ | ₹32.70 | ₹16,350.00 |
| 1,000+ | ₹30.90 | ₹30,900.00 |
| 2,500+ | ₹30.54 | ₹76,350.00 |
| 5,000+ | ₹30.36 | ₹1,51,800.00 |
1 × ₹66.50
₹66.50
excl. GST
₹78.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
EUP3467AWIR1
₹66.50 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Cable compensation;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Quiescent Current
- 500uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
The EUP3467A is a step-down converter capable of driving 5A continuous load with excellent line and load regulation. The EUP3467A operates in either CC (Constant Current) mode or CV (Constant Voltage) mode with an input voltage range from 8V to 36V. The EUP3467A provides programmable cable compensation by adjusting external resistor divider. The EUP3467A stops switching when the output reaches over voltage threshold which is programmed by external resistor divider. Fault protection includes secondary cycle-by-cycle current limit, short circuit protection and thermal shutdown. In shutdown mode the regulator draws 3μA of supply current. Internal soft-start minimizes the inrush supply current and the output overshoot at initial startup. The EUP3467A is available in SOP-8 (EP) package.
Applications
- Car Charger
- Portable charger applications DC/DC converters with current limited
Key features
- 8V to 36V Wide Input Operating Range
- 40V Input Voltage Surge
- Fixed 120kHz Switching Frequency
- CC/CV Mode Control
- Up to 5A Output Current
- +/-1% Voltage Reference Accuracy
- +/-4% Constant Current Accuracy
- Programmable Cable Compensation
- Internal Soft Start
- Output Over Voltage Protection
- Foldback Short Circuit Protection
- Secondary Cycle-by-Cycle Current Limit
- Thermal Shutdown
- Available SOP-8 (EP) Package
- RoHS Compliant and 100% Lead (Pb) -Free Halogen-Free
