F2800155SPHPR

The TMS320F280015x (F280015x) is a member of the cost-optimized C2000 real-time microcontroller family — a scalable, ultra-low-latency device designed for high-efficiency applications in power electronics. These applications include: - HVAC compressor modules - Headlights - DC/DC converters - Inverters and motor control - On-board chargers (OBC) and wireless chargers - Pumps - Industrial motor drives - Motor control - Digital power - Sensing and signal processing

Applications

• Automotive
• Advanced Driver Assistance Systems (ADAS)
• Radar ECU
• Mechanical Scanning LiDAR
• Body Electronics & Lighting
• Door Module
• Trunk Module
• Window Module
• Body Control Module (BCM)
• HVAC Compressor Module
• HVAC Control Module
• In-vehicle Heater Module
• Headlamp
• Seat Comfort Module
• Seat Position & Folding Module
• Steering Wheel Control
• DC/AC Inverter
• Mid-power DC/DC Converter

Key features

• 32-bit lockstep dual TMS320C28x cores, operating at 120MHz
• IEEE 754 floating-point unit (FPU)
• Trigonometric math unit (TMU)
• CRC engine and instructions (VCRC)
• On-chip memory
• 256KB (128KW) single-bank flash (ECC protected)
• 36KB (18KW) RAM (ECC/parity protected)
• Security features
• JTAG lock
• Zero-pin boot
• Dual-zone security
• Clock and system control
• Two internal 10MHz oscillators with external resistor support for improved internal oscillator performance (ExtR)
• Crystal oscillator or external clock input
• Windowed watchdog timer module
• Missing clock detection circuit
• Dual clock comparator (DCC)
• 1.2V core, 3.3V I/O design
• Internal VREG for 1.2V generation
• Brown-out reset (BOR) circuit
• System peripherals
• 52 individually programmable multiplexed GPIO pins (11 shared with analog pins)
• 10 digital inputs on analog pins
• Enhanced peripheral interrupt expansion (ePIE)
• Multiple low-power mode (LPM) support
• Unique identification (UID) number
• Communication peripherals
• One PMBus interface
• Two I²C interfaces
• One CAN/DCAN bus port
• One CAN FD/MCAN bus port
• One SPI port
• Three UART-compatible SCI ports
• One UART-compatible LIN interface
• Analog subsystem
• Two 4MSPS, 12-bit ADCs
• Up to 21 external channels (11 shared with GPIO)
• Four integrated post-processing blocks (PPB) per ADC
• One windowed comparator (CMPSS) with 12-bit reference DAC
• Digital glitch filter
• COMPDACOUT (11-bit)
• Three windowed comparators (CMPSS_LITE) with 9.5-bit effective reference DAC
• Enhanced control peripherals
• 14 ePWM channels, four with high-resolution capability (150ps resolution)
• Integrated dead-band support
• Integrated hardware trip zones (TZs)
• Three enhanced capture (eCAP) modules
• Two enhanced quadrature encoder pulse (eQEP) modules supporting CW/CCW operation
• Embedded pattern generator (EPG)
• CMAC key for software AES (128-bit)
• Diagnostic features
• Memory power-on self-test (MPOST)
• Functional safety compliant
• Developed for functional safety applications
• Documentation available to assist ISO 26262 and IEC 61508 system design
• System capability up to ASIL D and SIL 3
• Hardware integrity up to ASIL B and SIL 2
• Safety-related certifications
• Certified by TÜV SÜD to ISO 26262 up to ASIL B
• Certified by TÜV SÜD to IEC 61508 up to SIL 2
• Package options
• 80-pin LQFP [PN suffix]
• 64-pin LQFP [PM suffix]

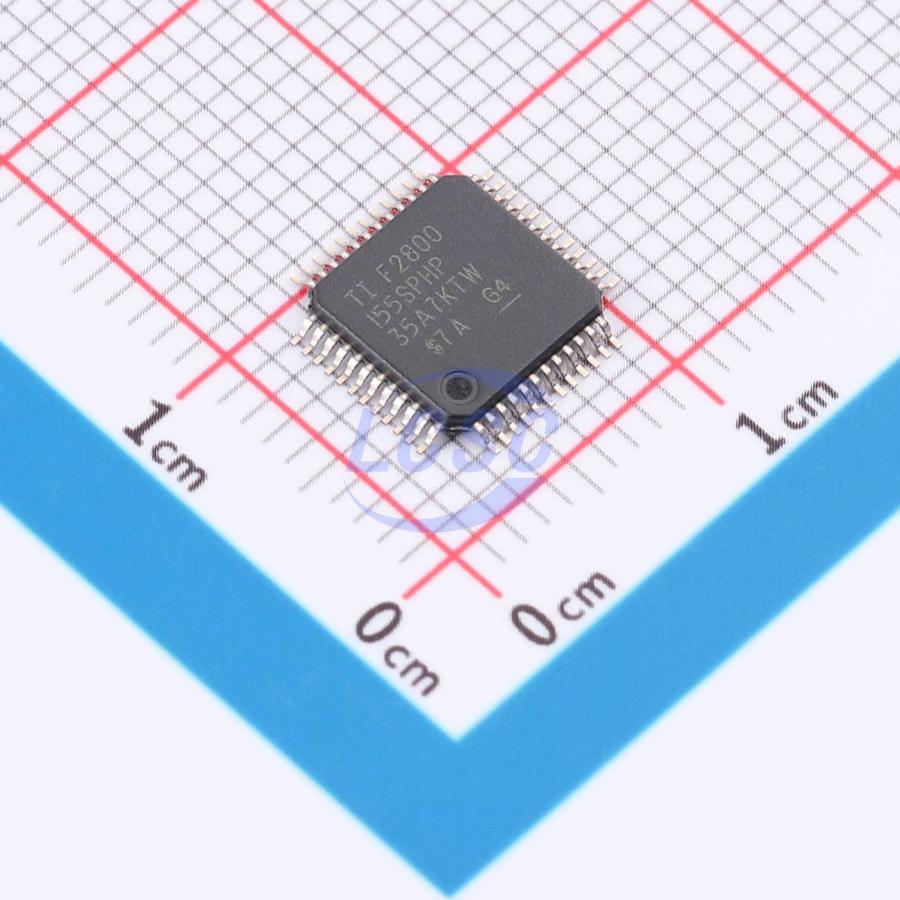

• 48-pin PowerPAD thermally enhanced HTQFP [PHP suffix]
• 32-pin VQFN [RHB suffix]
• Ambient temperature (T_A) (see Device Information table and Device Comparison)
• F280015xS, F280015xQ devices: –40°C to 125°C
• F280015xE devices: 40°C to 150°C
