onsemiDatasheet (PDF)

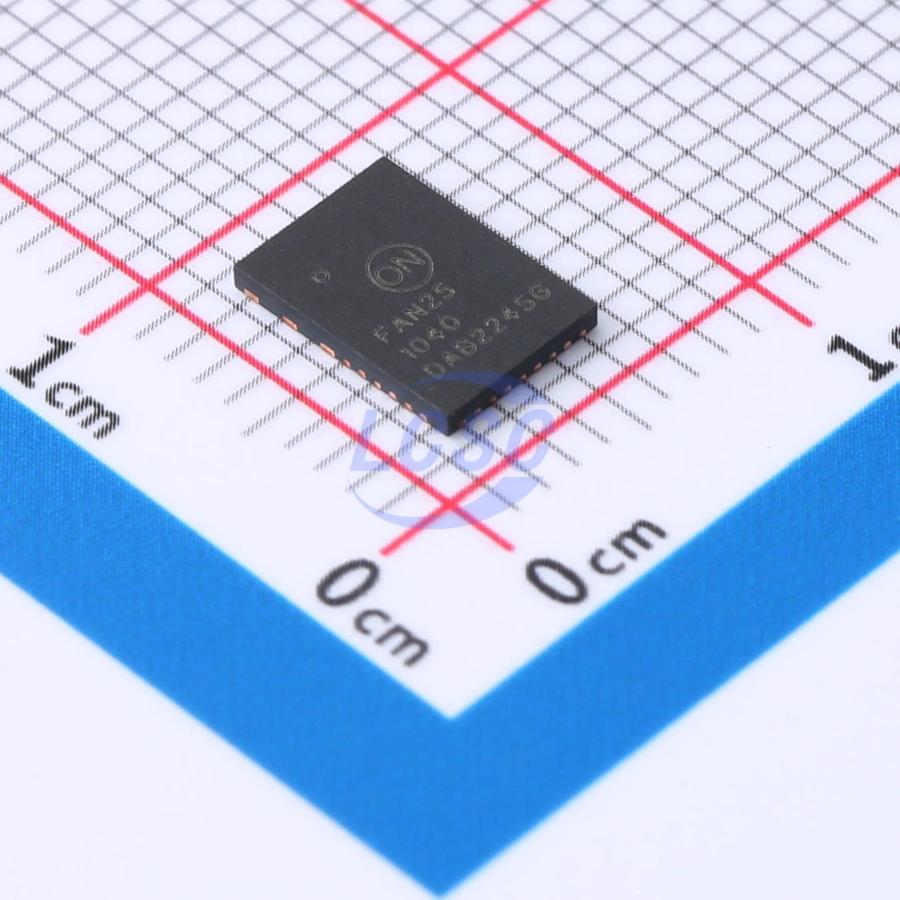

FAN251040MNTXG
200kHz~1.4MHz Step-down type Adjustable 500mV~5.5V 40A WQFN-34(5x7) Voltage Regulators - DC DC Switching Regulators RoHS
WQFN-34(5x7)ROHS3 CompliantActive
High-Efficiency Synchronous Buck Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- FAN251040MNTXG
- Store part #
- C2902206
- Package / case
- WQFN-34(5x7)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C2902206
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹786.29 | ₹786.29 |
| 10+ | ₹676.90 | ₹6,769.00 |
| 30+ | ₹611.68 | ₹18,350.40 |
| 100+ | ₹546.00 | ₹54,600.00 |
| 500+ | ₹515.56 | ₹2,57,780.00 |
| 1,000+ | ₹501.87 | ₹5,01,870.00 |
1 × ₹786.29
₹786.29
excl. GST
₹927.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FAN251040MNTXG
₹786.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 200kHz~1.4MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 500mV~5.5V
- Output Current
- 40A
- Quiescent Current
- 2.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
The FAN251040 is a highly efficient synchronous buck regulator with digital interface, capable of operating with an input range from 4.5 V to 18 V and supporting up to 40 A load currents. The FAN2510xx utilizes a fixed−frequency voltage−mode control architecture to provide a synchronized constant switching frequency while ensuring fast transient response. Switching frequency and over−current protection can be programmed to provide a flexible solution for various applications. Output over−voltage, under−voltage, over−current, and thermal shutdown protections help prevent damage to the device during fault conditions.
Applications
- Server and Desktop Computers, Notebooks, Gaming
- Telecommunications
- High Density Power Solutions
Key features
- VIN Range: 4.5 V to 18 V
- PMBUS 1.3.1 Compatible
- Accurate Voltage, Current and Thermal Telemetry Reporting
- High Efficiency: Over 96% Peak
- Continuous Output Current: 40 A
- Internal Linear Bias Regulator
- Output Voltage Range: 0.5 V to 5.5 V
- Adjustable Frequency: 200 kHz to 1.4 MHz
- Programmable Soft−Start
- Low Shutdown Current
- Internal Boot Diode
- Thermal Shutdown
- This Device is Pb−Free, Halogen Free/BFR Free, and is RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FAN251030MNTXG#C2902205onsemi · WQFN-34(5x7) | onsemi | WQFN-34(5x7) | 52 | ₹690.61 · 52 in stock | View |
