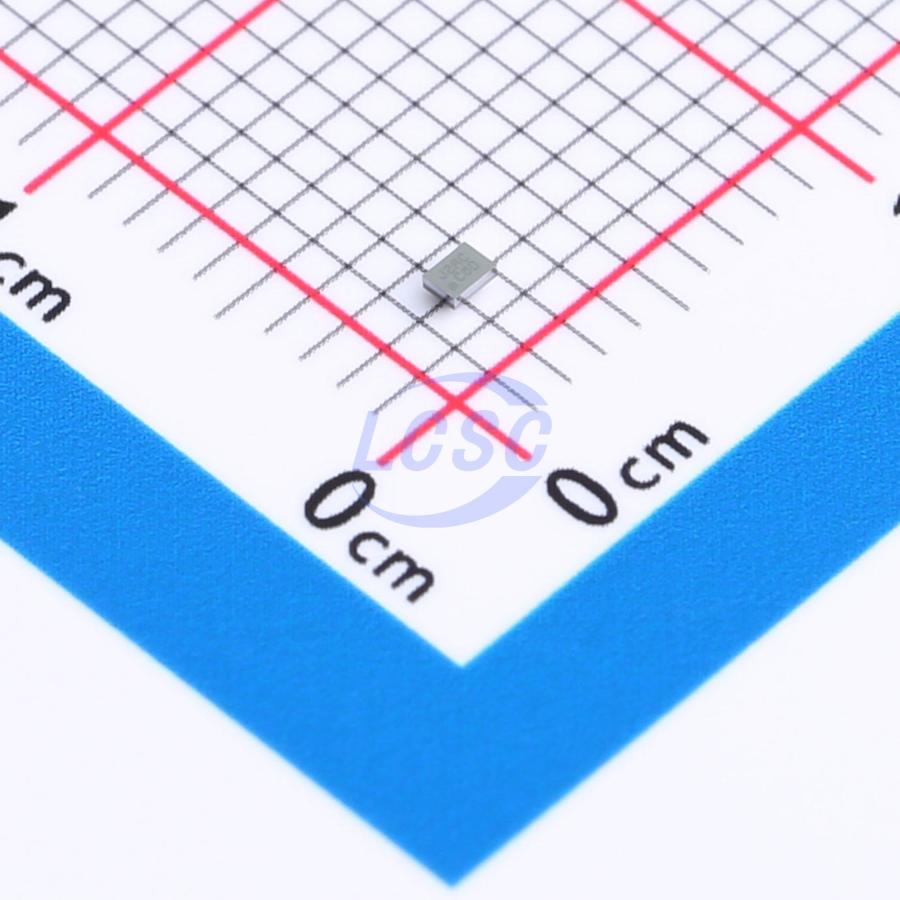

FAN4860UC5X

The FAN4860 is a low-power boost regulator designed to provide a regulated 3.3 V, 5.0 V or 5.4 V output from a single cell Lithium or Li-Ion battery. Output voltage options are fixed at 3.3 V, 5.0 V, or 5.4 V with a guaranteed maximum load current of 200 mA at VIN = 2.3 V and 300 mA at VIN = 3.3 V. Input current in Shutdown Mode is less than 1 μA, which maximizes battery life. Light-load PFM operation is automatic and “glitch-free”. The regulator maintains output regulation at no-load with as low as 37 μA quiescent current. The combination of built-in power transistors, synchronous rectification, and low supply current make the FAN4860 ideal for battery powered applications. The FAN4860 is available in 6-bump 0.4 mm pitch WaferLevel Chip Scale Package (WLCSP) and a 6-lead 2x2 mm ultra-thin MLP package.

Applications

• USB “On the Go” 5 V Supply
• 5 V Supply – HDMI, H-Bridge Motor Drivers
• Powering 3.3 V Core Rails
• PDAs, Portable Media Players
• Cell Phones, Smart Phones, Portable Instruments

Key features

• Operates with Few External Components: 1~μH Inductor and 0402 Case Size Input and Output Capacitors
• Input Voltage Range from 2.3V to 5.4 V
• Fixed 3.3 V, 5.0 V, or 5.4 V Output Voltage Options
• Maximum Load Current >150 mA at VIN = 2.3 V
• Maximum Load Current 300 mA at VIN = 3.3 V, VOUT = 5.4 V
• Maximum Load Current 300 mA at VIN = 3.3 V, VOUT = 5.0 V
• Maximum Load Current 300 mA at VIN = 2.7 V, VOUT = 3.3 V
• Up to 92% Efficient
• Low Operating Quiescent Current
• True Load Disconnect During Shutdown
• Variable On-time Pulse Frequency Modulation (PFM) with Light-Load Power-Saving Mode
• Internal Synchronous Rectifier (No External Diode Needed)
• Thermal Shutdown and Overload Protection
• 6-Pin 2x2 mm UMLP
• 6-Bump WLCSP, 0.4 mm Pitch
