onsemi

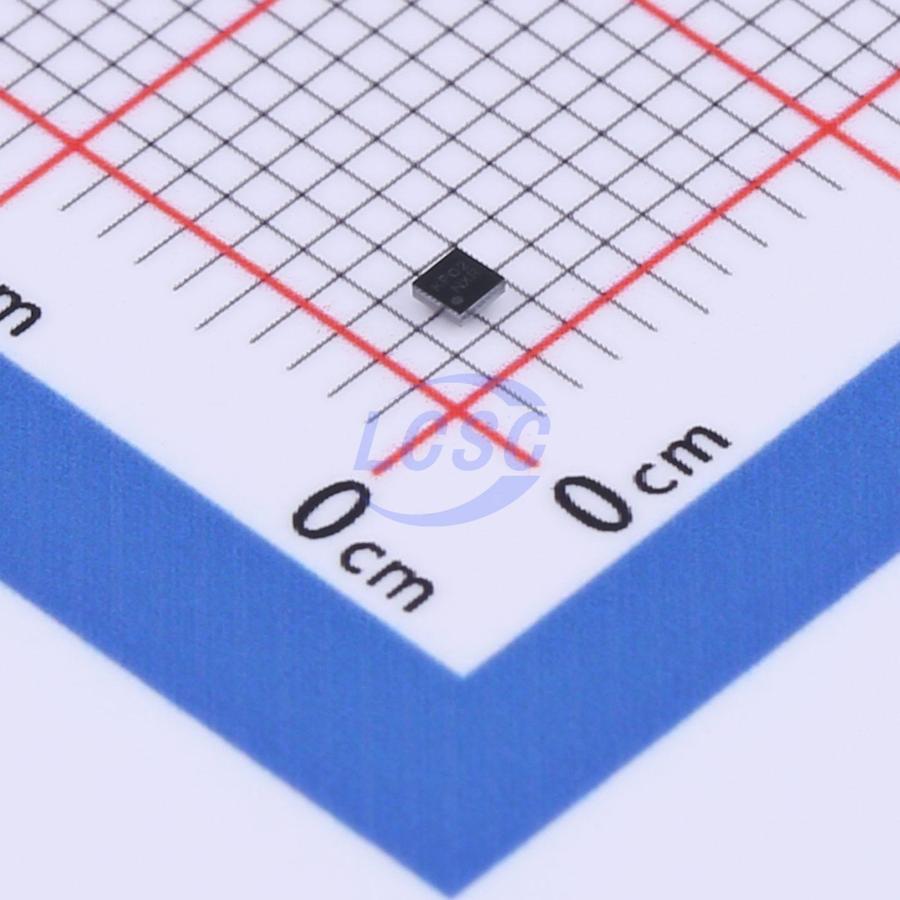

FAN48610UC50X

2.5MHz Boost Fixed 1.5A 5V WLCSP-9(1.2x1.2) Voltage Regulators - DC DC Switching Regulators RoHS

WLCSP-9(1.2x1.2)ROHS3 CompliantActive

Low-Power Boost Regulator

Manufacturer: onsemi
Manufacturer part #: FAN48610UC50X
Store part #: C890712
Package / case: WLCSP-9(1.2x1.2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,029 in stock

#C890712

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹104.53	₹104.53
10+	₹84.75	₹847.50
30+	₹74.97	₹2,249.10
100+	₹65.20	₹6,520.00
500+	₹59.32	₹29,660.00
1,000+	₹56.28	₹56,280.00

Quantity (min 1)

1 × ₹104.53

₹104.53

excl. GST

₹123.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

FAN48610UC50X

₹104.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 2.5MHz
Function: Boost
Number of Outputs: 1
Features: Load disconnect;Overcurrent Protection
Output Type: Fixed
Topology: Boost
Operating Voltage: 2.5V~4.8V
Switch tube (built-in/external): Built-in
Output Current: 1.5A
Output Voltage: 5V
Quiescent Current: 125uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.017 g

Overview

The FAN48610 is a low-power boost regulator designed to provide a minimum voltage-regulated rail from a standard single-cell Li-Ion battery and advanced battery chemistries. Even below the minimum system battery voltage, the device maintains the output voltage regulation for a minimum output load current of 1.0 A. The combination of built-in power transistors, synchronous rectification, and low supply current suit the FAN48610 for battery-powered applications. The FAN48610 is available in a 9-bump, 0.4 mm pitch, Wafer-Level Chip-Scale Package (WLCSP).

Applications

Class-D Audio Amplifier and USB OTG Supply
Boost for Low-Voltage Li-Ion Batteries
Smart Phones, Tablets, Portable Devices, Wearables

Key features

Input Voltage Range: 2.5 V to 4.8 V
Output Voltages Range: 3.0 V to 5.0 V
IoUT ≥ 1 A at ΔV_OUT = 5.0 V, V_IN ≥ 2.5 V
IoUT ≥ 1.5 A at ΔV_OUT = 5.0 V, V_IN ≥ 3.0 V
Up to 94% Efficient
Internal Synchronous Rectification
Soft-Start with True Load Disconnect
Short-Circuit Protection
9-Bump, 1.215 mm×1.215 mm, 0.4 mm Pitch WLCSP
Three External Components: 2016 0.47 μH Inductor, 0603 Case Size Input / Output Capacitors
Total Application Board Solution Size: <11 mm²

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
FAN48610BUC50X#C890711onsemi · WLCSP-9(1.2x1.2)	onsemi	WLCSP-9(1.2x1.2)	26	₹269.05 · 26 in stock	View
SGM66055-5.0YG/TR#C5153549SGMICRO · WLCSP-9-B(1.2x1.2)	SGMICRO	WLCSP-9-B(1.2x1.2)	2,495	₹105.05 · 2,495 in stock	View
FAN48618BUC53X#C890718onsemi · WLCSP-9(1.2x1.2)	onsemi	WLCSP-9(1.2x1.2)	81	₹663.85 · 81 in stock	View
SGM66055B-5.0YG/TR#C5153550SGMICRO · WLCSP-9-B(1.2x1.2)	SGMICRO	WLCSP-9-B(1.2x1.2)	On request	₹97.98 · 0 in stock	View
SGM66056-5.0YG/TR#C5153552SGMICRO · WLCSP-9-B(1.2x1.2)	SGMICRO	WLCSP-9-B(1.2x1.2)	On request	₹97.98 · 0 in stock	View
