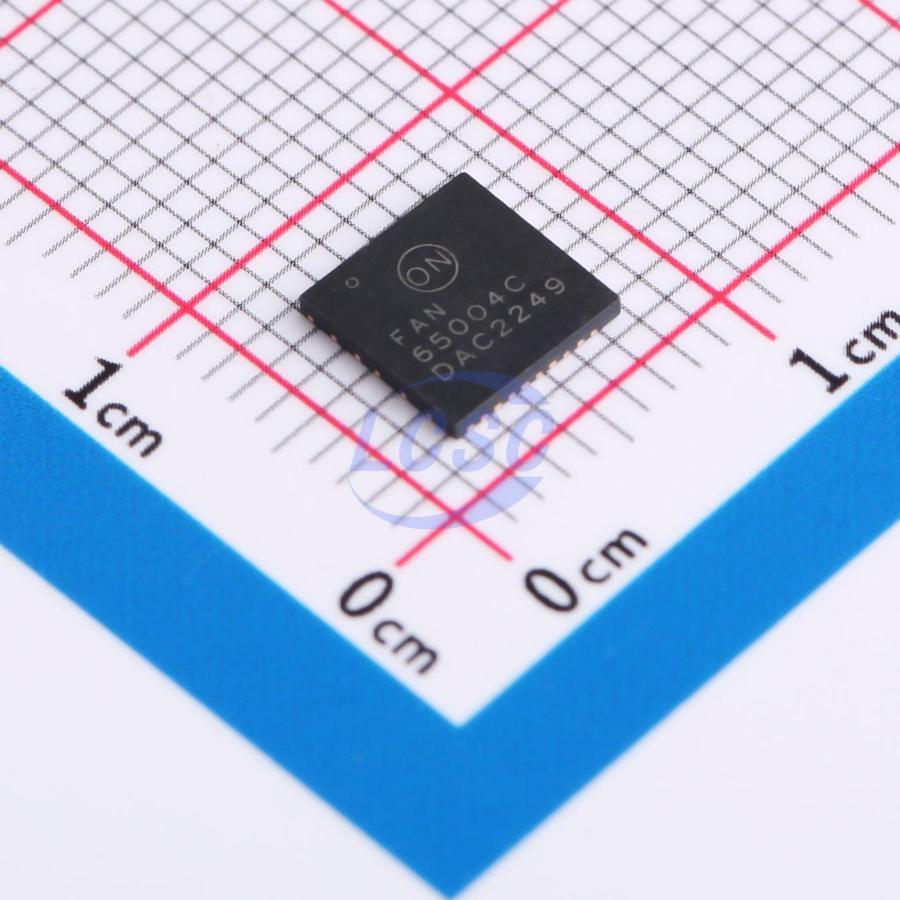

FAN65004C

FAN65004C is a wide VIN highly efficient synchronous buck regulator, with integrated high side and low side power MOSFETs. The device incorporates a fixed frequency voltage mode PWM controller supporting a wide voltage range from 4.5 V to 65 V and can handle continuous currents up to 6 A. FAN65004C includes a 0.67% accurate reference voltage to achieve tight regulation. The switching frequency can be programmed from 100 kHz to 1 MHz. To improve efficiency at light load condition, the device can be set to discontinuous conduction mode with pulse skipping operation. FAN65004C has dual LDOs to minimize power loss and integrated current sense circuit that provides cycle−by−cycle current limiting. This single phase buck regulator offers complete protection features including Over current protection, Thermal shutdown, Under−voltage lockout, Over voltage protection, Under voltage protection and Short−circuit protection. FAN65004C uses high performance PowerTrench MOSFETs that reduces ringing in switching applications. FAN65004C integrates the controller, driver, and power MOSFETs into a thermally enhanced, compact 6 mm x 6 mm PQFN package. With an integrated approach, the complete DC/DC converter is optimized from the controller and driver to MOSFET switching performance, delivering a high power density solution.

Applications

• High Voltage POL Module
• Telecommunications: Base Station Power Supplies
• Networking: Computing, Battery Management Systems, USB−PD
• Industrial Equipment: Automation, Power Tools, Slot Machines

Key features

• Wide Input Voltage Range: 4.5 V to 65 V
• Continuous Output Current: 6 A
• Fixed Frequency Voltage Mode PWM Control with Input Voltage Feed−forward
• 0.6 V Reference Voltage with 0.67% Accuracy
• Adjustable Switching Frequency: 100 kHz to 1 MHz
• Dual LDOs for Single Supply Operation and to Reduce Power Loss
• Selectable CCM PWM Mode or PFM Mode for Light Loads
• External Compensation for Wide Operation Range
• Adjustable Soft−Start & Pre−Bias Startup
• Enable Function with Adjustable Input Voltage Under−Voltage−Lock−Out (UVLO)
• Power Good Indicator
• Over Current Protection, Thermal Shutdown, Over Voltage Protection, Under Voltage Protection and Short−circuit Protection
• High Performance Low Profile 6 mm x 6 mm PQFN Package
• This Device is Pb−Free and RoHS Compliant
