onsemiDatasheet (PDF)

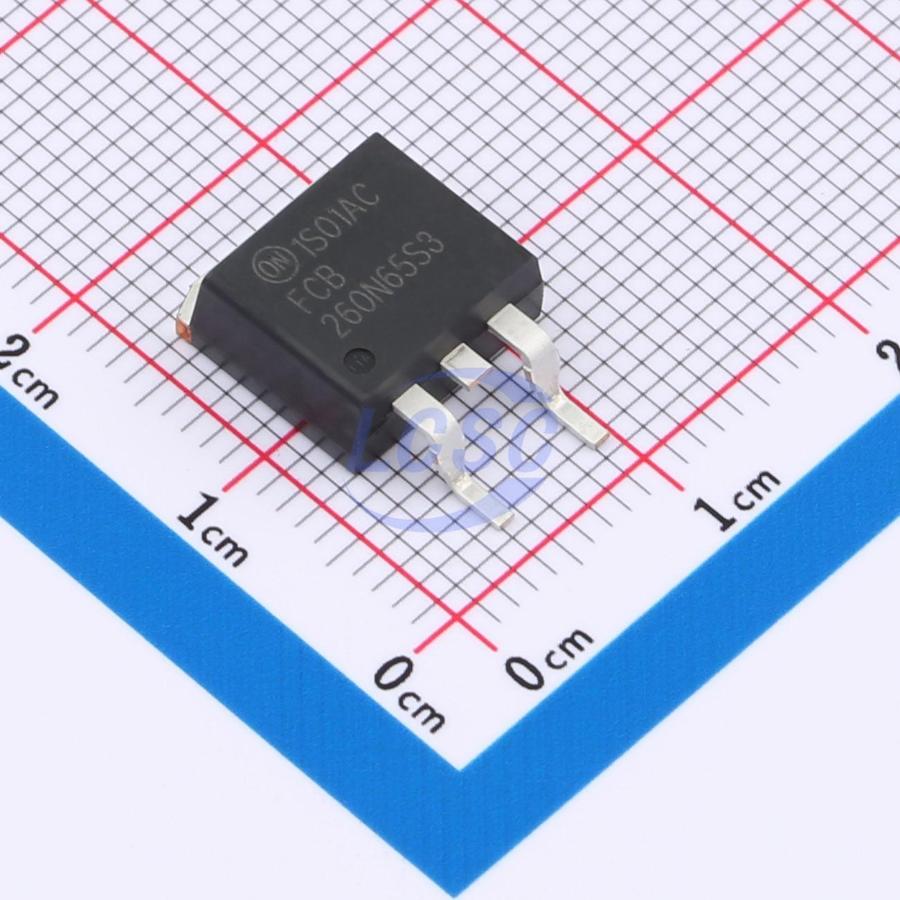

FCB260N65S3
N-Channel 650V 12A Surface Mount TO-263-2
TO-263-2ROHS3 CompliantActive
MOSFET N-CH 650V 12A TO-263-2
- Manufacturer
- onsemi
- Manufacturer part #
- FCB260N65S3
- Store part #
- C604983
- Package / case
- TO-263-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C604983
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹709.64 | ₹709.64 |
| 10+ | ₹692.72 | ₹6,927.20 |
| 30+ | ₹681.68 | ₹20,450.40 |
| 100+ | ₹670.39 | ₹67,039.00 |
1 × ₹709.64
₹709.64
excl. GST
₹837.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FCB260N65S3
₹709.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.01nF
- Pd - Power Dissipation
- 90W
- RDS(on)
- 260mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.038 g
Overview
SUPERFET III MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advance technology is tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate. Consequently, SUPERFET III MOSFET is very suitable for various power system miniaturization and higher efficiency.
Applications
- Telecom / Server Power Supplies
- Industrial Power Supplies
- UPS / Solar
Key features
- 700 V (TJ = 150°C)
- Typ. RDS(on) = 222 mΩ
- Ultra Low Gate Charge (Typ. Qg = 24 nC)
- Low Effective Output Capacitance (Typ. C0ss(eff.) = 248 pF)
- 100% Avalanche Tested
- These Devices are Pb −Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPB65R120M#C691629WUXI UNIGROUP MICRO · TO-263 | WUXI UNIGROUP MICRO | TO-263 | 1 | ₹298.20 · 1 in stock | View |
 | FCB199N65S3#C898502onsemi · D2PAK | onsemi | D2PAK | 10 | ₹1,007.20 · 10 in stock | View |
 | STB23N80K5#C472539ST · D2PAK | ST | D2PAK | 10 | ₹769.01 · 10 in stock | View |
 | NCE65T260D#C502905NCE · TO-263 | NCE | TO-263 | 498 | ₹180.01 · 498 in stock | View |
 | ASB65R300E#C5440008ANHI · TO-263 | ANHI | TO-263 | 364 | ₹95.22 · 364 in stock | View |
