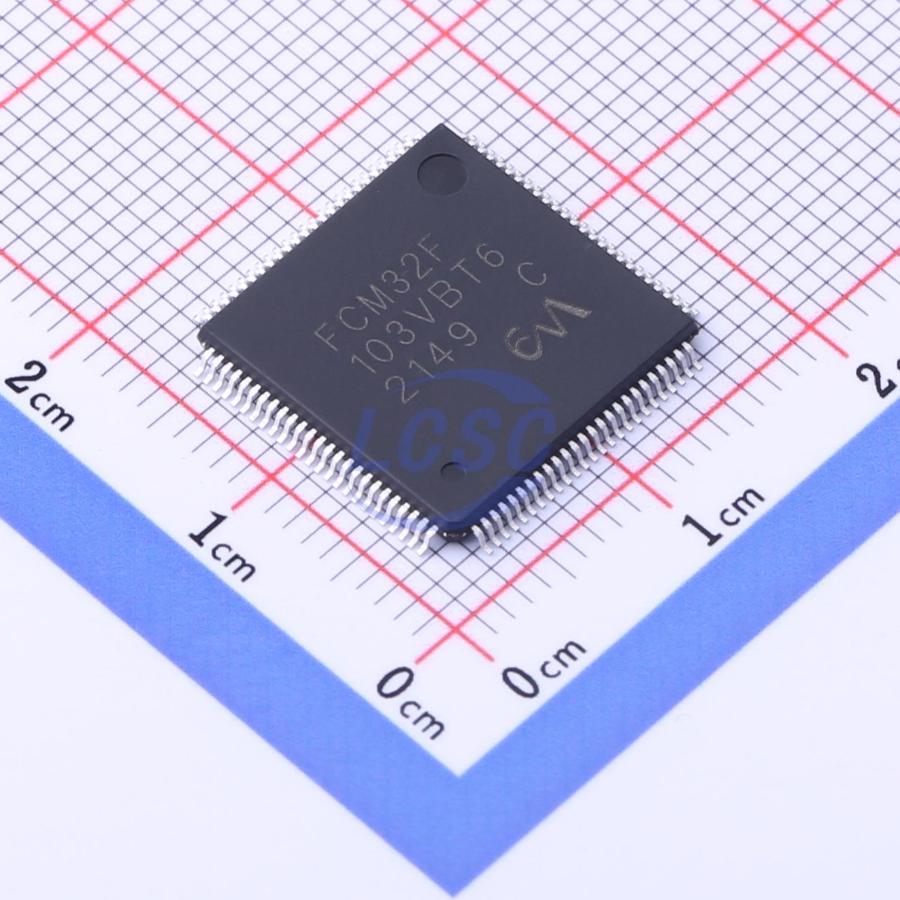

FCM32F103VBT6

The FCM32x103 MCU features a 32-bit high-performance ARM Cortex-M4 RISC core operating at 72/96 MHz, high-speed embedded memory (up to 128 Kbytes Flash and 32 Kbytes SRAM), and a rich set of high-performance peripherals and I/O. All models provide standard communication interfaces (I2C, SPI/I2S, USART), USB full-speed device, two 12-bit ADCs, three general-purpose 16-bit timers, and one 16-bit advanced-control PWM timer. The FCM32x103 MCU operates over a supply voltage range of 1.8~5.5V and a temperature range of -40 to 125°C. Comprehensive power-saving modes make it suitable for low-power applications. The FCM32x103 MCU is available in a variety of package options, ranging from 48 to 100 pins. The set of peripherals included varies depending on the package. These features make the FCM32x103 MCU well suited for a wide range of applications, such as motor drives, application control and user interfaces, handheld devices, A/V receivers and digital TVs, PC peripherals, gaming accessories, GPS platforms, industrial applications, PLCs, printers, scanners, alarm systems, video connectivity, and HVAC. The SPI1/2 interface can operate in SPI mode or I2S audio mode.

Applications

• Motor drive
• Application control and user interface
• Handheld devices
• A/V receivers and digital TV
• PC peripherals
• Gaming peripherals
• GPS platforms
• Industrial applications
• PLC
• Printers
• Scanners
• Alarm systems
• Video connectivity
• HVAC

Key features

• ARM 32-bit Cortex-M4 CPU, up to 72/96 MHz
• 64/128 KB FLASH memory
• FLASH interface with FLASH Turbo module for significantly improved performance when executing code from FLASH (H series only)
• FLASH operating speed at 32MHz, wait cycles configurable accordingly (H series only)
• 20/32 KB SRAM
• CRC calculation unit
• Reset and power management
• Digital and I/O supply: VDD = 1.8 - 5.5V
• Analog supply: VDDA = 1.8 - 5.5V
• Power-on/power-down (POR/PDR) reset
• Programmable voltage detector (PVD)
• Low-power modes: Sleep, Stop, Standby
• Clock management
• 4 - 16 MHz crystal oscillator
• 32 KHz oscillator for RTC with calibration
• Internal 8 MHz RC oscillator
• Internal 40 KHz RC oscillator
• PLL for CPU clock
• Up to 80 fast I/Os
• All mappable to external interrupt vectors
• Most 5V-tolerant when powered at 3V
• DMA controller
• 7 channels
• Supported peripherals: TIMER/ADC/SPI/I2C/USART
• 2× 12-bit, 1us ADC (up to 10 channels)
• Conversion range: 0 - 5.5V
• Temperature sensor
• 7 timers
• 1× 16-bit advanced timer with dead-time and break for motor control PWM
• 3× 16-bit timers, up to 4 IC/OC/OCN inputs, quadrature encoder input support
• PWM supports input clock of PLLCLK × 2 (H series only)
• Independent watchdog and system watchdog timers
• SysTick timer
• Communication interfaces
• 2× I2C, SMBus/PMBus
• 3× USART (ISO7816, LIN, IrDA, modem control signals)
• 2× SPI (48 Mbit/s), 4 - 16-bit data frames, with I2S interface
• CAN interface
• USB 2.0 full-speed interface
• Debug modes
• 2-wire serial debug (SWD) or 4-wire JTAG
• 96-bit unique ID
• Packages: LQFP48/64/100, UFQFPN48
