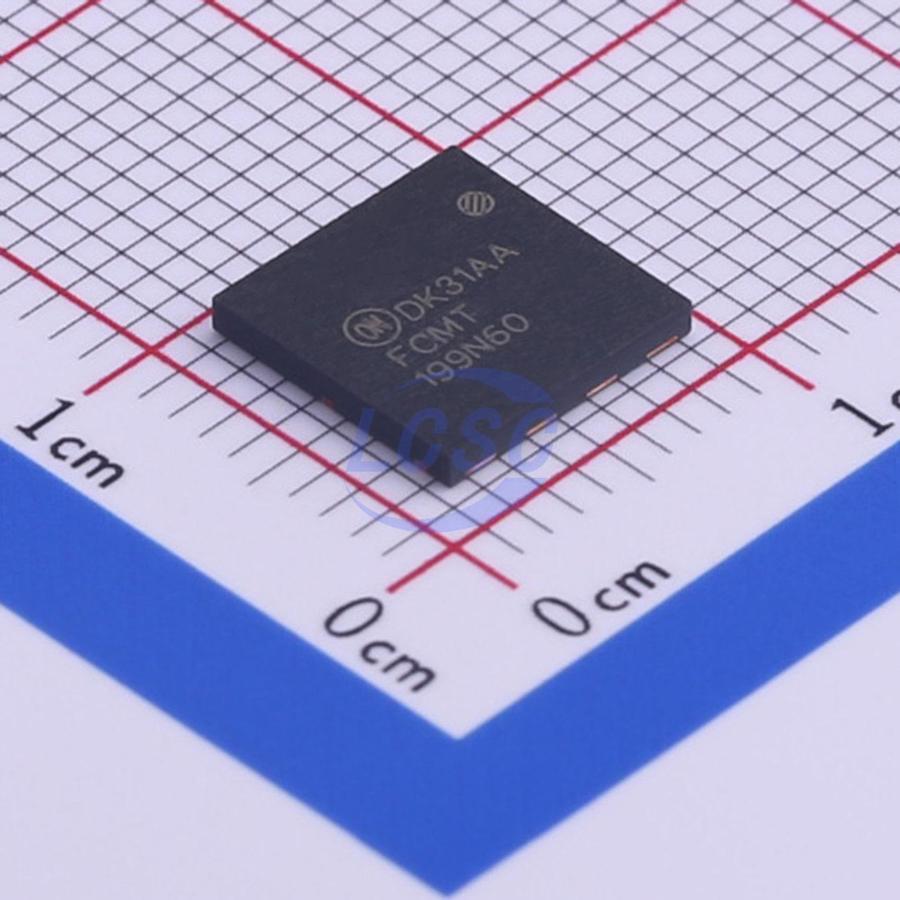

FCMT199N60
N-Channel 600V 20.2A 208W Surface Mount Power-88
Power-88ROHS3 CompliantActive
MOSFET N-CH 600V 20.2A Power-88
- Manufacturer
- onsemi
- Manufacturer part #
- FCMT199N60
- Store part #
- C455163
- Package / case
- Power-88
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C455163
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹699.35 | ₹699.35 |
| 10+ | ₹603.20 | ₹6,032.00 |
| 30+ | ₹546.20 | ₹16,386.00 |
| 100+ | ₹488.39 | ₹48,839.00 |
| 500+ | ₹461.73 | ₹2,30,865.00 |
| 1,000+ | ₹449.63 | ₹4,49,630.00 |
1 × ₹699.35
₹699.35
excl. GST
₹825.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FCMT199N60
₹699.35 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 2.715nF
- Pd - Power Dissipation
- 208W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 20.2A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 199mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 57nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
SuperFET II MOSFET is Fairchild Semiconductor’s brand-new high voltage super-junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on-resistance and lower gate charge performance. This technology is tailored to minimize conduction loss, provide superior switching performance, dv/dt rate and higher avalanche energy. Consequently, SuperFET II MOSFET is very suitable for the switching power applications such as server/telecom power, adaptor and solar inverter applications.
Applications
- Server and Telecom Power Supplies
- Solar Inverters
- Adaptors
Key features
- Ultra Low Gate Charge (Typ. Qg = 57 nC)
- Low Effective Output Capacitance (Typ. Coss(eff.) = 160 pF)
- 100% Avalanche Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK099V65Z,LQ#C7068982TOSHIBA · DFN-5(8x8) | TOSHIBA | DFN-5(8x8) | 5 | ₹1,355.40 · 5 in stock | View |
 | STL57N65M5#C501013ST · PowerFLAT(8x8) | ST | PowerFLAT(8x8) | 5 | ₹1,713.52 · 5 in stock | View |
| MMUB65R115RURH#C51891822MagnaChip Semicon · PDFN88 | MagnaChip Semicon | PDFN88 | 298 | ₹174.11 · 298 in stock | View | |
 | MMUB65R090RURH#C51891811MagnaChip Semicon · PDFN88 | MagnaChip Semicon | PDFN88 | 179 | ₹176.37 · 179 in stock | View |
 | BML60N165UC1#C55805907Bestirpower · DFN-5(8x8) | Bestirpower | DFN-5(8x8) | 155 | ₹140.52 · 155 in stock | View |
