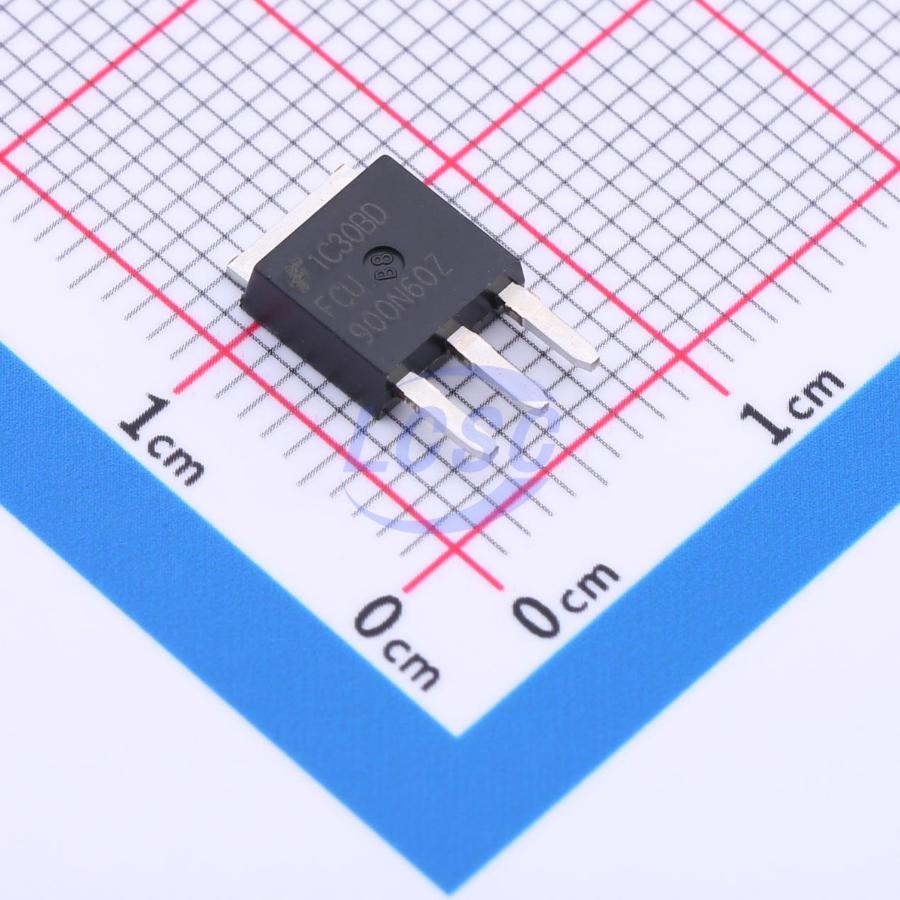

FCU900N60Z
600V 4.5A 52W Surface Mount DPAK-3
DPAK-3RoHSActive
MOSFET 600V 4.5A DPAK-3
- Manufacturer
- onsemi
- Manufacturer part #
- FCU900N60Z
- Store part #
- C900608
- Package / case
- DPAK-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C900608
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹365.12 | ₹365.12 |
| 10+ | ₹312.02 | ₹3,120.20 |
| 30+ | ₹278.76 | ₹8,362.80 |
| 100+ | ₹244.69 | ₹24,469.00 |
| 500+ | ₹229.46 | ₹1,14,730.00 |
| 1,000+ | ₹222.85 | ₹2,22,850.00 |
1 × ₹365.12
₹365.12
excl. GST
₹430.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per tube
FCU900N60Z
₹365.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 399pF
- Ciss-Input Capacitance
- 710pF
- Pd - Power Dissipation
- 52W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 4.5A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 900mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,800 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
SuperFET II MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This technology is tailored to minimize conduction loss, provide superior switching performance, dv/dt rate and higher avalanche energy. Consequently, SuperFET II MOSFET is very suitable for the switching power applications such as PFC, server/telecom power, FPD TV power, ATX power and industrial power applications.
Applications
- LCD/LED/PDP TV and Monitor Lighting
- Solar Inverter
- Charger
Key features
- 675 V @ TJ = 150°C
- Typ. RDS(on) = 820 mΩ
- Ultra Low Gate Charge (Typ. Qg = 13 nC)
- Low Effective Output Capacitance (Typ. C0ss(eff.) = 48.6 pF)
- 100% Avalanche Tested
- ESD Improved Capacity
- RoHS Compliant
