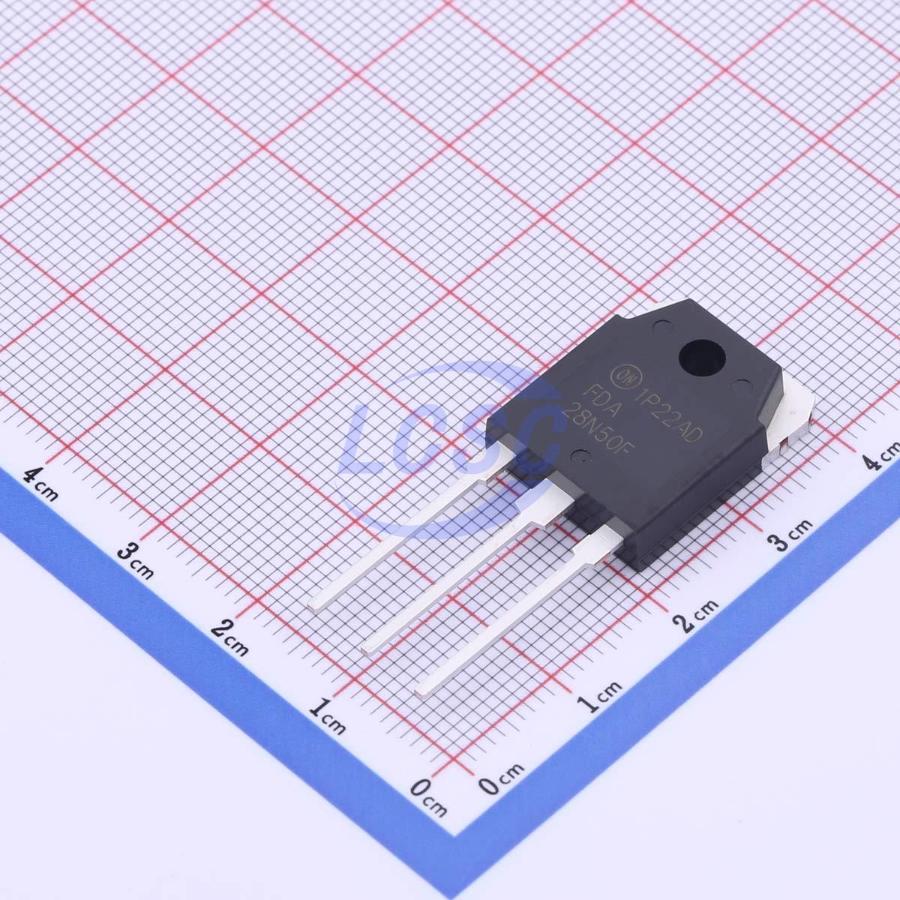

FDA28N50F
N-Channel 500V 28A 310W Through Hole TO-3PN
TO-3PNROHS3 CompliantDiscontinued
MOSFET N-CH 500V 28A TO-3PN
- Manufacturer
- onsemi
- Manufacturer part #
- FDA28N50F
- Store part #
- C606018
- Package / case
- TO-3PN
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
519 in stock
#C606018
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹923.15 | ₹923.15 |
| 10+ | ₹805.12 | ₹8,051.20 |
| 30+ | ₹602.15 | ₹18,064.50 |
| 90+ | ₹541.83 | ₹48,764.70 |
1 × ₹923.15
₹923.15
excl. GST
₹1,089.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FDA28N50F
₹923.15 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 566pF
- Ciss-Input Capacitance
- 5.387nF
- Pd - Power Dissipation
- 310W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 28A
- Reverse Transfer Capacitance (Crss)
- 56pF
- RDS(on)
- 140mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.23 g
Overview
UniFETTM MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength. The body diode’s reverse recovery performance of UniFET FRFET® MOSFET has been enhanced by lifetime control. Its trr is less than 100nsec and the reverse dv/dt immunity is 15V/ns while normal planar MOSFETs have over 200nsec and 4.5V/nsec respectively. Therefore, it can remove additional component and improve system reliability in certain applications in which the performance of MOSFET’s body diode is significant. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Applications
- PDP TV
- Uninterruptible Power Supply
- AC-DC Power Supply
Key features
- RDS(on)=140 mΩ (Typ.) @ ID = 14 A
- Low Gate Charge (Typ. 80 nC)
- Low Crss (Typ. 38 pF)
- 100% Avalanche Tested
- Improved dv/dt Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 28N50#C19267785HXY MOSFET · TO-3P | HXY MOSFET | TO-3P | 72 | ₹197.92 · 72 in stock | View |
| IXFQ50N50P3#C22956139Littelfuse/IXYS · TO-3P | Littelfuse/IXYS | TO-3P | 3 | ₹2,777.20 · 3 in stock | View | |
 | IXTQ480P2#C497174Littelfuse/IXYS · TO-3P-3 | Littelfuse/IXYS | TO-3P-3 | 28 | ₹846.81 · 28 in stock | View |
 | TSA28N50M#C439874Truesemi · TO-3P-3 | Truesemi | TO-3P-3 | 90 | ₹260.01 · 90 in stock | View |
 | IXTQ44N50P#C23403542Littelfuse/IXYS · TO-3P-3 | Littelfuse/IXYS | TO-3P-3 | 5 | ₹3,453.14 · 5 in stock | View |
