onsemiDatasheet (PDF)

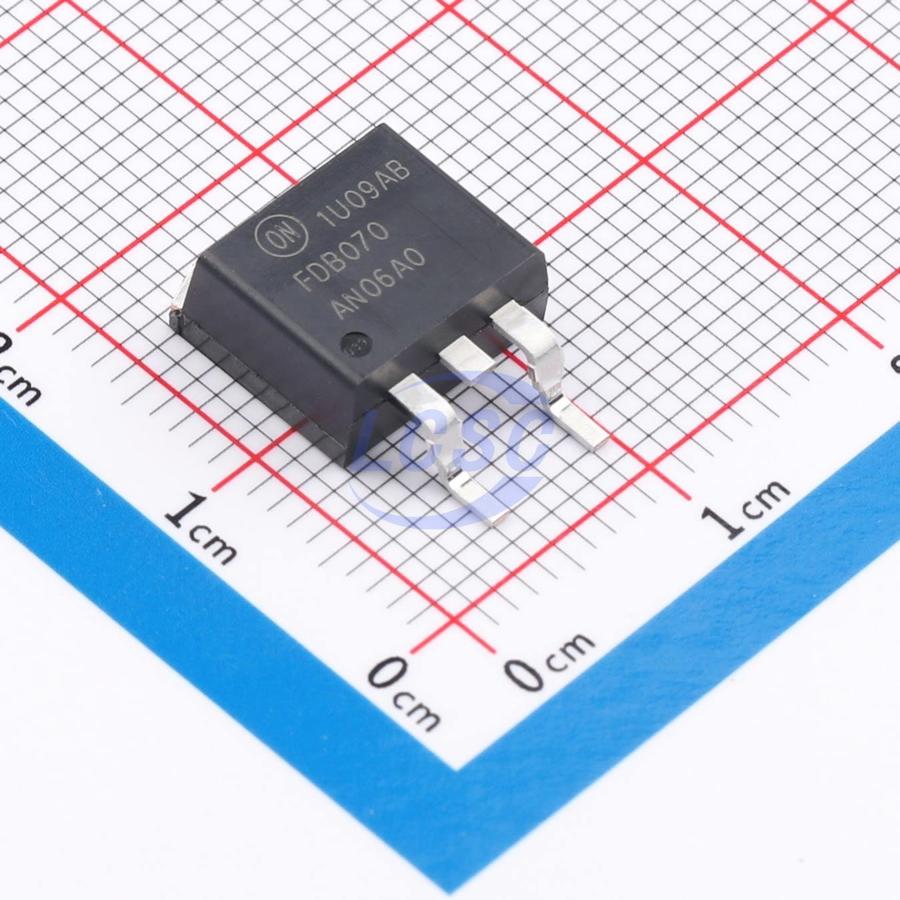

FDB070AN06A0
175W 60V 80A 7mΩ@10V 1 N-channel N-Channel D2PAK(TO-263) Single FETs, MOSFETs RoHS
D2PAK(TO-263)ROHS3 CompliantActive
N-Channel, Current: 80A, Voltage: 60V
- Manufacturer
- onsemi
- Manufacturer part #
- FDB070AN06A0
- Store part #
- C241747
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C241747
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹678.74 | ₹678.74 |
| 10+ | ₹663.76 | ₹6,637.60 |
| 30+ | ₹653.99 | ₹19,619.70 |
| 100+ | ₹644.21 | ₹64,421.00 |
1 × ₹678.74
₹678.74
excl. GST
₹800.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FDB070AN06A0
₹678.74 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 510pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 175W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 230pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.832 g
Overview
Applications
- Synchronous rectification for ATX/server/telecom power supplies - Battery protection circuits - Motor drives and UPS
Key features
- R DS(on) = 6.1 mΩ (typ) at V GS = 10 V, I D = 80 A
- Q g(tot) = 51 nC (typ) at V GS = 10 V
- Low Miller charge
- Low Q rr body diode
- UIS capability (single pulse and repetitive pulse)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HYG064N08NA1B#C2830426HUAYI · TO-263-2 | HUAYI | TO-263-2 | 15 | ₹100.15 · 15 in stock | View |
 | CRSS052N08N#C410924CRMICRO · TO-263 | CRMICRO | TO-263 | 62,597 | ₹63.32 · 62,597 in stock | View |
 | HT75NF75ASZ#C2874954HTCSEMI · TO-263 | HTCSEMI | TO-263 | 94 | ₹113.92 · 94 in stock | View |
 | RU6099S-R#C2803367Shenzhen ruichips Semicon · TO-263 | Shenzhen ruichips Semicon | TO-263 | 20 | ₹85.00 · 20 in stock | View |
 | HYG055N08NS1B#C2763408HUAYI · TO-263-2L | HUAYI | TO-263-2L | 24 | ₹72.38 · 24 in stock | View |
