onsemiDatasheet (PDF)

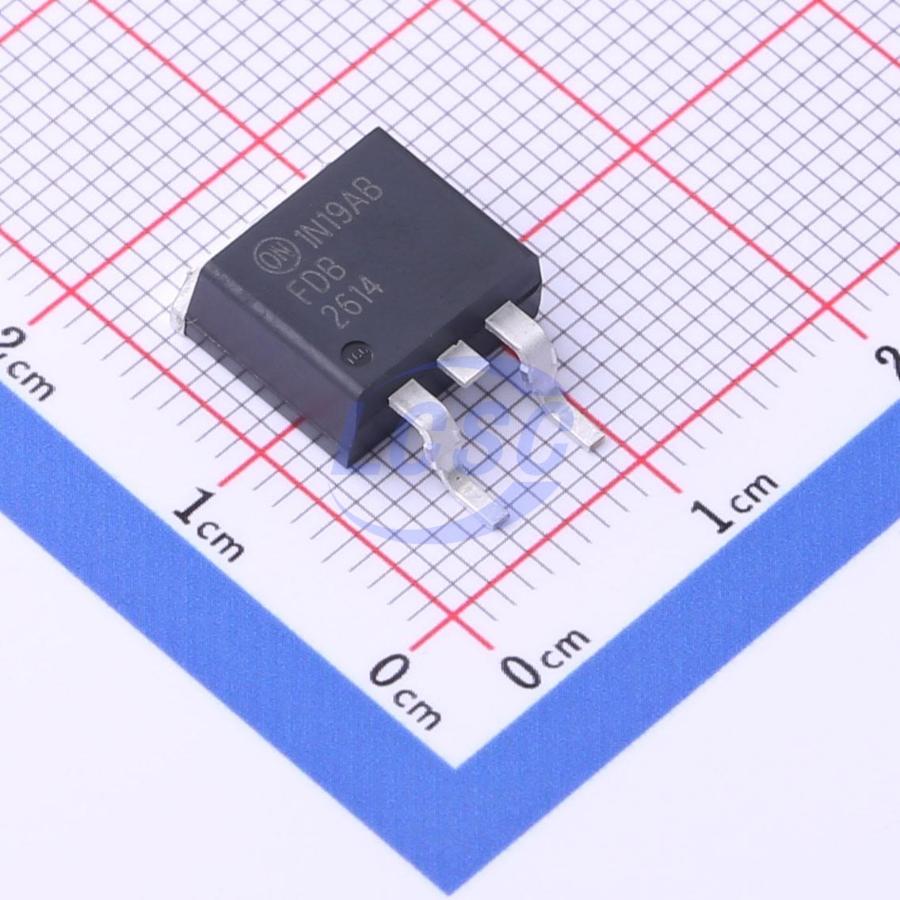

FDB2614
N-Channel 200V 62A 260W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)ROHS3 CompliantActive
MOSFET N-CH 200V 62A D2PAK(TO-263)
- Manufacturer
- onsemi
- Manufacturer part #
- FDB2614
- Store part #
- C898555
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C898555
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹696.23 | ₹696.23 |
| 10+ | ₹595.84 | ₹5,958.40 |
| 30+ | ₹536.29 | ₹16,088.70 |
| 100+ | ₹475.88 | ₹47,588.00 |
| 500+ | ₹448.07 | ₹2,24,035.00 |
| 800+ | ₹435.47 | ₹3,48,376.00 |
1 × ₹696.23
₹696.23
excl. GST
₹821.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FDB2614
₹696.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 505pF
- Ciss-Input Capacitance
- 7.23nF
- Pd - Power Dissipation
- 260W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 62A
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 22.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@100V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.8 g
Overview
This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Applications
- Synchronous Rectification
- Battery Protection Circuit
- Motor Drives and Uninterruptible Power Supplies
Key features
- RDS(on) = 22.9 mΩ (Typ.) @ VGS = 10 V, ID = 31 A
- High Performance Trench technology for Extremely Low RDS(on)
- Low Gate Charge
- High Power and Current Handing Capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HY1920B#C5377757HUAYI · TO-263-2L | HUAYI | TO-263-2L | 2 | ₹189.61 · 2 in stock | View |
 | MOT9176E#C54938524MOT · TO-263 | MOT | TO-263 | 18 | ₹268.89 · 18 in stock | View |
 | LW4227A5#C54221194Lewa Micro · TO-263 | Lewa Micro | TO-263 | 781 | ₹240.23 · 781 in stock | View |
 | XR100N20G#C42456885XNRUSEMI · TO-263 | XNRUSEMI | TO-263 | 127 | ₹188.42 · 127 in stock | View |
 | SFB096N200I3#C42395346SCILICON · TO-263 | SCILICON | TO-263 | 70 | ₹371.60 · 70 in stock | View |
