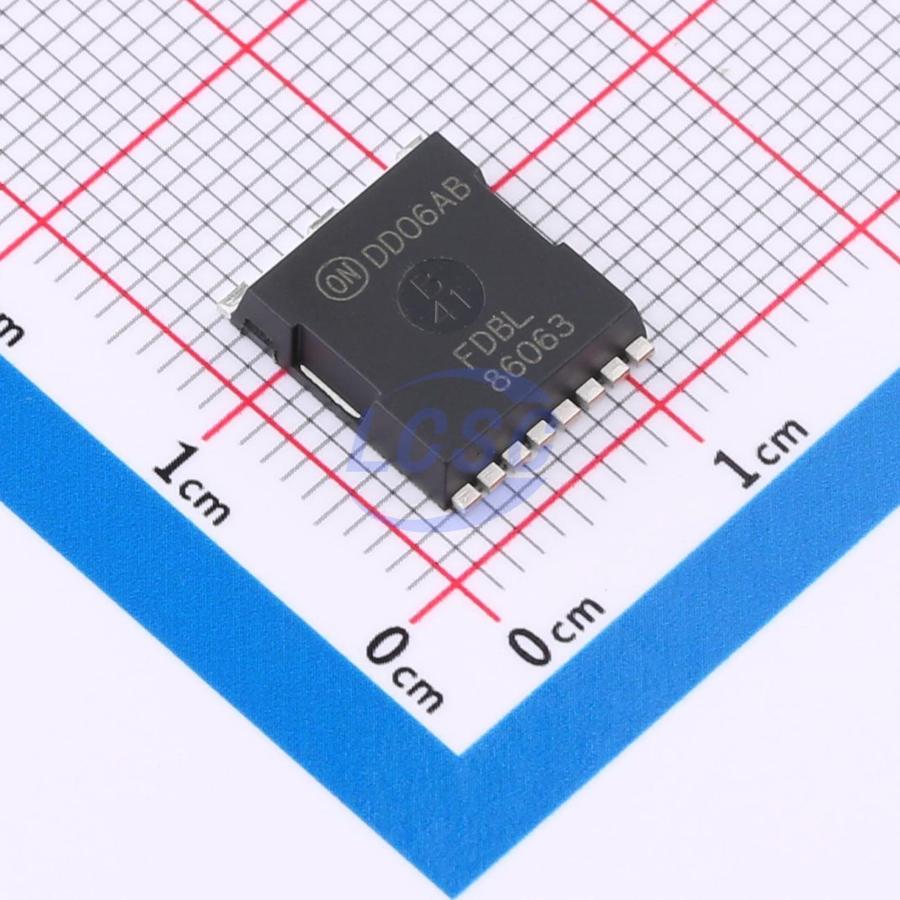

FDBL86063-F085
N-Channel 100V 357W MO-299A
MO-299AROHS3 CompliantActive
MOSFET N-CH 100V MO-299A
- Manufacturer
- onsemi
- Manufacturer part #
- FDBL86063-F085
- Store part #
- C900879
- Package / case
- MO-299A
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C900879
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹934.45 | ₹934.45 |
| 10+ | ₹889.04 | ₹8,890.40 |
| 30+ | ₹861.23 | ₹25,836.90 |
| 100+ | ₹837.99 | ₹83,799.00 |
1 × ₹934.45
₹934.45
excl. GST
₹1,102.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
FDBL86063-F085
₹934.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.22nF
- Ciss-Input Capacitance
- 5.12nF
- Pd - Power Dissipation
- 357W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 240A
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 73nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.394 g
Overview
Applications
- Automotive Engine Control
- Powertrain Management
- Solenoid and Motor Drivers
- Electronic Steering
- Integrated Starter/Alternator
- Distributed Power Architectures and VRM
- Primary Switch for 12V Systems
Key features
- Typical RDS(on)=2 mΩ at VGS=10V, ID=80 A
- Typical Qg(tot)=73 nC at VGS=10V, ID=80 A
- UIS Capability
- RoHS Compliant
- Qualified to AEC Q101
