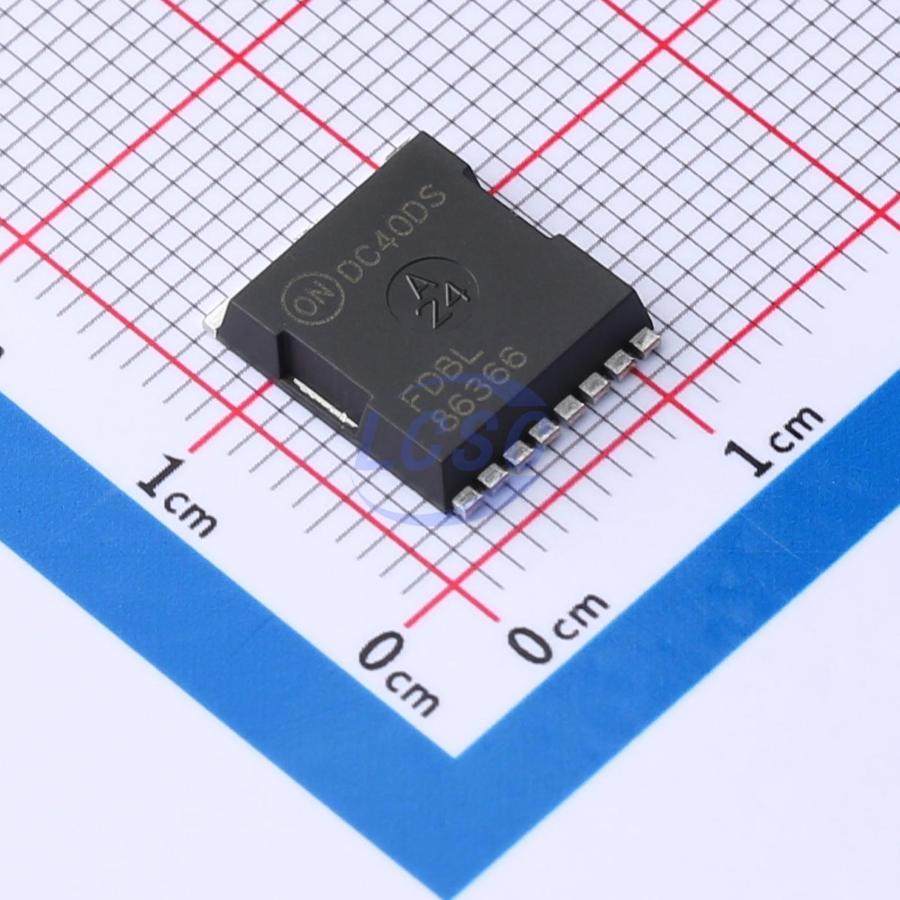

FDBL86366-F085
N-Channel 80V 220A 300W HPSOF-8
HPSOF-8ROHS3 CompliantActive
MOSFET N-CH 80V 220A HPSOF-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDBL86366-F085
- Store part #
- C900882
- Package / case
- HPSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C900882
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹319.44 | ₹319.44 |
| 10+ | ₹312.92 | ₹3,129.20 |
| 30+ | ₹308.35 | ₹9,250.50 |
| 100+ | ₹266.20 | ₹26,620.00 |
1 × ₹319.44
₹319.44
excl. GST
₹376.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
FDBL86366-F085
₹319.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.03nF
- Ciss-Input Capacitance
- 6.32nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 220A
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 86nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.93 g
Overview
Applications
- Automotive Engine Control
- PowerTrain Management
- Solenoid and Motor Drivers
- Integrated Starter/Alternator
- Primary Switch for 12 V Systems
Key features
- Typical RDS(on)=2.4 mΩ at VGS=10 V, ID=80 A
- Typical Qg(tot)=86 nC at VGS=10 Vz, ID=80 A
- UIS Capability
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDBL0150N80#C512891onsemi · HPSOF-8 | onsemi | HPSOF-8 | 114 | ₹345.37 · 114 in stock | View |
 | FDBL86361-F085#C900881onsemi · HPSOF-8 | onsemi | HPSOF-8 | 1 | ₹873.75 · 1 in stock | View |
 | FDBL86062-F085#C606101onsemi · HPSOF-8 | onsemi | HPSOF-8 | 48 | ₹952.85 · 48 in stock | View |
 | FDBL0240N100#C605016onsemi · HPSOF-8 | onsemi | HPSOF-8 | 9 | ₹996.46 · 9 in stock | View |
| FDBL86063#C900878onsemi · HPSOF-8 | onsemi | HPSOF-8 | On request | ₹582.86 · 0 in stock | View | |
