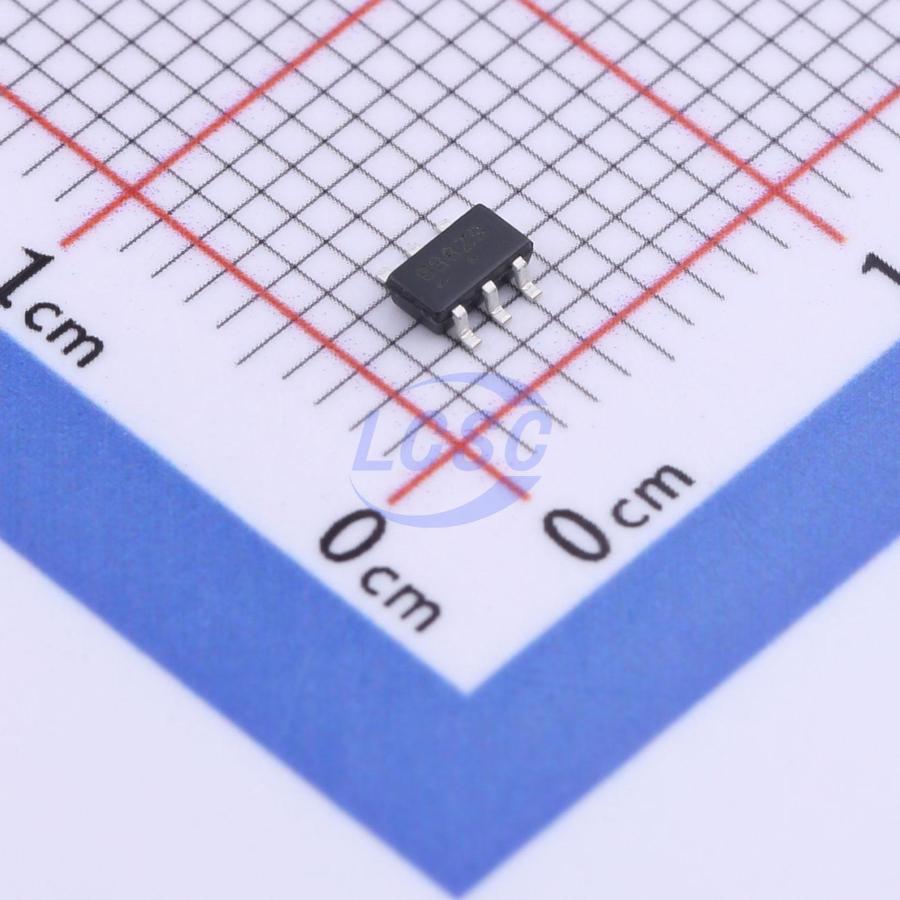

FDC638APZ
P-Channel 20V 4.5A 1.6W Surface Mount SuperSOT-6
SuperSOT-6ROHS3 CompliantActive
MOSFET P-CH 20V 4.5A SuperSOT-6
- Manufacturer
- onsemi
- Manufacturer part #
- FDC638APZ
- Store part #
- C241771
- Package / case
- SuperSOT-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
117 in stock
#C241771
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.32 | ₹59.32 |
| 10+ | ₹47.28 | ₹472.80 |
| 30+ | ₹42.01 | ₹1,260.30 |
| 100+ | ₹35.68 | ₹3,568.00 |
| 500+ | ₹32.72 | ₹16,360.00 |
| 1,000+ | ₹31.04 | ₹31,040.00 |
1 × ₹59.32
₹59.32
excl. GST
₹70.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC638APZ
₹59.32 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 210pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 1.6W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4.5A
- Reverse Transfer Capacitance (Crss)
- 195pF
- RDS(on)
- 43mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
This 2.5V specific P-channel MOSFET is manufactured using the advanced PowerTrench® process, which is specially optimized to minimize on-resistance while maintaining low gate charge for superior switching performance. These devices are ideal for battery-powered applications such as load switching and power management, battery charging circuits, and DC/DC conversion.
Applications
- DC-DC conversion
Key features
- Maximum rDS(on) = 43 mΩ at VGS = -4.5 V, ID = -4.5 A
- Maximum rDS(on) = 68 mΩ at VGS = -2.5 V, ID = -3.8 A
- Low gate charge (typical 8nC)
- High-performance trench technology for ultra-low rDS(on)
- SuperSOT-6 package: small footprint (72% smaller than standard SO-8), low profile (1mm)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| FDC638P#C241772onsemi · SuperSOT-6 | onsemi | SuperSOT-6 | 65 | ₹58.03 · 65 in stock | View | |
 | DMP2035UVT-7#C260934DIODES · TSOT-26 | DIODES | TSOT-26 | 5,055 | ₹23.01 · 5,055 in stock | View |
 | DMP2040UVT-13#C3276274DIODES · TSOT-26 | DIODES | TSOT-26 | 10 | ₹17.60 · 10 in stock | View |
 | FDC610PZ#C241761onsemi · SuperSOT-6 | onsemi | SuperSOT-6 | 49 | ₹58.46 · 49 in stock | View |
 | SI3433CDV-T1-GE3#C727335VISHAY · TSOP-6 | VISHAY | TSOP-6 | 1,767 | ₹68.24 · 1,767 in stock | View |
