onsemiDatasheet (PDF)

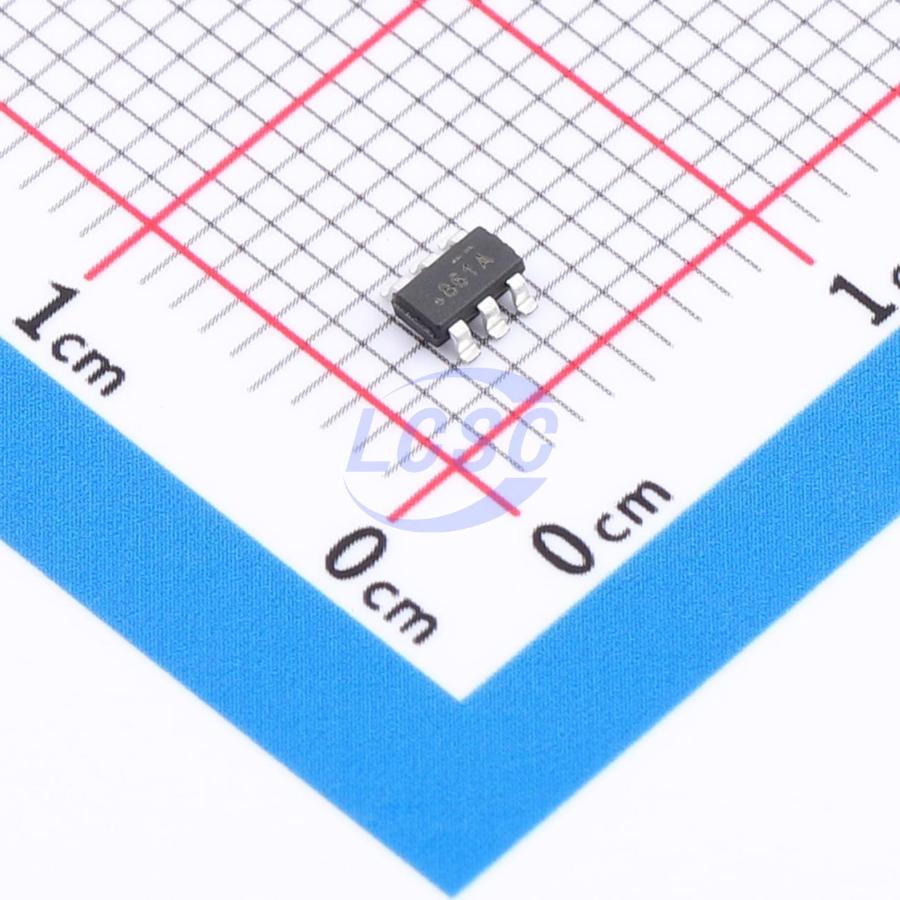

FDC8601
1.6W 100V 2.7A 109mΩ@10V 1 N-channel N-Channel SSOT-6 Single FETs, MOSFETs RoHS
SSOT-6ROHS3 CompliantActive
MOSFET N-CH 100V 2.7A SSOT-6
- Manufacturer
- onsemi
- Manufacturer part #
- FDC8601
- Store part #
- C890876
- Package / case
- SSOT-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C890876
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹357.87 | ₹357.87 |
| 10+ | ₹318.33 | ₹3,183.30 |
| 30+ | ₹293.40 | ₹8,802.00 |
| 100+ | ₹267.81 | ₹26,781.00 |
| 500+ | ₹256.42 | ₹1,28,210.00 |
| 1,000+ | ₹251.49 | ₹2,51,490.00 |
1 × ₹357.87
₹357.87
excl. GST
₹422.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC8601
₹357.87 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 46pF
- Ciss-Input Capacitance
- 210pF
- Pd - Power Dissipation
- 1.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 2.7A
- Reverse Transfer Capacitance (Crss)
- 2.2pF
- RDS(on)
- 109mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
This N-channel MOSFET is manufactured using an advanced PowerTrench process with integrated shield gate technology. The process is optimized for on-resistance (rDS(on)), switching performance, and durability.
Applications
- Load Switch - Synchronous Rectifier - Primary Switch
Key features
- Shielded gate MOSFET technology
- Maximum on-resistance (rDS(on)) = 109 mΩ at VGS = 10 V, ID = 2.7 A
- Maximum on-resistance (rDS(on)) = 176 mΩ at VGS = 6 V, ID = 2.1 A
- High-performance trench technology for ultra-low rDS(on)
- Widely used SMT package with high power and current handling capability
- Fast switching speed
- 100% UI1L tested
- RoHS compliant
- SuperSOT-6 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM1004NS6#C5371020TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,020 | ₹16.55 · 2,020 in stock | View |
