onsemiDatasheet (PDF)

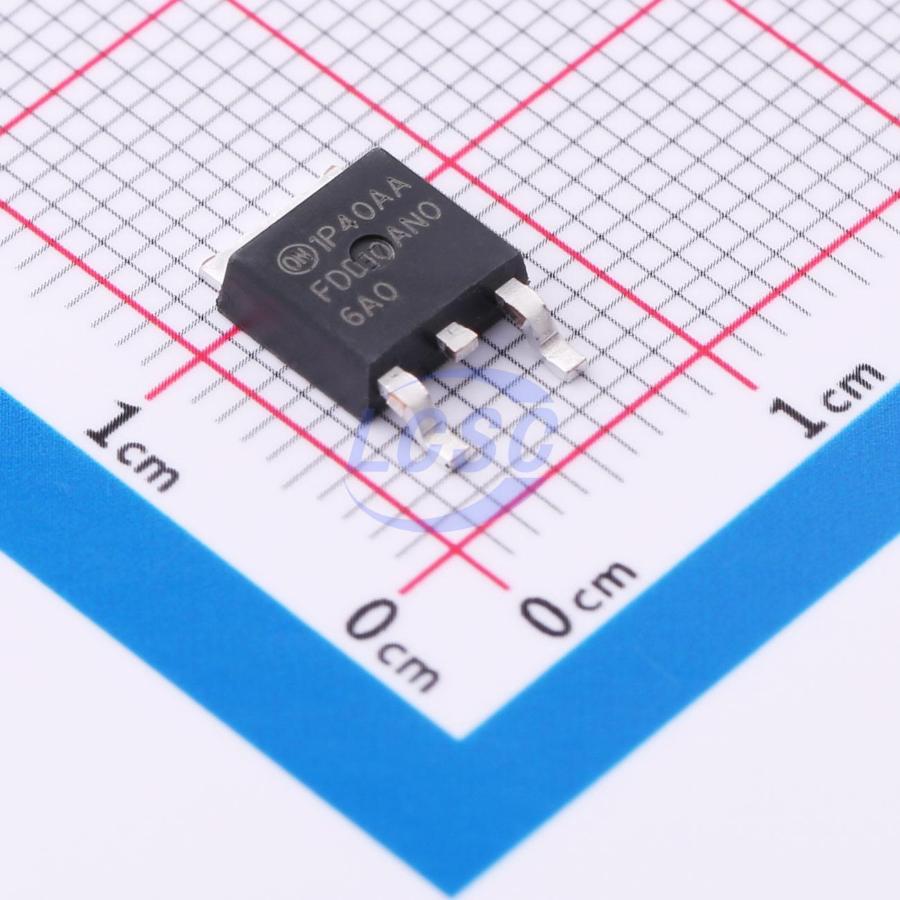

FDD10AN06A0
N-Channel 60V 50A 135W Surface Mount DPAK-3
DPAK-3ROHS3 CompliantActive
MOSFET N-CH 60V 50A DPAK-3
- Manufacturer
- onsemi
- Manufacturer part #
- FDD10AN06A0
- Store part #
- C236889
- Package / case
- DPAK-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C236889
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹454.94 | ₹454.94 |
| 10+ | ₹392.47 | ₹3,924.70 |
| 30+ | ₹353.20 | ₹10,596.00 |
| 100+ | ₹313.27 | ₹31,327.00 |
| 500+ | ₹295.06 | ₹1,47,530.00 |
| 1,000+ | ₹287.25 | ₹2,87,250.00 |
1 × ₹454.94
₹454.94
excl. GST
₹536.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD10AN06A0
₹454.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 340pF
- Ciss-Input Capacitance
- 1.84nF
- Pd - Power Dissipation
- 135W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 10.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 37nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Applications
- Motor / Body Load Control
- ABS Systems
- Powertrain Management
- Injection Systems
- DC-DC converters and Off-line UPS
- Distributed Power Architectures and VRMs
- Primary Switch for 12V and 24V systems
Key features
- RDS(ON)=9.4mΩ (Typ.), VGS=10V, ID=50A
- Qg(tot)=28nC (Typ.), VGS=10V
- Low Miller Charge
- Low Qrr Body Diode
- UIS Capability (Single Pulse and Repetitive Pulse)
- Qualified to AEC Q101
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NVD5862NT4G-VF01#C887731onsemi · DPAK-3 | onsemi | DPAK-3 | On request | ₹257.71 · 0 in stock | View | |
| NP60N055VUK-E1-AY#C6622210RENESAS · TO-252-3 | RENESAS | TO-252-3 | On request | ₹230.98 · 0 in stock | View | |
