HXY MOSFETDatasheet (PDF)

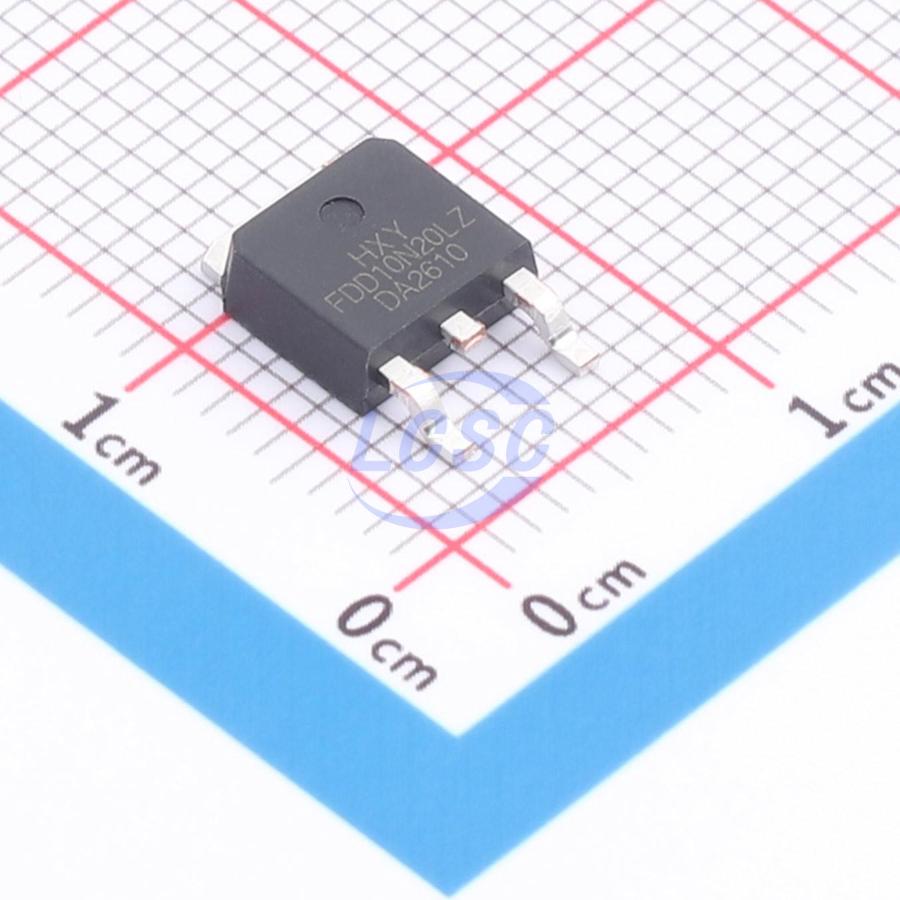

FDD10N20LZTM-HXY
72W 200V 9A 235mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDD10N20LZTM-HXY
- Store part #
- C54582607
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C54582607
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.53 | ₹85.53 |
| 10+ | ₹69.46 | ₹694.60 |
| 30+ | ₹61.31 | ₹1,839.30 |
| 100+ | ₹53.38 | ₹5,338.00 |
| 500+ | ₹48.45 | ₹24,225.00 |
| 1,000+ | ₹46.09 | ₹46,090.00 |
1 × ₹85.53
₹85.53
excl. GST
₹100.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD10N20LZTM-HXY
₹85.53 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 85pF
- Ciss-Input Capacitance
- 720pF
- Pd - Power Dissipation
- 72W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 235mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
