MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

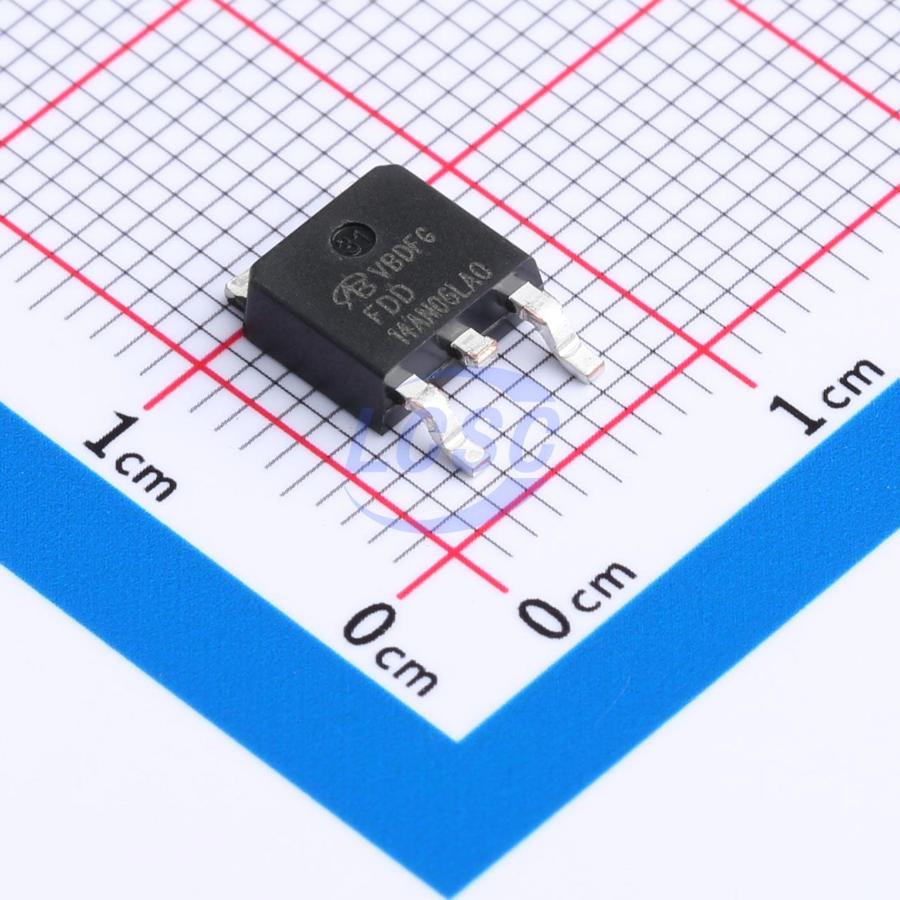

FDD14AN06LA0-VB
N-Channel 60V 58A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD14AN06LA0-VB
- Store part #
- C5179583
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5179583
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.81 | ₹87.81 |
| 10+ | ₹71.84 | ₹718.40 |
| 30+ | ₹63.86 | ₹1,915.80 |
| 100+ | ₹55.88 | ₹5,588.00 |
| 500+ | ₹48.95 | ₹24,475.00 |
| 1,000+ | ₹46.42 | ₹46,420.00 |
1 × ₹87.81
₹87.81
excl. GST
₹103.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD14AN06LA0-VB
₹87.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
Applications
- Mobile Computing
- Load Switch
- Notebook Adapter Switch
- DC/DC Converter
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- Material classification: RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD5353-VB#C18212542VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹86.92 · 30 in stock | View |
 | IRFR2905ZTRPBF-VB#C18212554VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 12 | ₹106.49 · 12 in stock | View |
 | SSF6014D-VB#C18212606VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹105.83 · 35 in stock | View |
 | 4N0609 TO252-VB#C19188174VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 16 | ₹72.61 · 16 in stock | View |
 | AUIRFR48ZTR-VB#C19188240VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 60 | ₹86.92 · 60 in stock | View |
