VBsemi ElecDatasheet (PDF)

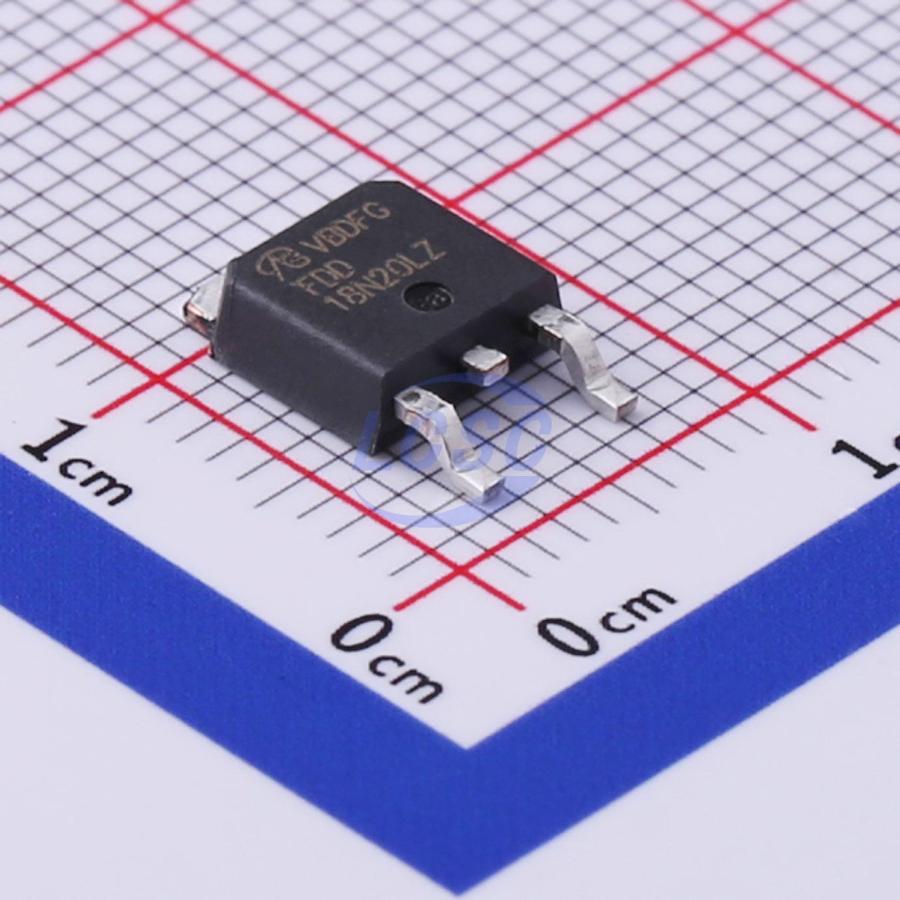

FDD18N20LZ-VB
N-Channel 200V 30A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD18N20LZ-VB
- Store part #
- C725023
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C725023
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹255.55 | ₹255.55 |
| 10+ | ₹221.66 | ₹2,216.60 |
| 30+ | ₹200.57 | ₹6,017.10 |
| 100+ | ₹142.76 | ₹14,276.00 |
| 500+ | ₹132.99 | ₹66,495.00 |
| 1,000+ | ₹128.86 | ₹1,28,860.00 |
1 × ₹255.55
₹255.55
excl. GST
₹301.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD18N20LZ-VB
₹255.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 55mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.481 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant 2002/95/EC
