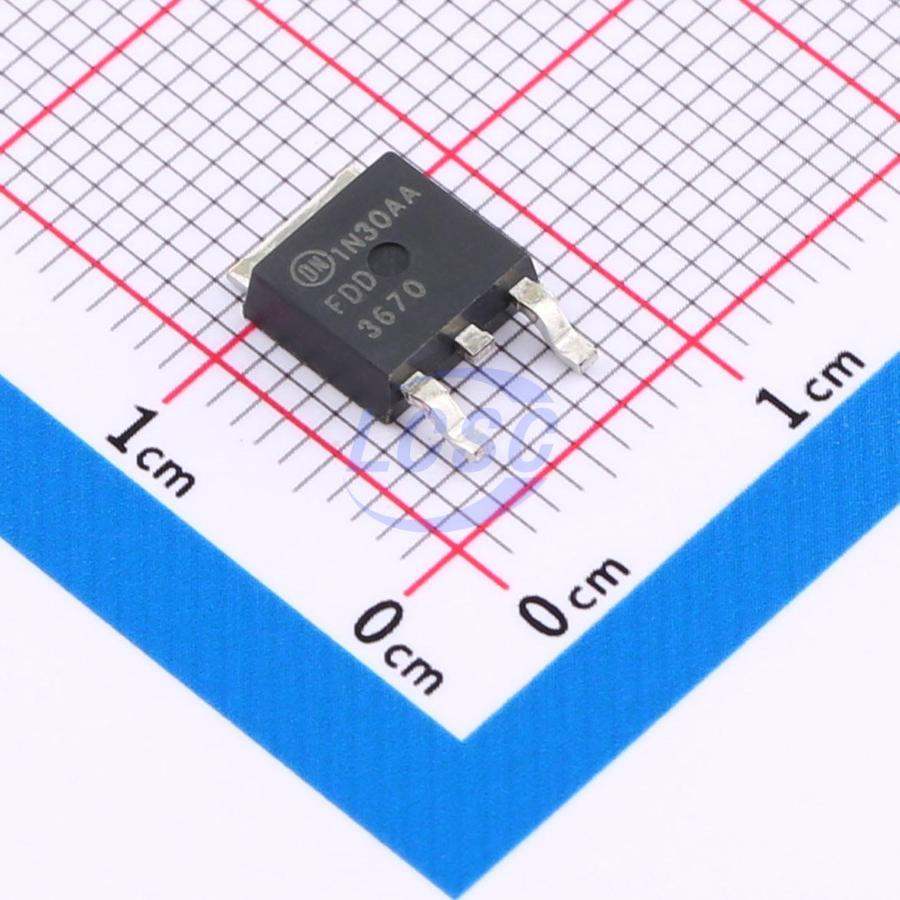

FDD3670
N-Channel 100V 20A 83W Surface Mount TO-252-2
TO-252-2ROHS3 CompliantActive
MOSFET N-CH 100V 20A TO-252-2
- Manufacturer
- onsemi
- Manufacturer part #
- FDD3670
- Store part #
- C236890
- Package / case
- TO-252-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C236890
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.35 | ₹220.35 |
| 10+ | ₹185.14 | ₹1,851.40 |
| 30+ | ₹165.80 | ₹4,974.00 |
| 100+ | ₹131.69 | ₹13,169.00 |
| 500+ | ₹121.91 | ₹60,955.00 |
| 1,000+ | ₹117.56 | ₹1,17,560.00 |
1 × ₹220.35
₹220.35
excl. GST
₹260.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD3670
₹220.35 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 265pF
- Ciss-Input Capacitance
- 2.49nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 32mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.406 g
Overview
This N-channel MOSFET is designed to improve the overall efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. Compared to other MOSFETs with similar RDS(ON) specifications, these MOSFETs feature faster switching speeds and lower gate charge. As a result, the MOSFET is easy to drive and safer to operate (even at very high frequencies), enabling higher overall efficiency in DC/DC power supply designs.
Key features
- Low gate charge (typical 57 nC)
- Fast switching speed
- High-performance trench technology for ultra-low RDS(ON)
- High power and current handling capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST36N10D#C2682822STANSON Tech. · TO-252 | STANSON Tech. | TO-252 | 4 | ₹46.54 · 4 in stock | View |
 | TPM10040NK3#C23380918TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 765 | ₹48.38 · 765 in stock | View |
 | NCE0130KA#C502817NCE · TO-252-2L | NCE | TO-252-2L | 409 | ₹83.19 · 409 in stock | View |
| IRFR3410TR(UMW)#C42420620UMW · TO-252 | UMW | TO-252 | 2,455 | ₹38.13 · 2,455 in stock | View | |
 | YFW40N10AD#C55073162YFW · TO-252 | YFW | TO-252 | 30 | ₹34.07 · 30 in stock | View |
