VBsemi ElecDatasheet (PDF)

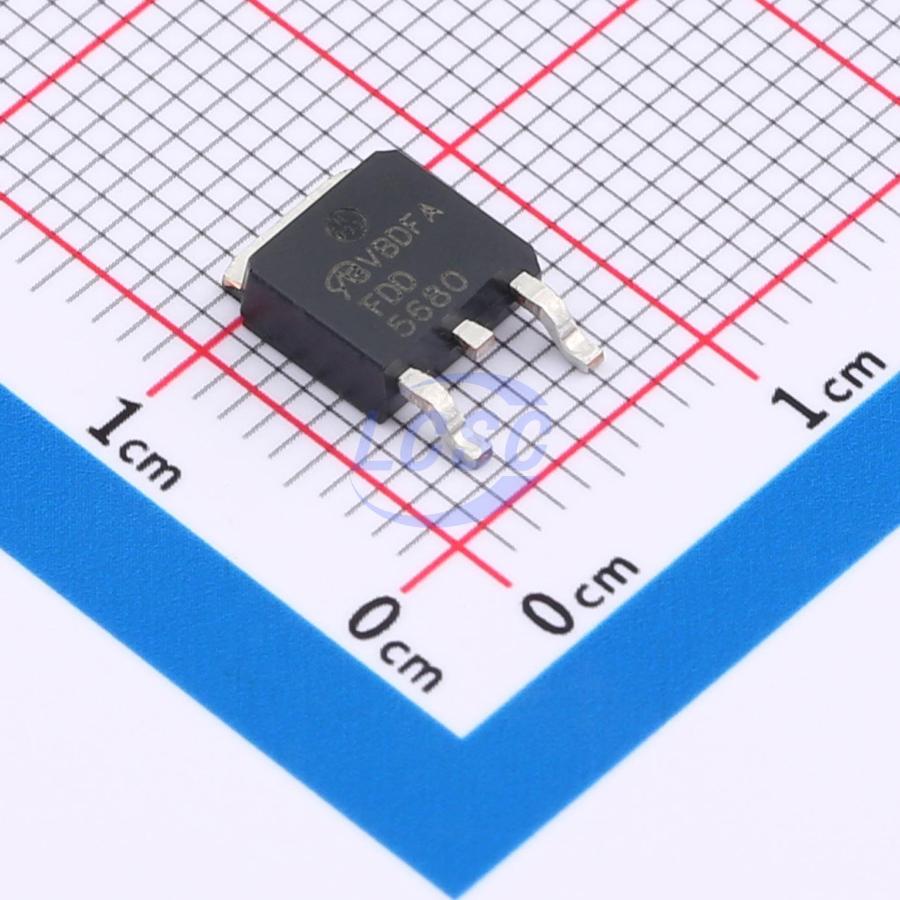

FDD5680-VB
N-Channel 60V 45A 100W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD5680-VB
- Store part #
- C7568993
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568993
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.51 | ₹76.51 |
| 10+ | ₹60.78 | ₹607.80 |
| 30+ | ₹53.98 | ₹1,619.40 |
| 100+ | ₹45.48 | ₹4,548.00 |
| 500+ | ₹41.66 | ₹20,830.00 |
| 1,000+ | ₹39.53 | ₹39,530.00 |
1 × ₹76.51
₹76.51
excl. GST
₹90.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD5680-VB
₹76.51 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.505 g
Overview
Key features
- Trench Power MOSFET
- 175°C junction temperature rated
- RoHS compliant
- Drain connected to heatsink
- N-Channel MOSFET
