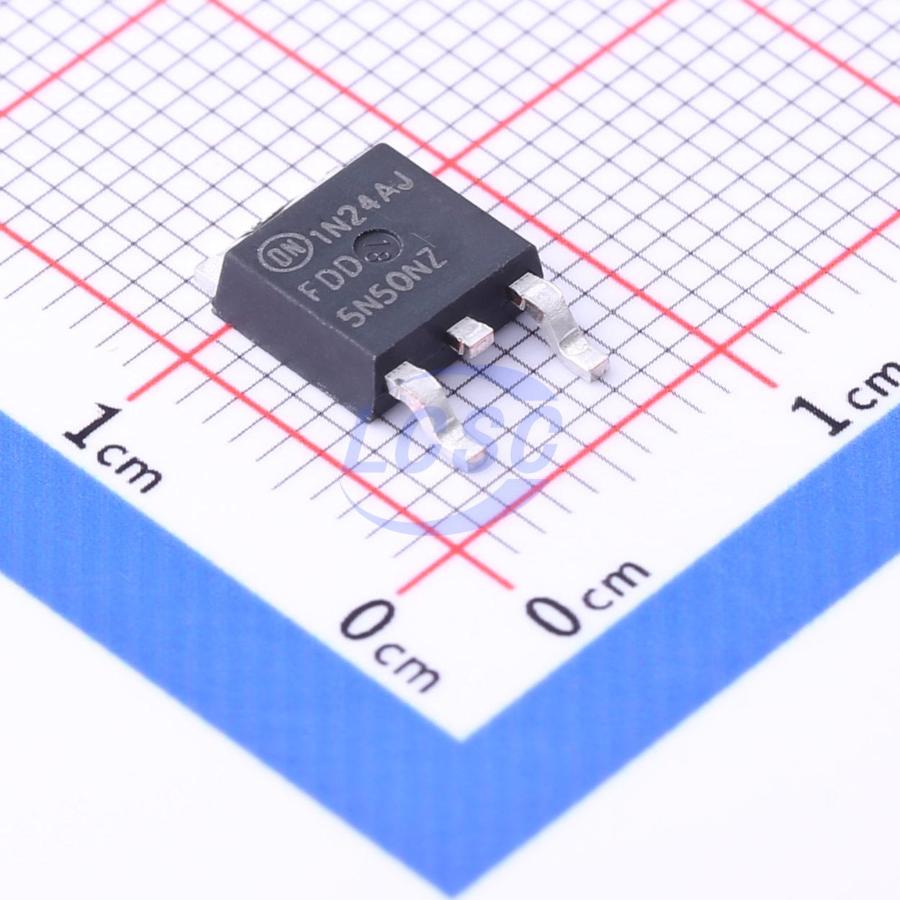

FDD5N50NZTM
62W 500V 4A 1.38Ω@10V 1 N-channel N-Channel TO-252AA Single FETs, MOSFETs RoHS
TO-252AAROHS3 CompliantActive
MOSFET N-CH 500V 4A TO-252AA
- Manufacturer
- onsemi
- Manufacturer part #
- FDD5N50NZTM
- Store part #
- C903576
- Package / case
- TO-252AA
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C903576
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.14 | ₹124.14 |
| 10+ | ₹100.84 | ₹1,008.40 |
| 30+ | ₹89.08 | ₹2,672.40 |
| 100+ | ₹77.32 | ₹7,732.00 |
| 500+ | ₹70.57 | ₹35,285.00 |
| 1,000+ | ₹66.86 | ₹66,860.00 |
1 × ₹124.14
₹124.14
excl. GST
₹146.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD5N50NZTM
₹124.14 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 50pF
- Ciss-Input Capacitance
- 440pF
- Pd - Power Dissipation
- 62W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.38Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.372 g
Overview
UniFET™ II MOSFETs are based on advanced planar stripe and DMOS technology. This advanced MOSFET series features the lowest on-resistance among planar MOSFETs, combined with excellent switching performance and higher avalanche energy capability. In addition, the integrated gate-to-source ESD diode enables UniFET™ II MOSFETs to withstand HBM surge stress in excess of 2kV. This device family is suitable for switching power converter applications such as Power Factor Correction (PFC), Flat Panel Display (FPD) TV power supplies, ATX, and electronic lamp ballasts.
Applications
- LCD/LED/PDP TVs - Lighting - Uninterruptible Power Supplies
Key features
- RDS(on) = 1.38 Ω (typ.) @ VGS = 10 V, ID = 2 A
- Low gate charge (typ. 9 nC)
- Low Crss (typ. 4 pF)
- 100% avalanche tested
- Improved dv/dt capability
- Enhanced ESD capability
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WMO5N50D1B#C39482354Wayon · TO-252 | Wayon | TO-252 | 1,610 | ₹25.00 · 1,610 in stock | View |
 | BMD80N900E2#C55805900Bestirpower · DPAK | Bestirpower | DPAK | 10 | ₹52.88 · 10 in stock | View |
| IPD60R600C6#C536829Infineon · TO-252 | Infineon | TO-252 | 1,322 | ₹122.36 · 1,322 in stock | View | |
| KIA5N50SD#C20623380KIA Semicon Tech · TO-252 | KIA Semicon Tech | TO-252 | 2,470 | ₹21.09 · 2,470 in stock | View | |
 | STD6N95K5#C455168ST · DPAK | ST | DPAK | 1,27,315 | ₹135.08 · 1,27,315 in stock | View |
