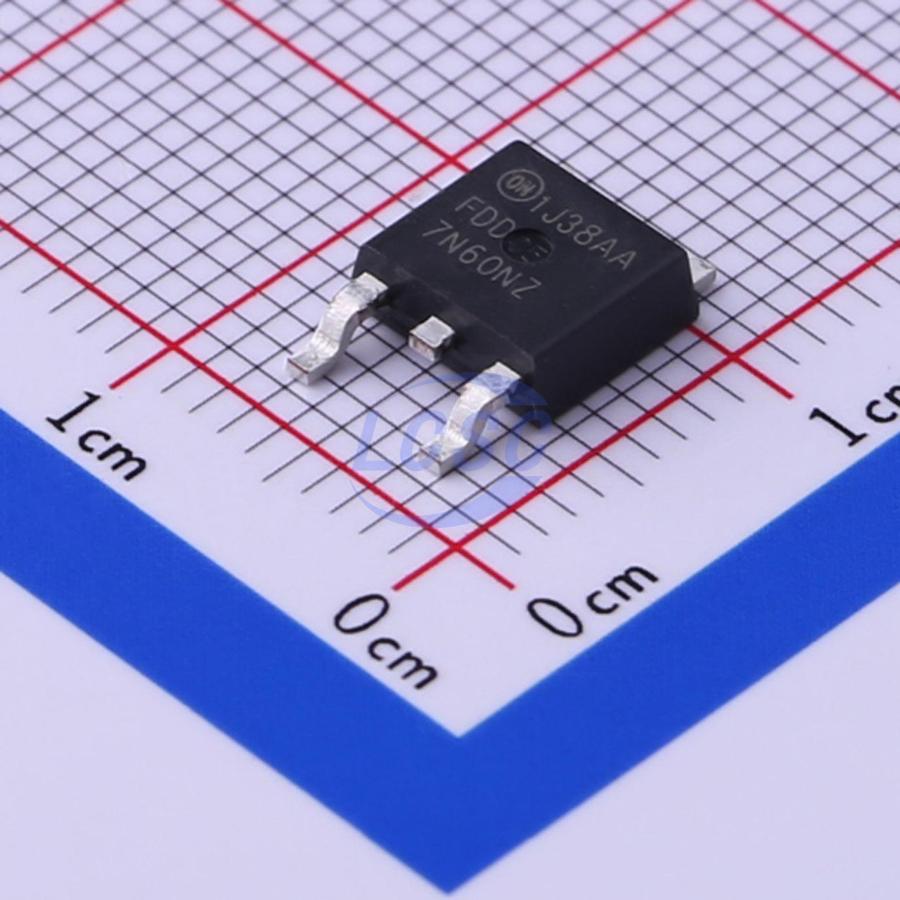

FDD7N60NZTM
N-Channel 600V 5.5A 90W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 600V 5.5A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD7N60NZTM
- Store part #
- C463713
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C463713
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹213.12 | ₹213.12 |
| 10+ | ₹182.22 | ₹1,822.20 |
| 30+ | ₹162.90 | ₹4,887.00 |
| 100+ | ₹142.96 | ₹14,296.00 |
| 500+ | ₹134.02 | ₹67,010.00 |
| 1,000+ | ₹130.16 | ₹1,30,160.00 |
1 × ₹213.12
₹213.12
excl. GST
₹251.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD7N60NZTM
₹213.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 5.5A
- Ciss-Input Capacitance
- 730pF
- Pd - Power Dissipation
- 90W
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 1.05Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.371 g
Overview
UniFETTM II MOSFET is a high voltage MOSFET family based on advanced planar stripe and DMOS technology. This advanced MOSFET family has the smallest onstate resistance among the planar MOSFET, and also provides superior switching performance and higher avalanche energy strength. In addition, internal gate-source ESD diode allows UniFETTM II MOSFET to withstand over 2kV HBM surge stress. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Applications
- Lighting
- Uninterruptible Power Supply
Key features
- RDS(on)=1.05 Ω (Typ.) @ VGS = 10 V, ID = 2.75 A
- Low Gate Charge (Typ. 13 nC)
- Low Crss (Typ. 7 pF)
- 100% Avalanche Tested
- Improved dv/dt Capability
- ESD Improved Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD6N95K5#C455168ST · DPAK | ST | DPAK | 1,27,315 | ₹135.08 · 1,27,315 in stock | View |
 | OSG65R380DEF#C708899ORIENTAL SEMI · TO-252 | ORIENTAL SEMI | TO-252 | 2,360 | ₹81.50 · 2,360 in stock | View |
 | RS7N65D#C5371922REASUNOS · TO-252 | REASUNOS | TO-252 | 1,806 | ₹23.25 · 1,806 in stock | View |
 | IPD80R1K0CE#C536877Infineon · TO-252 | Infineon | TO-252 | 6 | ₹138.61 · 6 in stock | View |
 | WMO15N70C2#C7498780Wayon · TO-252 | Wayon | TO-252 | 1,181 | ₹65.28 · 1,181 in stock | View |
