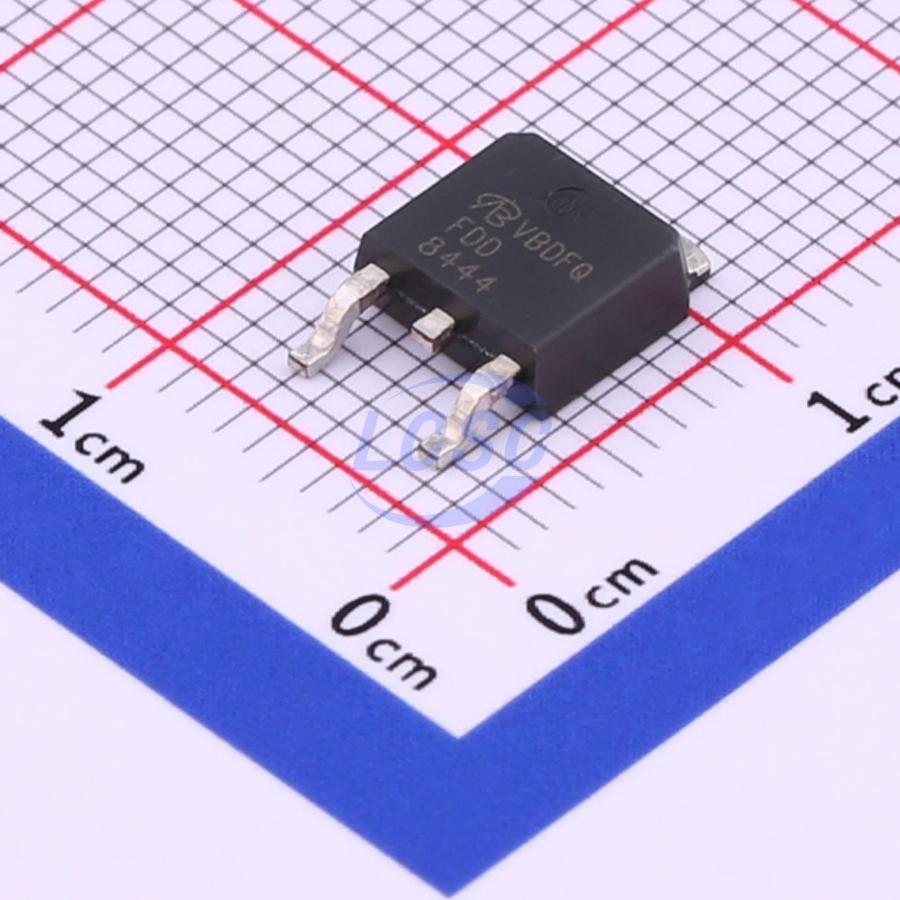

FDD8444-NL-VB
40V 85A 3.13W 1 N-channel TO-252-2 Single FETs, MOSFETs
TO-252-2RoHSActive
MOSFET N-CH 40V 85A TO-252-2
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD8444-NL-VB
- Store part #
- C693268
- Package / case
- TO-252-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C693268
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.71 | ₹91.71 |
| 10+ | ₹75.19 | ₹751.90 |
| 30+ | ₹66.93 | ₹2,007.90 |
| 100+ | ₹58.68 | ₹5,868.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹91.71
₹91.71
excl. GST
₹108.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD8444-NL-VB
₹91.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 2.38nF
- Pd - Power Dissipation
- 3.13W
- Reverse Transfer Capacitance (Crss)
- 250pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.397 g
Overview
Applications
- Synchronous Rectification - Power Supply
Key features
- Trench power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APM4018NUC-TRL-VB#C29779086VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹82.56 · 20 in stock | View |
 | VBE1405#C416254VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 674 | ₹106.87 · 674 in stock | View |
 | 50N04-VB#C4355077VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 84 | ₹85.92 · 84 in stock | View |
 | APM4010NUC-TRL-VB#C5438926VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹89.04 · 50 in stock | View |
 | IRFR4104TRPBF-VB#C558163VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 190 | ₹100.11 · 190 in stock | View |
