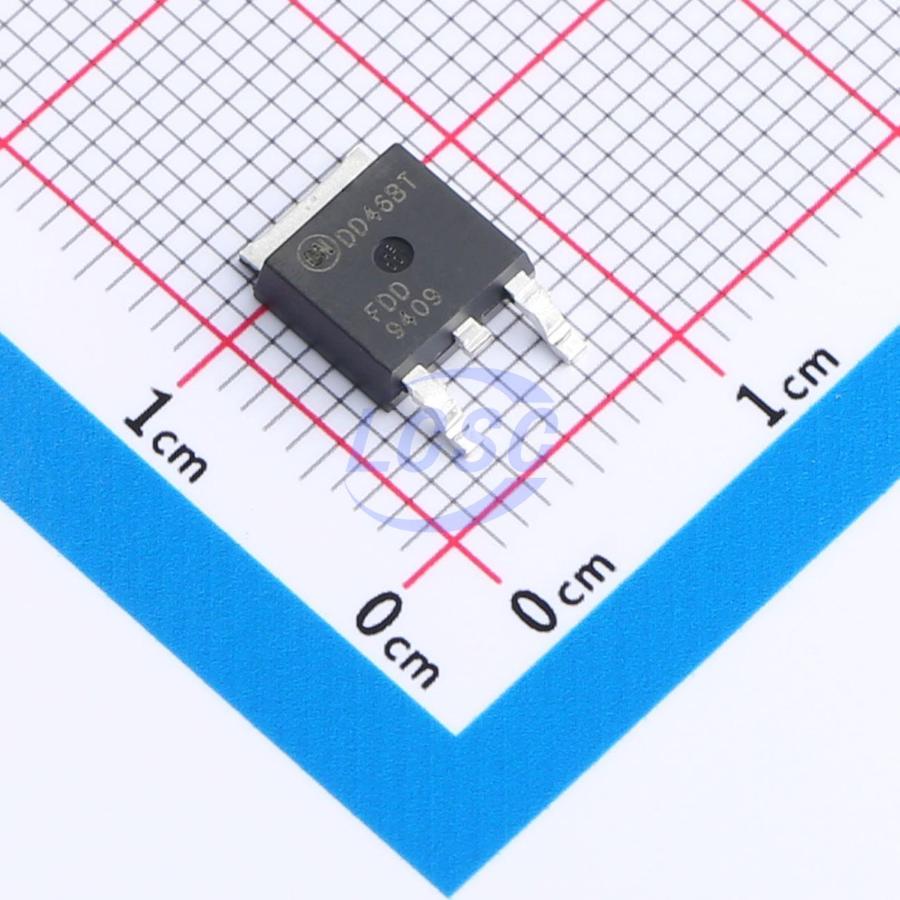

FDD9409-F085
N-Channel 40V 90A 150W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 40V 90A DPAK(TO-252)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD9409-F085
- Store part #
- C258219
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C258219
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹196.02 | ₹196.02 |
| 10+ | ₹191.70 | ₹1,917.00 |
| 30+ | ₹188.83 | ₹5,664.90 |
| 100+ | ₹185.96 | ₹18,596.00 |
1 × ₹196.02
₹196.02
excl. GST
₹231.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD9409-F085
₹196.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 756pF
- Current - Continuous Drain(Id)
- 90A
- Ciss-Input Capacitance
- 3.13nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 48pF
- RDS(on)
- 3.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.517 g
Overview
The FDS8882 is designed to minimize losses in power conversion applications. Combining advances in silicon technology and packaging, it achieves the lowest on-state drain-source resistance (rDS(on)) while maintaining excellent switching performance.
Applications
- Automotive engine control
- Powertrain management
- Solenoid and motor drivers
- Electronic steering systems
- Integrated starter/alternator
- Distributed power architecture and voltage regulator modules
- 12V system main switch
Key features
- Typical R<sub>DS(on)</sub> = 2.3 mΩ at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 80 A
- Typical Q<sub>g(tot)</sub> = 42 nC at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 80 A
- Single-pulse avalanche rated
- RoHS compliant
- AEC Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IXTY90N055T2#C3291029Littelfuse/IXYS · TO-252AA | Littelfuse/IXYS | TO-252AA | 66 | ₹425.54 · 66 in stock | View | |
 | NP90N04VUK-E1-AY#C3281222RENESAS · TO-252 | RENESAS | TO-252 | 20 | ₹242.62 · 20 in stock | View |
 | IPD90N04S404ATMA1#C3279105Infineon · TO-252-3-313 | Infineon | TO-252-3-313 | 4 | ₹479.53 · 4 in stock | View |
 | IPD068N10N3G#C88066Infineon · TO-252-3 | Infineon | TO-252-3 | 787 | ₹262.56 · 787 in stock | View |
 | IPD90N06S404ATMA2#C3289153Infineon · TO-252 | Infineon | TO-252 | 1,963 | ₹270.75 · 1,963 in stock | View |
