onsemiDatasheet (PDF)

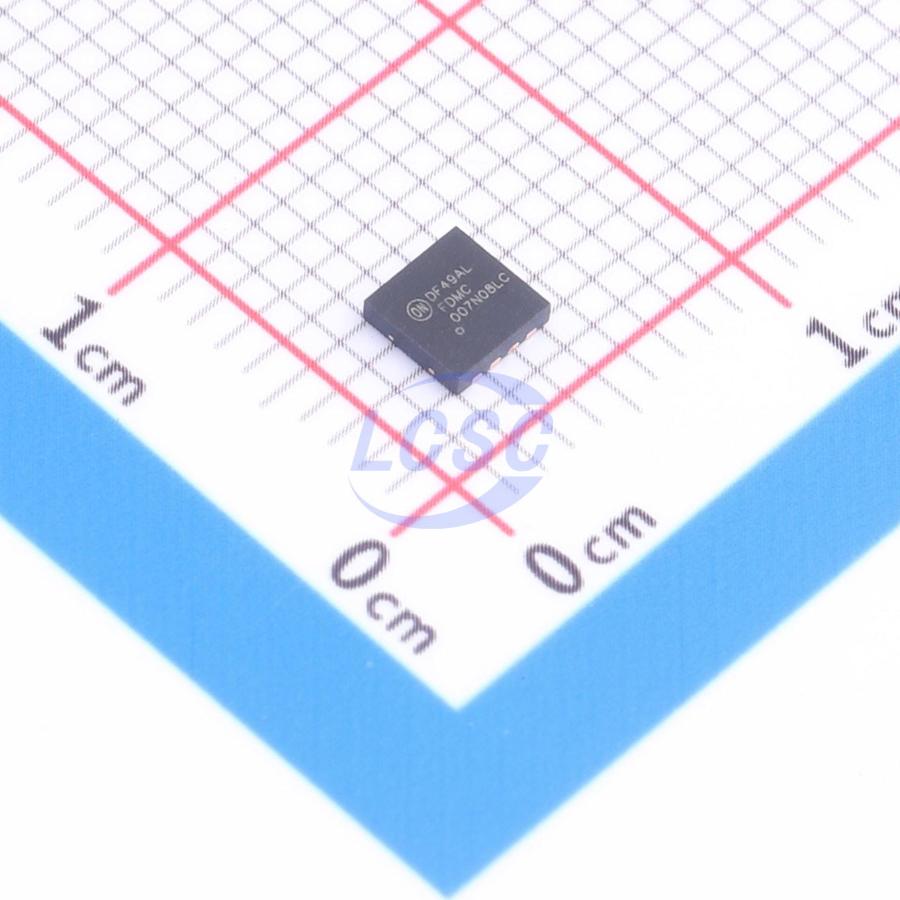

FDMC007N08LC
57W 80V 66A 7mΩ@10V 1 N-channel N-Channel PQFN-8(3.3x3.3) Single FETs, MOSFETs RoHS
PQFN-8(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC007N08LC
- Store part #
- C890916
- Package / case
- PQFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C890916
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹692.47 | ₹692.47 |
| 10+ | ₹597.33 | ₹5,973.30 |
| 30+ | ₹540.74 | ₹16,222.20 |
| 100+ | ₹483.49 | ₹48,349.00 |
| 500+ | ₹457.15 | ₹2,28,575.00 |
| 1,000+ | ₹445.18 | ₹4,45,180.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Output Capacitance(Coss)
- 506pF
- Ciss-Input Capacitance
- 2.94nF
- Pd - Power Dissipation
- 57W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 66A
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.228 g
Overview
This N-channel MV MOSFET is manufactured using Fairchild Semiconductor's advanced PowerTrench® process, which incorporates shielded gate technology. The process is optimized to minimize on-resistance while maintaining superior switching performance through a best-in-class soft body diode.
Applications
- Primary DC-DC MOSFET
- Synchronous rectifier in DC-DC and AC-DC
- Motor drive
- Solar energy
Key features
- Shielded Gate MOSFET technology
- Maximum rDS(on) = 7.0 mΩ at VGS = 10 V, ID = 21 A
- Maximum rDS(on) = 10.4 mΩ at VGS = 4.5 V, ID = 17 A
- 5V drive capability
- Qrr 50% lower than competing MOSFET suppliers
- Reduced switching noise/EMI
- MSL1 robust package design
- 100% UIL tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMC007N08LCDC#C890917onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 10 | ₹409.61 · 10 in stock | View |
 | SISS32LDN-T1-GE3#C3279461VISHAY · PowerPAK1212-8SH | VISHAY | PowerPAK1212-8SH | 45 | ₹295.51 · 45 in stock | View |
 | SQS180ELNW-T1_GE3#C20346179VISHAY · PowerPAK1212-8SLW | VISHAY | PowerPAK1212-8SLW | 88 | ₹240.23 · 88 in stock | View |
 | NTTFS5D6N08XLTAG#C50759353onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 35 | ₹208.80 · 35 in stock | View |
 | SQS180ENW-T1_GE3#C20346180VISHAY · PowerPAK1212-8SLW | VISHAY | PowerPAK1212-8SLW | 75 | ₹160.96 · 75 in stock | View |
