onsemiDatasheet (PDF)

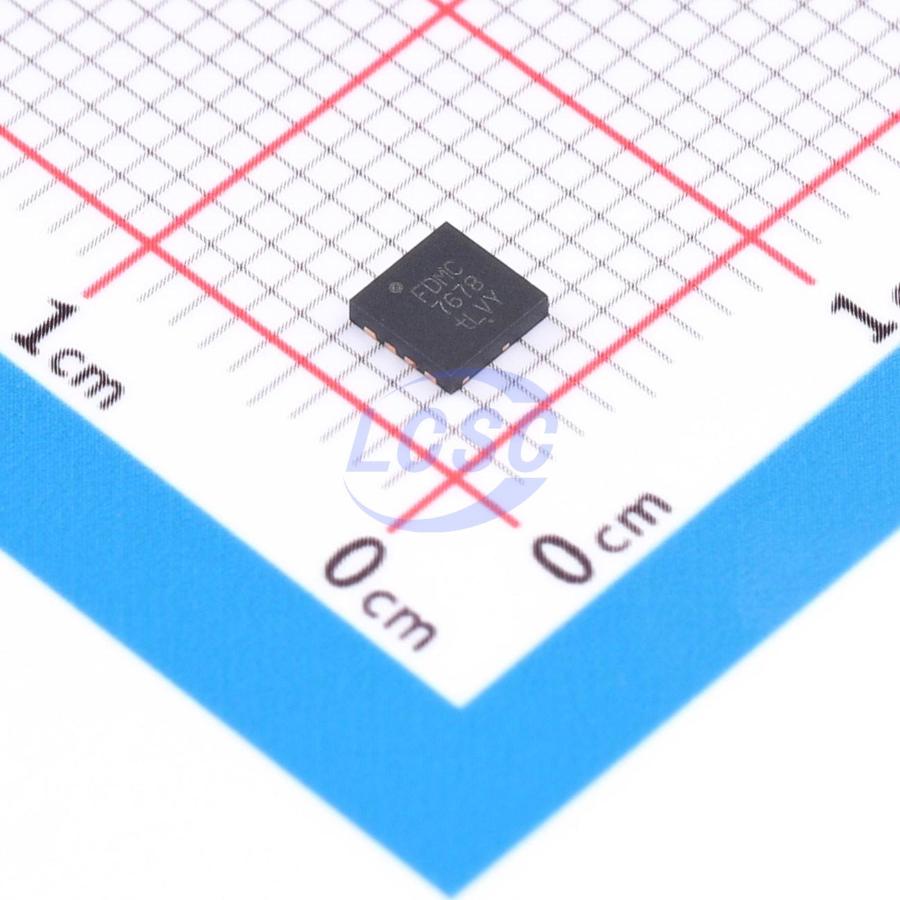

FDMC7678-L701
31W 30V 19.5A 6.8mΩ@4.5V 1 N-channel N-Channel MLP-8(3.3x3.3) Single FETs, MOSFETs RoHS
MLP-8(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC7678-L701
- Store part #
- C3288672
- Package / case
- MLP-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C3288672
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹259.65 | ₹259.65 |
| 10+ | ₹255.14 | ₹2,551.40 |
| 30+ | ₹252.12 | ₹7,563.60 |
| 100+ | ₹249.12 | ₹24,912.00 |
1 × ₹259.65
₹259.65
excl. GST
₹306.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC7678-L701
₹259.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 820pF
- Ciss-Input Capacitance
- 2.41nF
- Pd - Power Dissipation
- 31W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 19.5A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 6.8mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
This N-channel MOSFET is manufactured using an advanced power trench process specifically optimized to minimize on-resistance. The device is well-suited for power management and load switching applications commonly found in laptops and portable battery packs.
Applications
- DC-DC step-down converter
- Notebook battery power management
- Load switch in notebooks
Key features
- Maximum rDS(on) = 5.3 mΩ at VGS = 10 V, ID = 17.5 A
- Maximum rDS(on) = 6.8 mΩ at VGS = 4.5 V, ID = 15.0 A
- High-performance technology for ultra-low rDS(on)
- Lead-free, RoHS compliant
- MLP 3.3x3.3 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MX4007ALR#C22468155Wuxi Maxinmicro · PDFN3333-8L | Wuxi Maxinmicro | PDFN3333-8L | 4,485 | ₹14.58 · 4,485 in stock | View |
 | FH3040G6#C2929017XIN FEI HONG · PDFN3.3x3.3-8L | XIN FEI HONG | PDFN3.3x3.3-8L | 5,155 | ₹10.20 · 5,155 in stock | View |
 | E030N6P0ML1#C29781159Existar · PDFN3.3x3.3-8 | Existar | PDFN3.3x3.3-8 | 700 | ₹14.76 · 700 in stock | View |
 | CMSC075N04#C39840888Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 95 | ₹26.01 · 95 in stock | View |
 | YJQ50N03B#C919567YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 1,080 | ₹30.06 · 1,080 in stock | View |
