onsemiDatasheet (PDF)

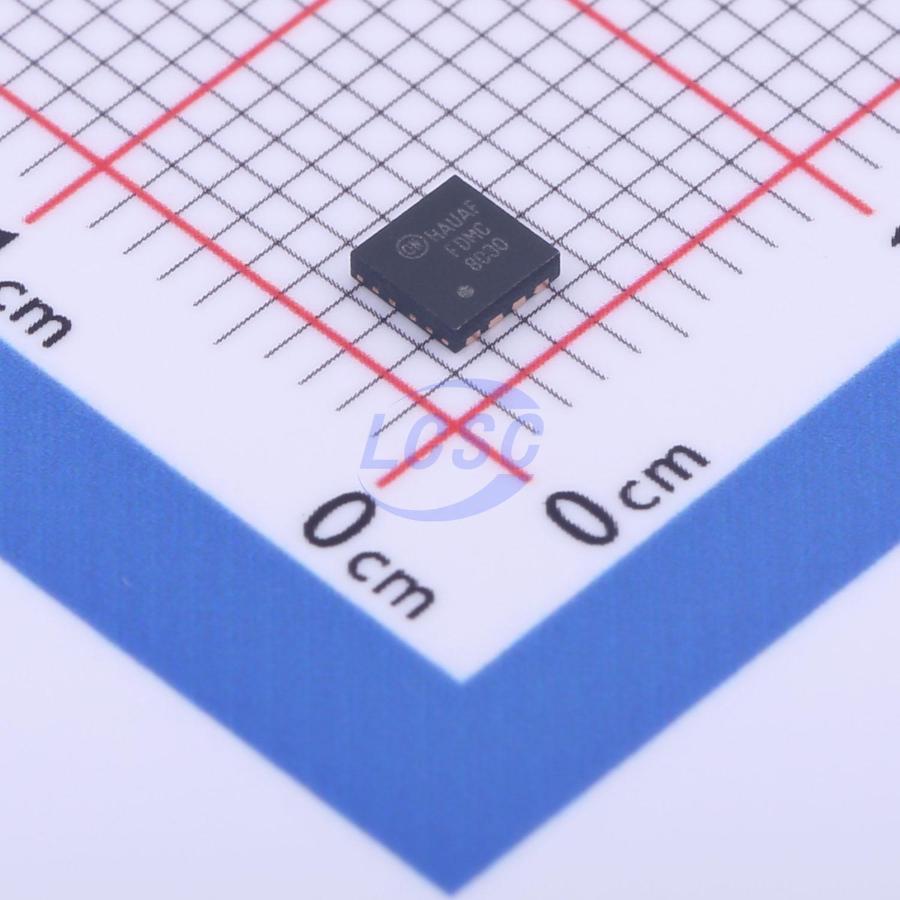

FDMC8030
N-Channel Array 40V 12A 1.9W Surface Mount Power(3x3)
Power(3x3)ROHS3 CompliantActive
MOSFET N-CH ARR 40V 12A Power(3x3)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC8030
- Store part #
- C890952
- Package / case
- Power(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C890952
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.39 | ₹223.39 |
| 10+ | ₹189.70 | ₹1,897.00 |
| 30+ | ₹168.63 | ₹5,058.90 |
| 100+ | ₹142.99 | ₹14,299.00 |
| 500+ | ₹133.21 | ₹66,605.00 |
| 1,000+ | ₹129.09 | ₹1,29,090.00 |
1 × ₹223.39
₹223.39
excl. GST
₹263.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC8030
₹223.39 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 321pF
- Ciss-Input Capacitance
- 1.975nF
- Pd - Power Dissipation
- 1.9W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 28mΩ@3.2V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 21nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
This device includes two 40V N-Channel MOSFETs in a dual Power 33 (3 mm × 3 mm MLI P) package. The package is enhanced for exceptional thermal performance.
Applications
- Battery Protection
- Load Switching
- Point of Load
Key features
- Max rDS(on) = 10 mΩ at VGS = 10 V, ID = 12 A
- Max rDS(on) = 14 mΩ at VGS = 4.5 V, ID = 10 A
- Max rDS(on) = 28 mΩ at VGS = 3.2 V, ID = 4 A
- Termination is Lead-free and RoHS Compliant
