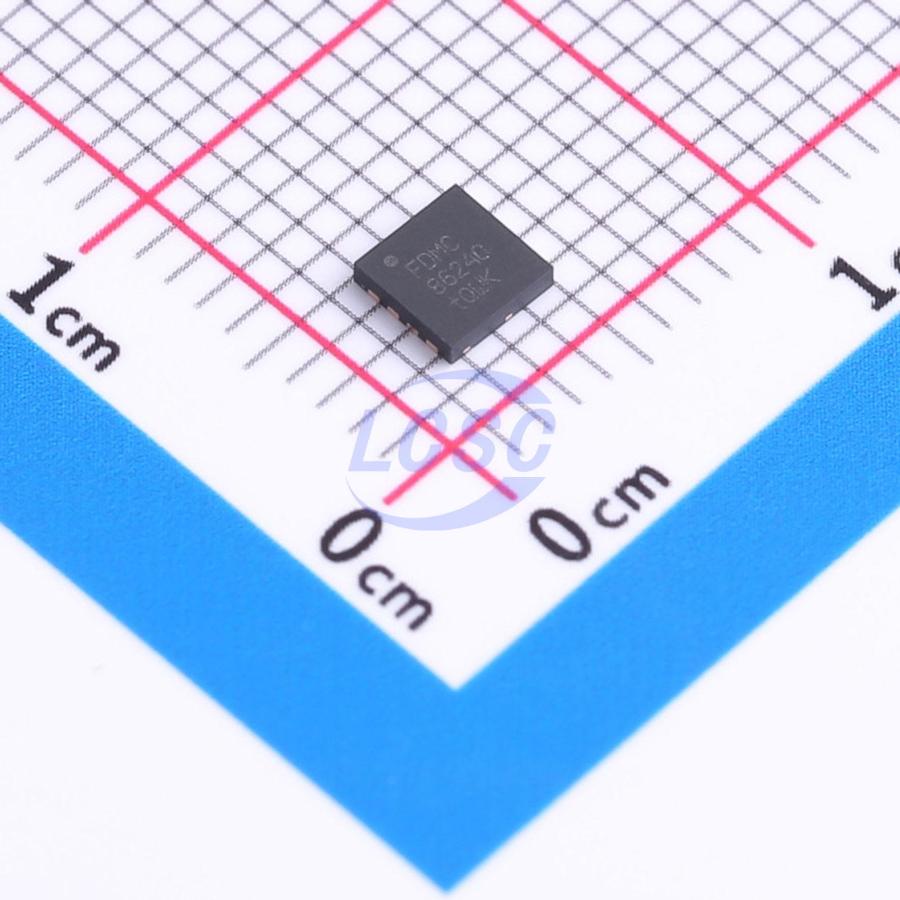

FDMC86240
2.3W 150V 4.6A 41.7mΩ@10V 1 N-channel N-Channel WDFN-8(3.3x3.3) Single FETs, MOSFETs RoHS
WDFN-8(3.3x3.3)ROHS3 CompliantActive
N-Channel Shielded Gate PowerTrench MOSFET
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC86240
- Store part #
- C890966
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3 in stock
#C890966
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹239.42 | ₹239.42 |
| 10+ | ₹233.81 | ₹2,338.10 |
| 30+ | ₹230.14 | ₹6,904.20 |
| 100+ | ₹226.47 | ₹22,647.00 |
1 × ₹239.42
₹239.42
excl. GST
₹282.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC86240
₹239.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 79pF
- Ciss-Input Capacitance
- 680pF
- Pd - Power Dissipation
- 2.3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 4.6A
- Reverse Transfer Capacitance (Crss)
- 4.3pF
- RDS(on)
- 41.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
This N-Channel MOSFET is produced using advanced PowerTrench process that incorporates Shielded Gate technology. This process has been optimized for the on-state resistance and yet maintain superior switching performance.
Applications
- DC - DC Conversion
Key features
- Shielded Gate MOSFET Technology
- Max rDS(on)=51 mΩ at VGS=10 V, ID=4.6 A
- Max rDS(on)=70 mΩ at VGS=6 V, ID=3.9 A
- Low Profile - 1 mm max in Power 33
- 100% UIL Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB15N15A#C54842097HUASHUO · PRPAK-8(3x3) | HUASHUO | PRPAK-8(3x3) | 108 | ₹64.97 · 108 in stock | View |
 | AON7254#C131418AOS · DFN-8(3.3x3.3) | AOS | DFN-8(3.3x3.3) | 23,600 | ₹113.87 · 23,600 in stock | View |
 | CMSC045N15#C41410548Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 5,233 | ₹57.92 · 5,233 in stock | View |
 | SQSA70CENW-T1_GE3#C3289440VISHAY · PowerPAK1212-8W | VISHAY | PowerPAK1212-8W | 57 | ₹148.93 · 57 in stock | View |
 | SISS94DN-T1-GE3#C3279458VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 77 | ₹96.27 · 77 in stock | View |
