HXY MOSFETDatasheet (PDF)

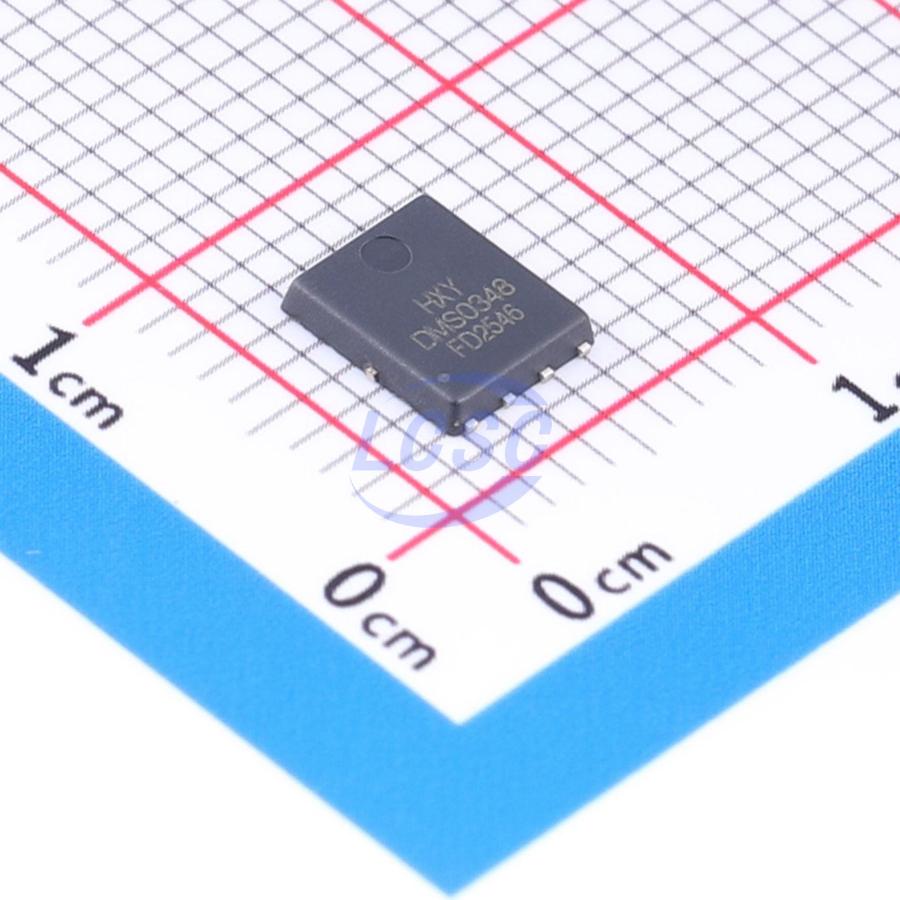

FDMS0348-HXY
59W 30V 60A 5.7mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDMS0348-HXY
- Store part #
- C53263138
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C53263138
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.02 | ₹250.10 |
| 50+ | ₹40.07 | ₹2,003.50 |
| 150+ | ₹35.80 | ₹5,370.00 |
| 500+ | ₹30.48 | ₹15,240.00 |
| 2,500+ | ₹28.10 | ₹70,250.00 |
| 5,000+ | ₹26.68 | ₹1,33,400.00 |
5 × ₹50.02
₹250.10
excl. GST
₹295.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FDMS0348-HXY
₹250.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 267pF
- Ciss-Input Capacitance
- 2.295nF
- Pd - Power Dissipation
- 59W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 5.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.143 g
