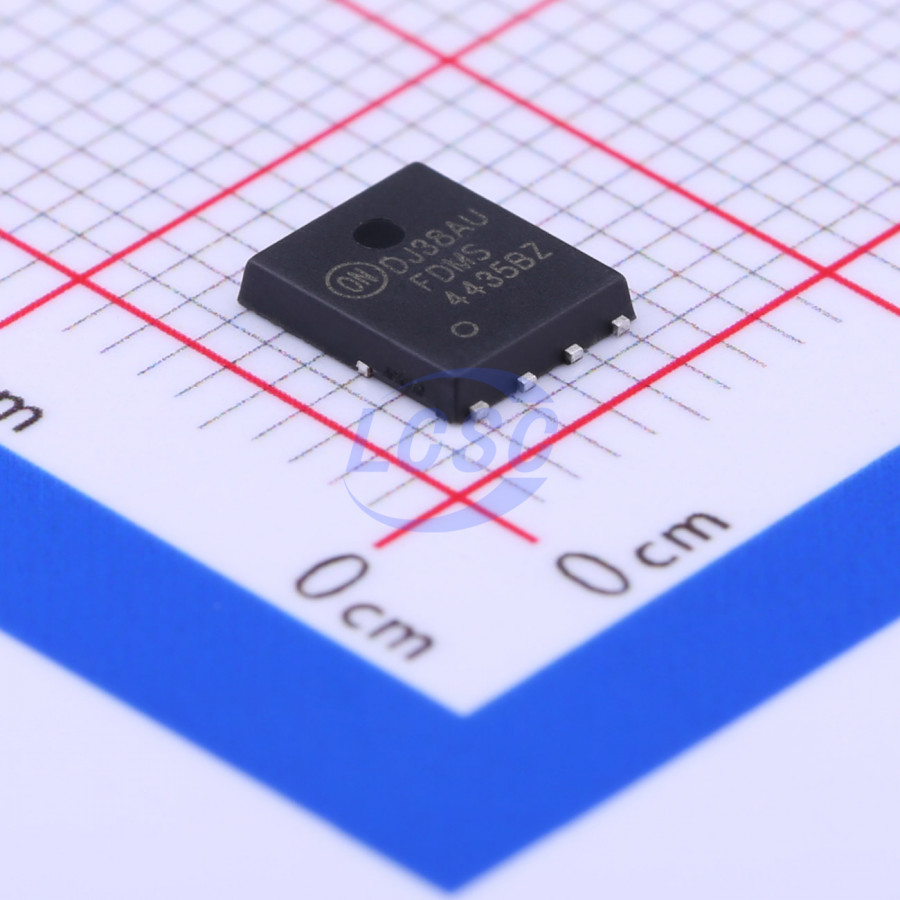

FDMS4435BZ
P-Channel 30V 18A 39W Surface Mount PQFN-8(5x6)
PQFN-8(5x6)ROHS3 CompliantActive
MOSFET P-CH 30V 18A PQFN-8(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS4435BZ
- Store part #
- C352873
- Package / case
- PQFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C352873
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.44 | ₹147.44 |
| 10+ | ₹119.47 | ₹1,194.70 |
| 30+ | ₹105.59 | ₹3,167.70 |
| 100+ | ₹91.94 | ₹9,194.00 |
| 500+ | ₹83.69 | ₹41,845.00 |
| 1,000+ | ₹79.37 | ₹79,370.00 |
1 × ₹147.44
₹147.44
excl. GST
₹173.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS4435BZ
₹147.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 2.05nF
- Pd - Power Dissipation
- 39W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 385pF
- RDS(on)
- 37mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 47nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Overview
This P-Channel MOSFET is produced using advanced Power Trench® process that has been especially tailored to minimize the on-state resistance. This device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery Packs.
Applications
- High side in DC-DC Buck Converters
- Notebook battery power management
- Load switch in Notebook
Key features
- Max rDS(on) = 20 mΩ at VGS = -10 V, ID = -9.0 A
- Max rDS(on) = 37 mΩ at VGS = -4.5 V, ID = -6.5 A
- Extended VGSS range (-25 V) for battery applications
- High performance trench technology for extremely low rDS(on)
- High power and current handling capability
- HBM ESD protection level > 7 kV typical
- 100% UIL tested
- Termination is Lead-free and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA3105#C45385124HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 95 | ₹31.42 · 95 in stock | View |
 | FDMS86263P#C455156onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | 974 | ₹128.66 · 974 in stock | View |
 | FDMS86163P#C469176onsemi · PQFN-8(4.9x5.8) | onsemi | PQFN-8(4.9x5.8) | On request | ₹306.50 · 0 in stock | View |
 | IRFH9310TRPBF#C89841Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 7 | ₹219.02 · 7 in stock | View |
| FDMS86263P-23507X#C3279624onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | On request | ₹184.35 · 0 in stock | View | |
