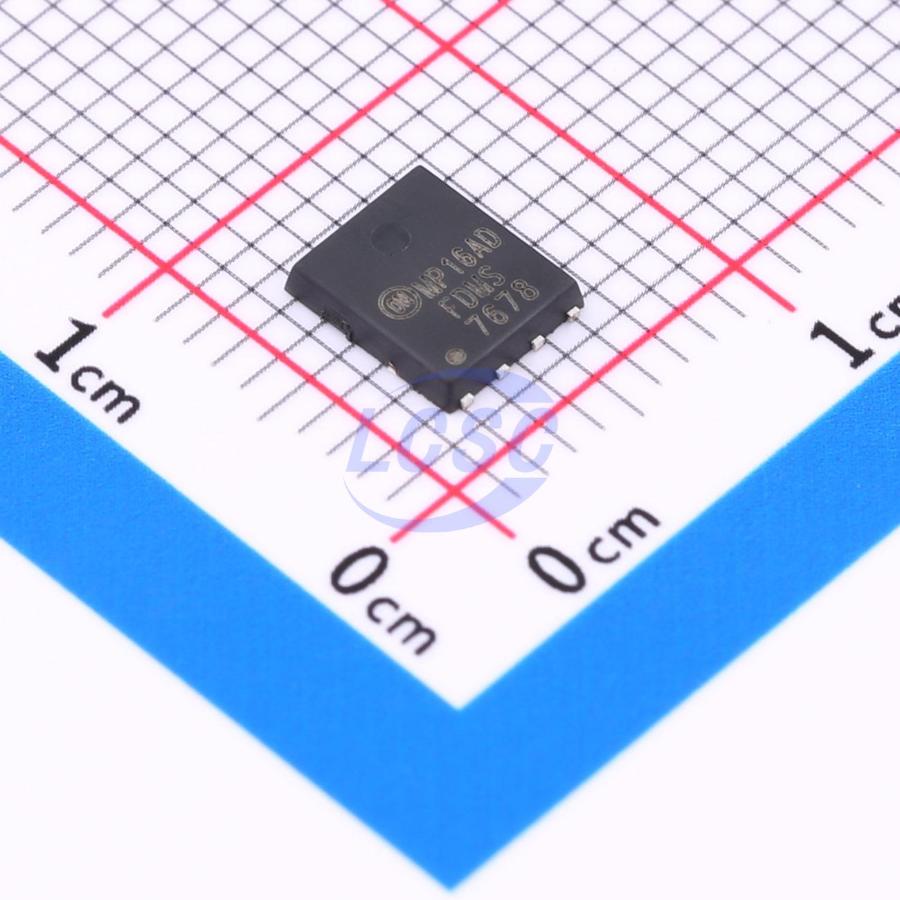

FDMS7678
30V 26A 41W Surface Mount Power-56-8
Power-56-8ROHS3 CompliantActive
MOSFET 30V 26A Power-56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS7678
- Store part #
- C462742
- Package / case
- Power-56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C462742
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.59 | ₹163.59 |
| 10+ | ₹160.00 | ₹1,600.00 |
| 30+ | ₹157.68 | ₹4,730.40 |
| 100+ | ₹155.36 | ₹15,536.00 |
1 × ₹163.59
₹163.59
excl. GST
₹193.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS7678
₹163.59 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 620pF
- Ciss-Input Capacitance
- 2.41nF
- Pd - Power Dissipation
- 41W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 26A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 5.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
This N-channel MOSFET is manufactured using an advanced power trench process specifically designed to minimize on-resistance. The device is well-suited for power management and load switching applications commonly found in laptop computers and portable battery packs.
Applications
- DC-DC step-down converter
- Notebook battery power management
- Load switch in notebooks
Key features
- Maximum r<sub>DS(on)</sub> = 5.5 mΩ at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 17.5 A
- Maximum r<sub>DS(on)</sub> = 6.8 mΩ at V<sub>GS</sub> = 4.5 V, I<sub>D</sub> = 15 A
- High-performance technology with ultra-low r<sub>DS(on)</sub>
- Lead-free terminals
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIR464DP-T1-GE3#C469518VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 2,846 | ₹82.77 · 2,846 in stock | View |
 | PTN3006#C692864PUOLOP · PDFN5x6-8 | PUOLOP | PDFN5x6-8 | 1,595 | ₹21.51 · 1,595 in stock | View |
 | AGM310A#C5367082AGMSEMI · PDFN5x6-8L | AGMSEMI | PDFN5x6-8L | 5 | ₹11.59 · 5 in stock | View |
 | SM6426D1RL#C496524SPS · DFN-8-EP(6.1x5.2) | SPS | DFN-8-EP(6.1x5.2) | 132 | ₹63.28 · 132 in stock | View |
 | APG032N04G#C5443668ALLPOWER · PDFN5x6-8 | ALLPOWER | PDFN5x6-8 | 5,035 | ₹77.17 · 5,035 in stock | View |
