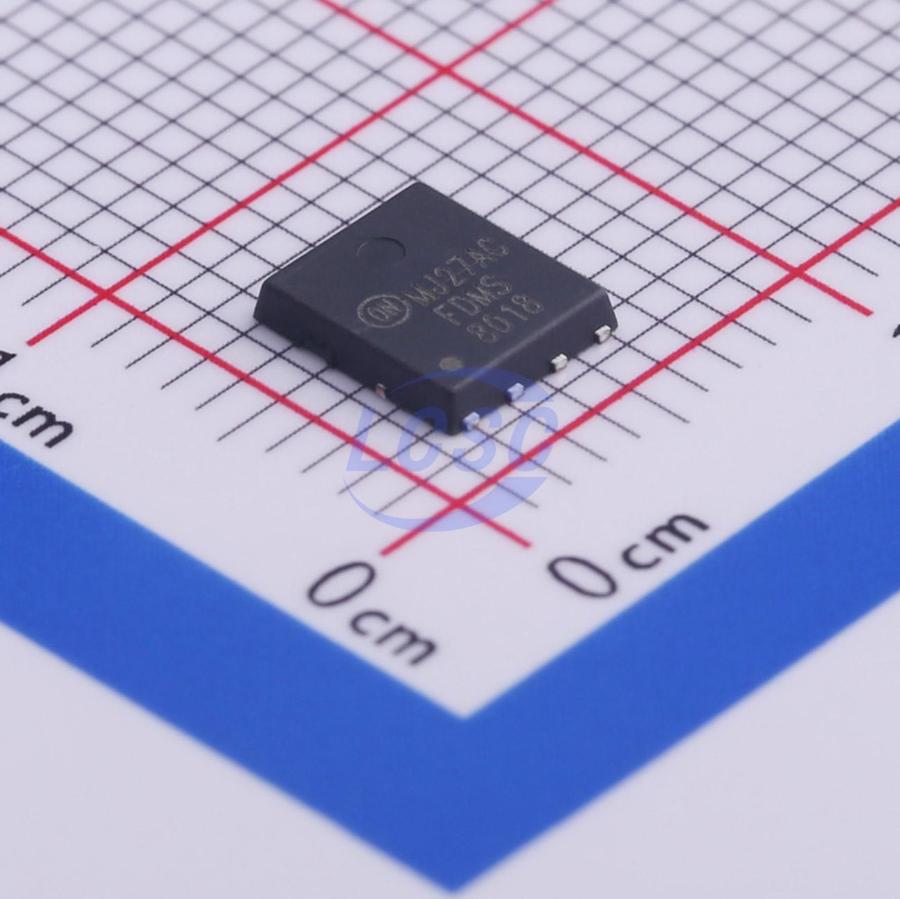

FDMS8018
N-Channel 30V 175A 83W Surface Mount Power-56-8
Power-56-8ROHS3 CompliantActive
MOSFET N-CH 30V 175A Power-56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS8018
- Store part #
- C464161
- Package / case
- Power-56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C464161
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹197.95 | ₹197.95 |
| 10+ | ₹161.99 | ₹1,619.90 |
| 30+ | ₹142.37 | ₹4,271.10 |
| 100+ | ₹120.13 | ₹12,013.00 |
| 500+ | ₹110.31 | ₹55,155.00 |
| 1,000+ | ₹105.73 | ₹1,05,730.00 |
1 × ₹197.95
₹197.95
excl. GST
₹233.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS8018
₹197.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.38nF
- Ciss-Input Capacitance
- 5.235nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 175A
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 1.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 58nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.121 g
Overview
This N-Channel MOSFET has been designed specifically to improve the overall efficiency and to minimize switch node ringing of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(on), fast switching speed ang body diode reverse recovery performance.
Applications
- VRM Vcore Switching for Desktop and Server
- OringFET / Load Switching
- DC-DC Conversion
- Motor Bridge Switch
Key features
- Maximum rDS(on) = 1.8 mΩ at VGS = 10 V, ID = 30 A
- Maximum rDS(on) = 2.4 mΩ at VGS = 4.5 V, ID = 26 A
- Advanced package and silicon combination for low RDS(ON) and high efficiency
- Next-generation enhanced body diode technology for soft recovery
- Robust MSL1 package design
- 100% UIL1 tested
- RoHS compliant
