onsemiDatasheet (PDF)

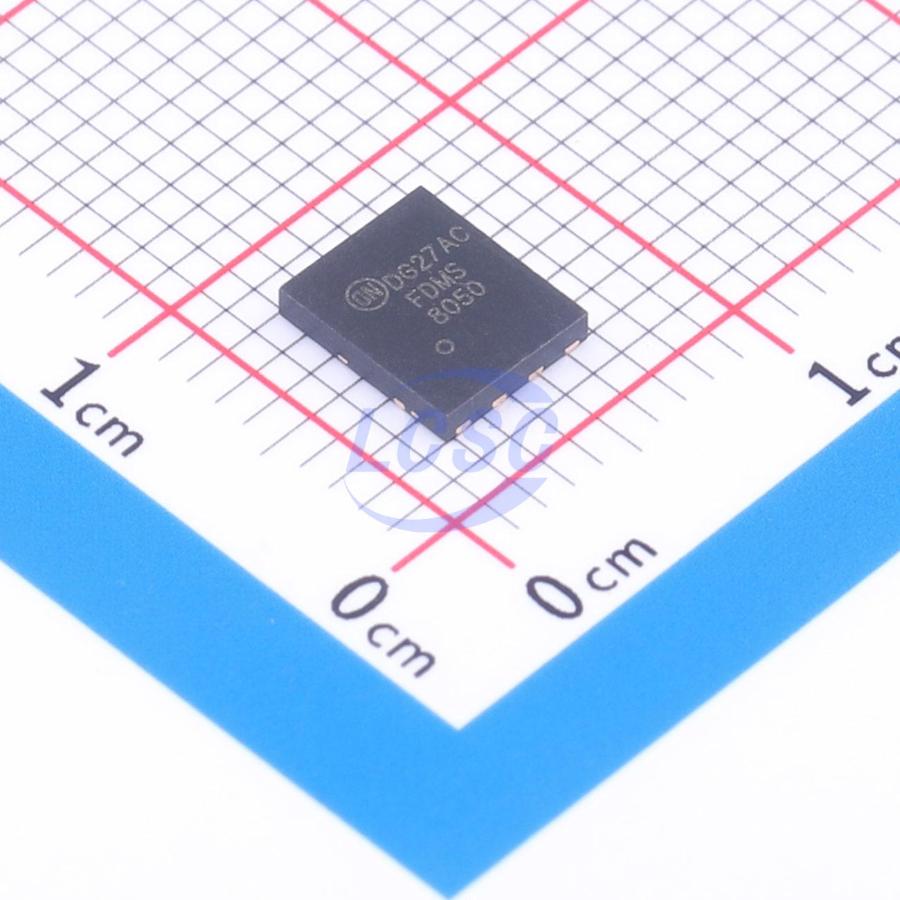

FDMS8050
30V 200A 156W 0.65mΩ@10V 1 N-channel Power-56-8 Single FETs, MOSFETs RoHS
Power-56-8ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS8050
- Store part #
- C463000
- Package / case
- Power-56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C463000
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹969.59 | ₹969.59 |
| 10+ | ₹947.41 | ₹9,474.10 |
| 30+ | ₹932.65 | ₹27,979.50 |
| 100+ | ₹917.87 | ₹91,787.00 |
1 × ₹969.59
₹969.59
excl. GST
₹1,144.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS8050
₹969.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 200A
- Ciss-Input Capacitance
- 22.61nF
- Pd - Power Dissipation
- 156W
- Reverse Transfer Capacitance (Crss)
- 310pF
- RDS(on)
- 0.65mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 285nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.64 g
Overview
This N-channel MOSFET is designed to improve overall efficiency and minimize switching node ringing in DC/DC converters using synchronous or conventional switching PWM controllers. It is optimized for low gate charge and ultra-low rDS(on).
Applications
- Ideal Diode MOSFET
- Synchronous Rectifier
Key features
- Maximum r DS(on) = 0.65 mΩ at V GS = 10 V, I D = 55 A
- Maximum r DS(on) = 0.9 mΩ at V GS = 4.5 V, I D = 47 A
- Advanced package and silicon combination for low r DS(on) and high efficiency
- MSL1 robust package design
- 100% UII tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP30N01GNP#C48888446Siliup · PDFN5X6-8L | Siliup | PDFN5X6-8L | 98 | ₹100.15 · 98 in stock | View |
 | SP40N01AGNP#C22385414Siliup · PDFNWB-8L(5x6) | Siliup | PDFNWB-8L(5x6) | 8,419 | ₹109.43 · 8,419 in stock | View |
| FDMS8050ET30#C891080onsemi · Power-56-8 | onsemi | Power-56-8 | 8 | ₹818.49 · 8 in stock | View | |
 | NVMFS5C410NLWFAFT1G#C900423onsemi · SO-8FL | onsemi | SO-8FL | 23 | ₹583.93 · 23 in stock | View |
 | HYG011N04LS2C2#C42388505HUAYI · PDFN-8L(5x6) | HUAYI | PDFN-8L(5x6) | 5,155 | ₹79.94 · 5,155 in stock | View |
